June 2014
4-57
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.36
Repairs
Replacement
NOTE: Make sure the post on the Separation Pad is positioned inside the Spring (Figure 3).
Install the components in the reverse of removal.

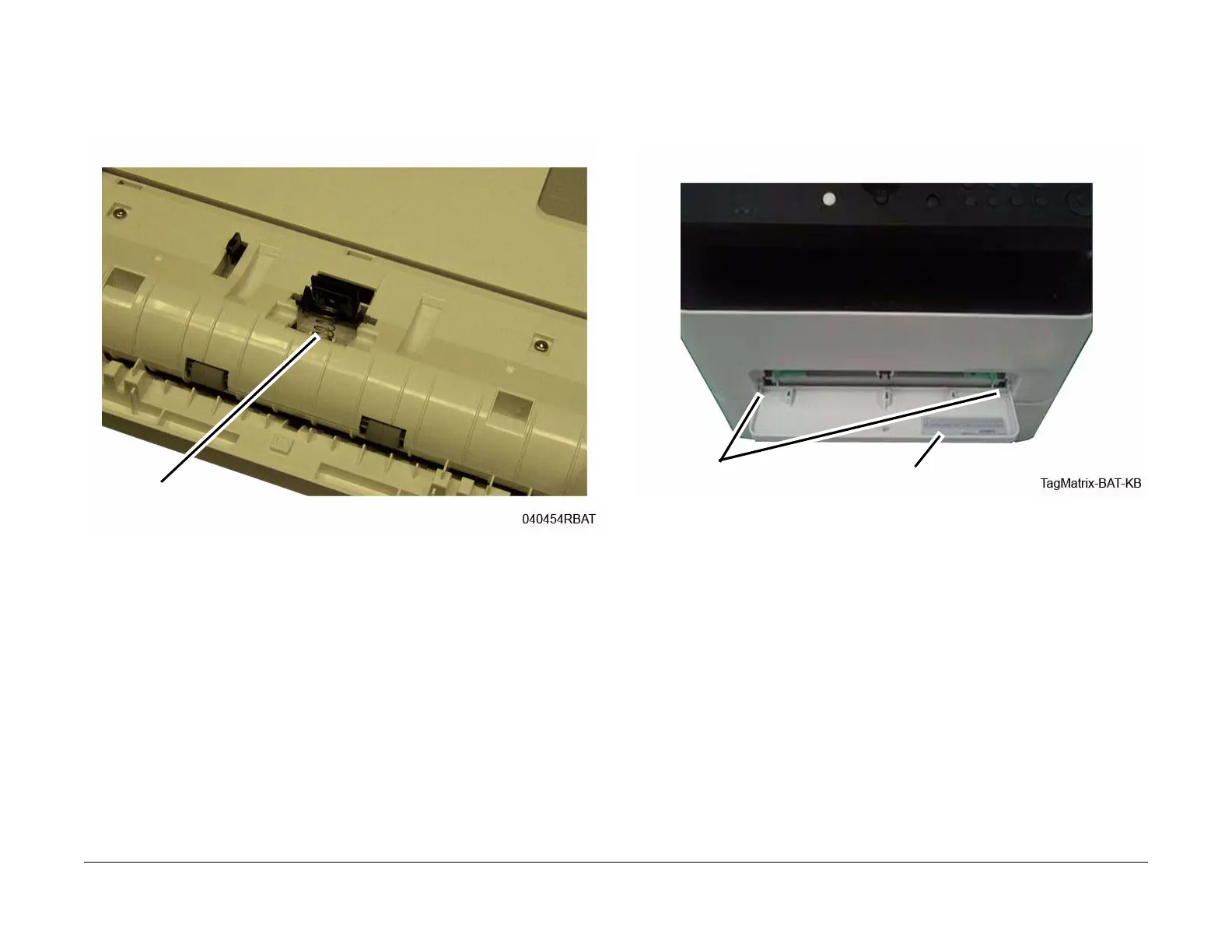

Figure 3 Separation Pad Spring (Top View)
REP 1.36 Manual Feed Cover
Parts List on PL 2.1
Removal
1. Remove the Manual Feed Cover, release it from the pivots (2) (Figure 1).
Figure 1 Manual Feed Cover (Top View)
Replacement
1. Remove the Tag Matrix from the old cover and install it on to the new Manual Feed Cover
(Figure 1).
Install the components in the reverse of removal.
Spring
Pivots
Tag Matrix
To Next Page
