Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 5.2
Parts Lists

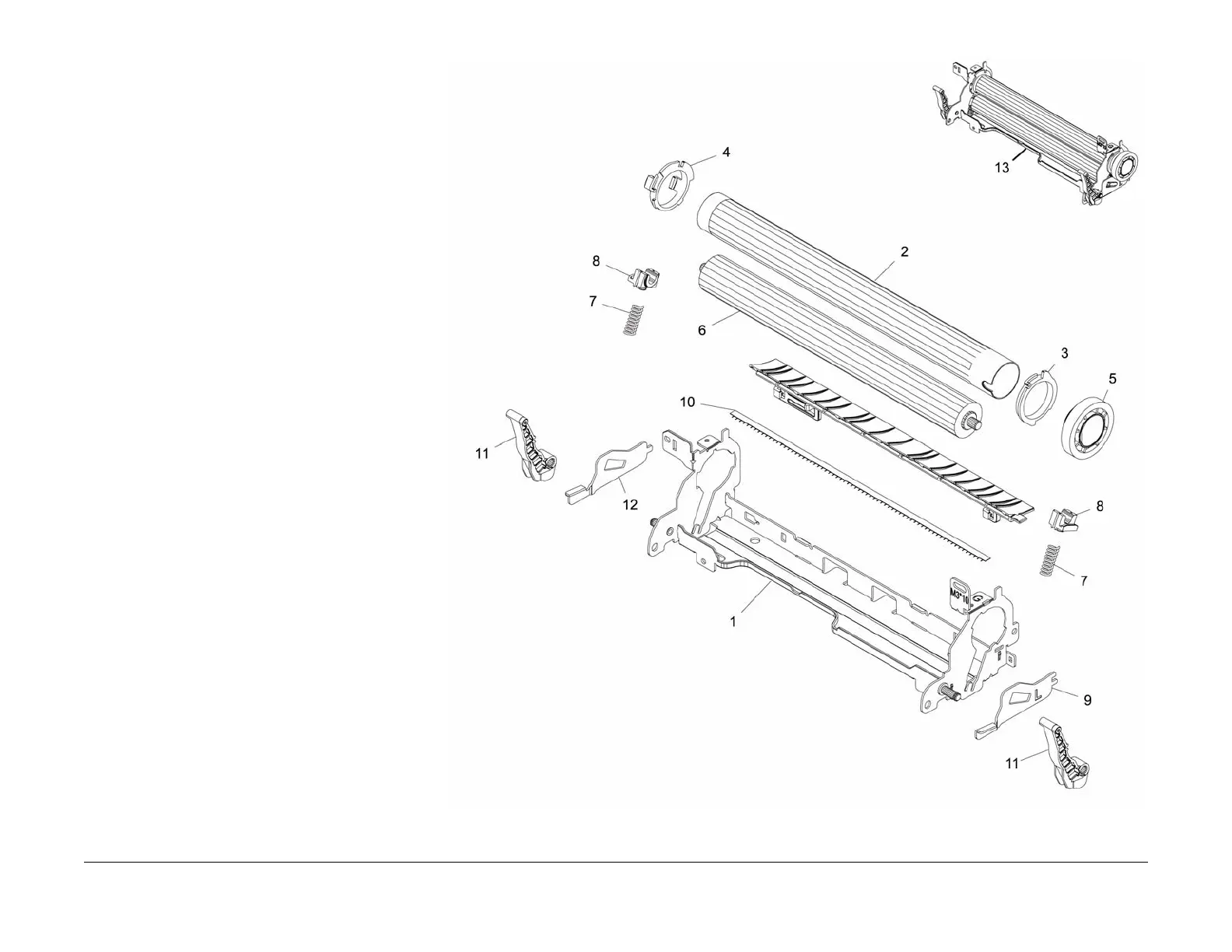

PL 5.2 Lower Fuser
Item Part Description
1 – Fuser Frame
2 – Heat Roller
3 – Left Bushing
4 – Right Bushing
5 – Gear
6 – Roller
7– Spring
8– Bushing
9 – Left Jam Lever Link
10 – Antistatic Brush
11 – Jam Lever
12 – Paper Guide Holder
13 – Lower Fuser Assembly
