Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.23
Repairs
3. Disconnect the connector and lift the ADF off of the Printer (Figure 2).

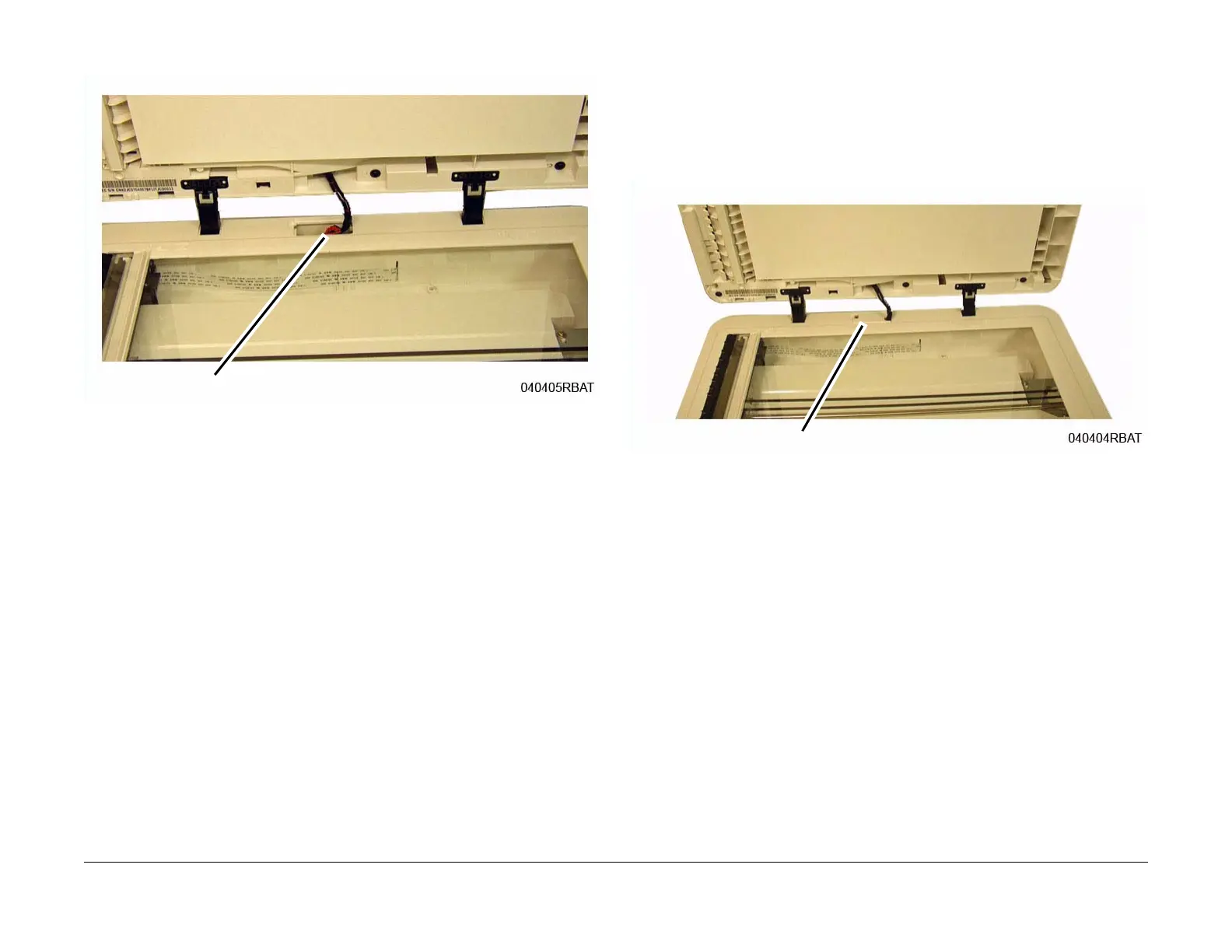

Figure 2 ADF Connector
Replacement
Install the components in the reverse of removal.
REP 1.23 ADF Hinges
Parts List on PL 1.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Open and lift the ADF up.
Unlatch and remove the Connector Cover (Figure 1).
Figure 1 ADF Connector Cover
3. Disconnect the connector and lift the ADF off of the Printer (Figure 2).
ADF Connector
ADF Connector Cover
