Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.1
Repairs
REP 1.1 Front Cover and Manual Feed Cover
Parts List on PL 2.1
Removal
1. Switch Off the Printer and disconnect the Power Cord.
2. Remove the Left and Right Side Covers (REP 1.2).

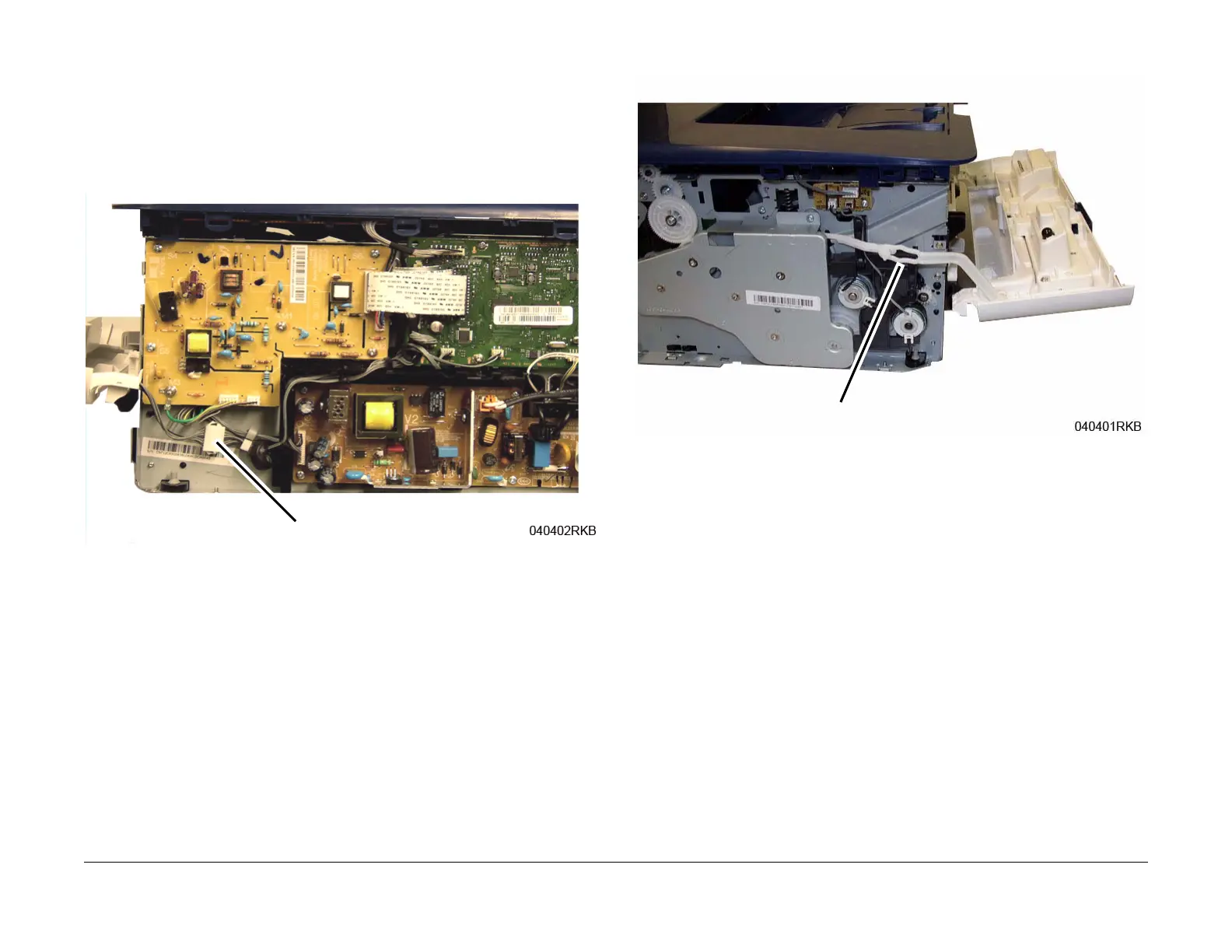

3. Disconnect the wire harness to the Front Cover (Figure 1).
Figure 1 Front Cover P/J Connector
4. Disconnect the Front Cover Support Arm (Figure 2).
Figure 2 Front Cover Support Arm
Connector
Front Cover Support Arm
