Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.3
Repairs
REP 1.3 Middle Covers
Parts List on PL 2.2
Removal
1. Remove the Left and Right Side Covers (REP 1.2).
2. Remove the ADF Module (REP 1.28).
3. Remove the Rear Cover (REP 1.4).
4. If the printer has a WiFi PWB, disconnect the WiFi connector on the Main PWB (Figure 1).

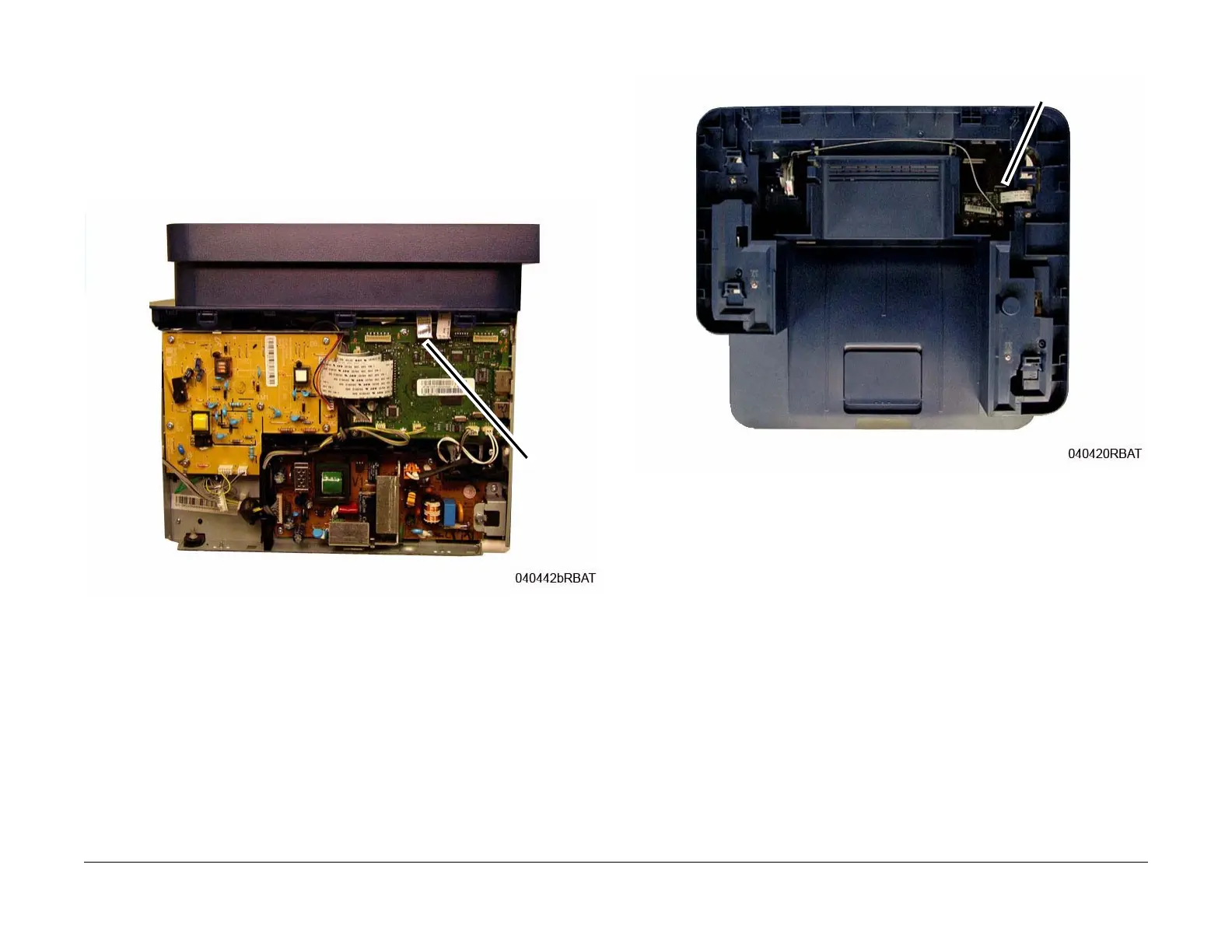

Figure 1 Wireless (WiFi) Connector
5. Disconnect the FAX PWB connector (Figure 2).
Figure 2 FAX PWB Connector (Top View)
Connector
Connector
