June 2014
4-21
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.11
Repairs
REP 1.11 LSU and Cables
Parts List on PL 4.1
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Middle Cover (REP 1.3).
3. To replace the LSU Cables: (Figure 1).
• Disconnect the cable connector at the LSU.
• Disconnect the cable connector at the Main PWB.

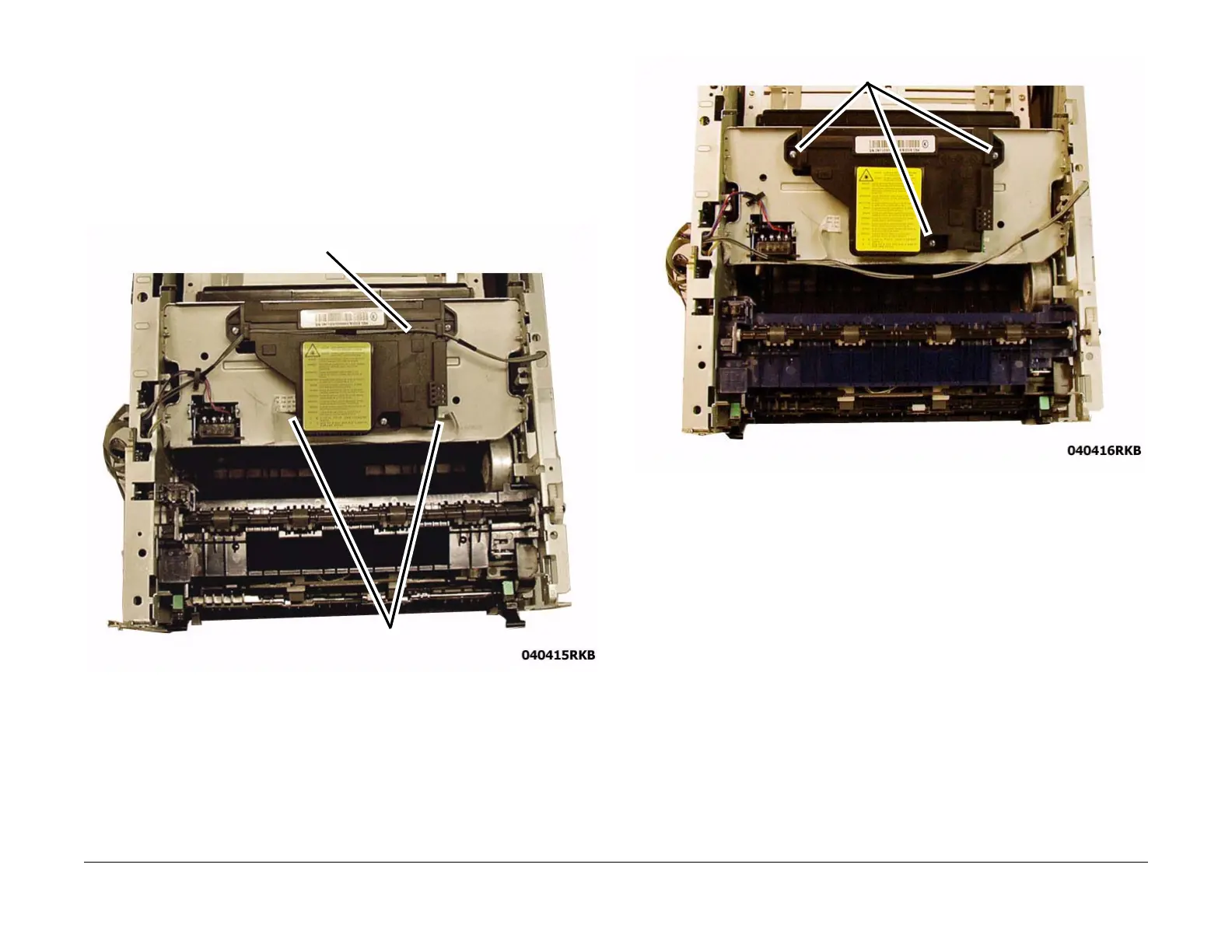

Figure 1 LSU Cable Connectors and Wire Harness (Top View)
NOTE: The Flat Cable may be adhered to the LSU. Detach it from the LSU and reinstall it
on the new LUS in the same location.
4. Removing the LSU:
a. Release the wire harness from the top of the LSU.
Disconnect the connectors (2) at the LSU (Figure 1).
b. Remove the screws (3), and the LSU (Figure 2).
Figure 2 LSU Removal
Replacement
Install the components in the reverse of removal.
LSU Connectors
Wire Harness
Screws
To Next Page
