Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
PL 2.1
Parts Lists

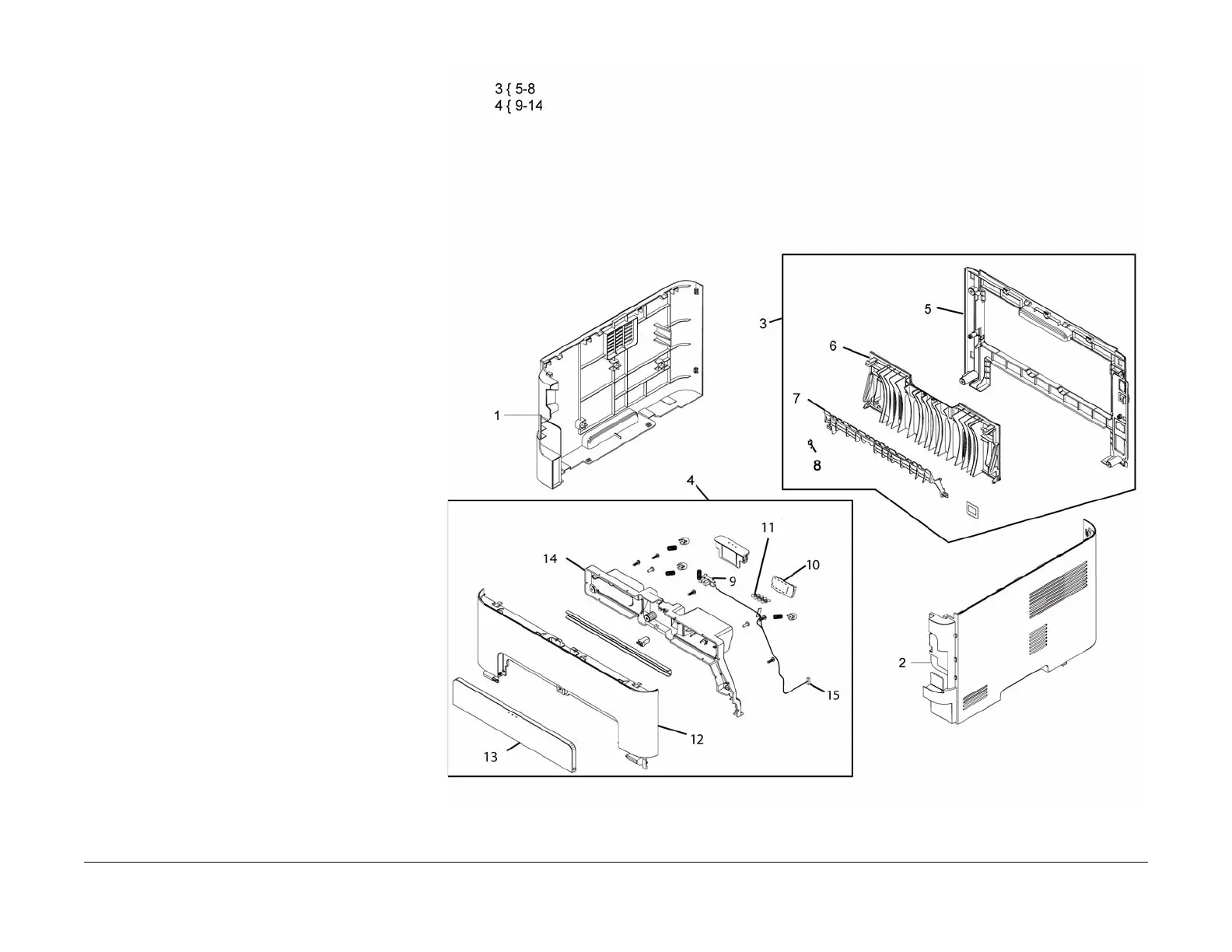

PL 2.1 Covers
Item Part Description
1 002N03167 Left Cover
2 002N03182 Right Cover
3 002N03172 Rear Cover Assembly
4 002N03175 Front Cover Assembly
5 – Rear Cover
6 – Exit Paper Guide
7 – Duplex Gate
8– Spring
9 – Front Cover Latched Sensor
10 – CRUM PWB
11 – CRUM Contacts
12 – Front Cover
13 – Manual Cover
14 – Front Harness Cover
15 – CRUM Harness
