4-32
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.22
Repairs
REP 1.21 FAX PWB
Parts List on PL 2.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the ADF / ISM Module (REP 1.28).
3. Remove the Fax PWB (Figure 1):
a. Disconnect the connectors (2).
b. Remove the screws (4) and the PWB.
c. Remove the cover from the PWB.

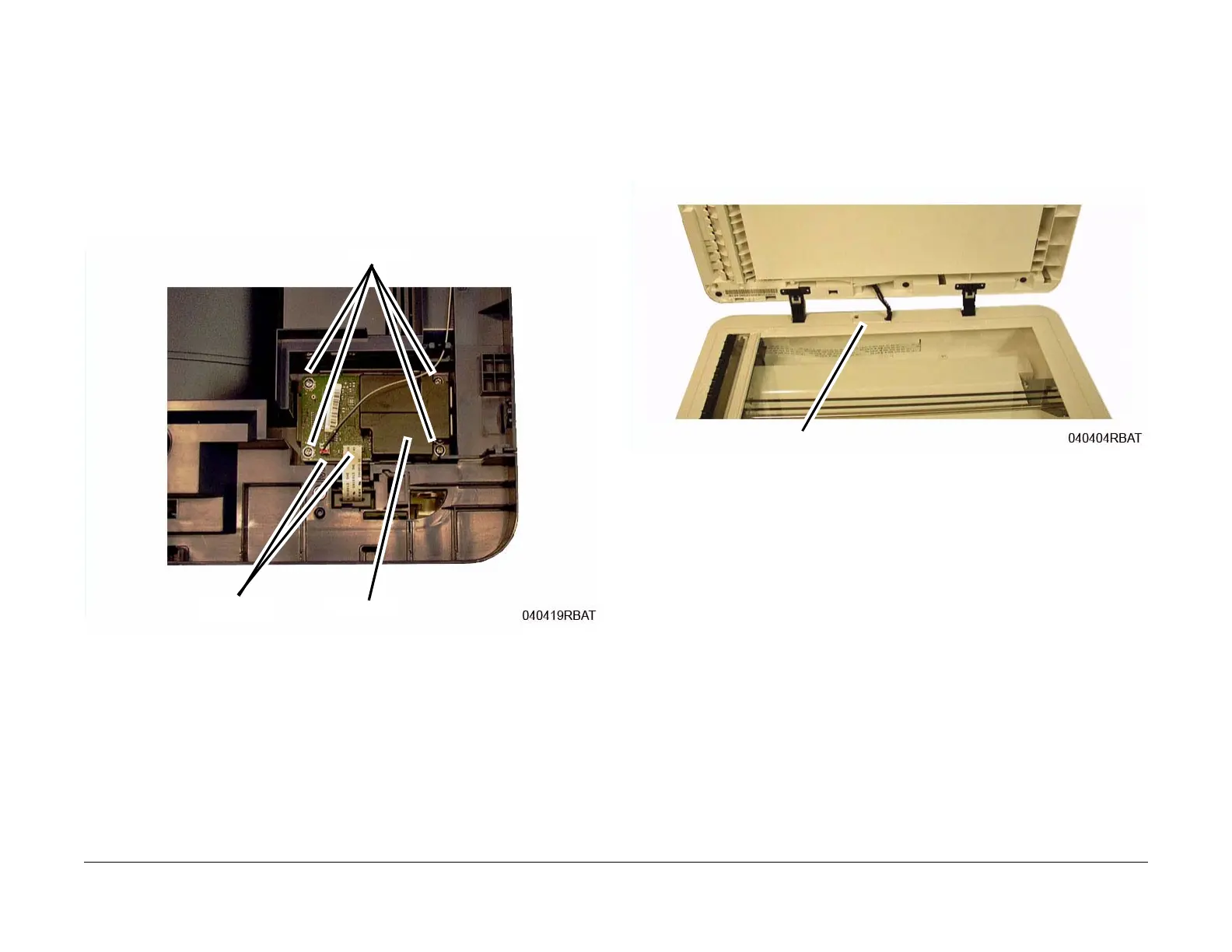

Figure 1 FAX PWB (Top View)
Replacement
Install the components in the reverse of removal.
REP 1.22 Automatic Document Feeder (ADF)
Parts List on PL 1.2
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Open and lift the ADF up.
Unlatch and remove the Connector Cover (Figure 1).
Figure 1 ADF Connector Cover
Screws
Connectors
Cover
ADF Connector Cover
