Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
IQ12
Image Quality RAPs
IQ12 Partial Image Deletions RAP
Areas of the printed image are light or missing entirely on limited areas of the paper (Figure 1).
Initial Actions
Be sure the printer is installed on a level surface.
Procedure
Procedure
• Switch Off the Power.
• Remove the Toner Cartridge.
• Rotate the Toner Cartridge side to side for 5 to 6 full rotations to redistribute the toner.
• Reinstall and print 10 test copies.
The problem continues.
YN
Go to Call Closeout.
Switch Off the Power.
Check the Transfer Roller, PL 4.1 for the following:
• Wear or damage.
• The left and right tension springs for damage.
• Be sure all parts are installed correctly.

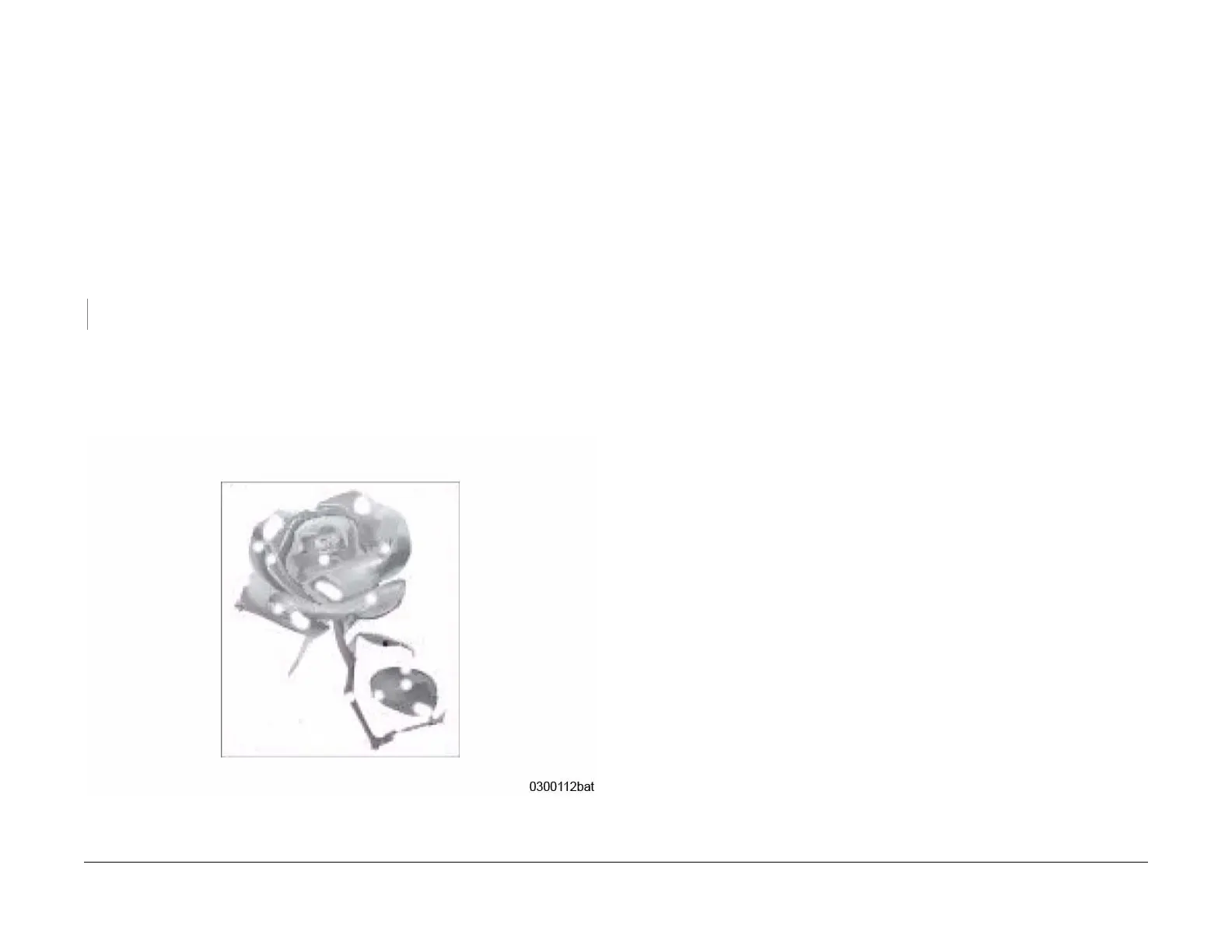

Figure 1 Image Deletions
To Next Page
