June 2014
4-47
Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.34
Repairs
6. Unlatch the WNPC PWB from the underside of the Middle Cover and remove it (Figure 2).

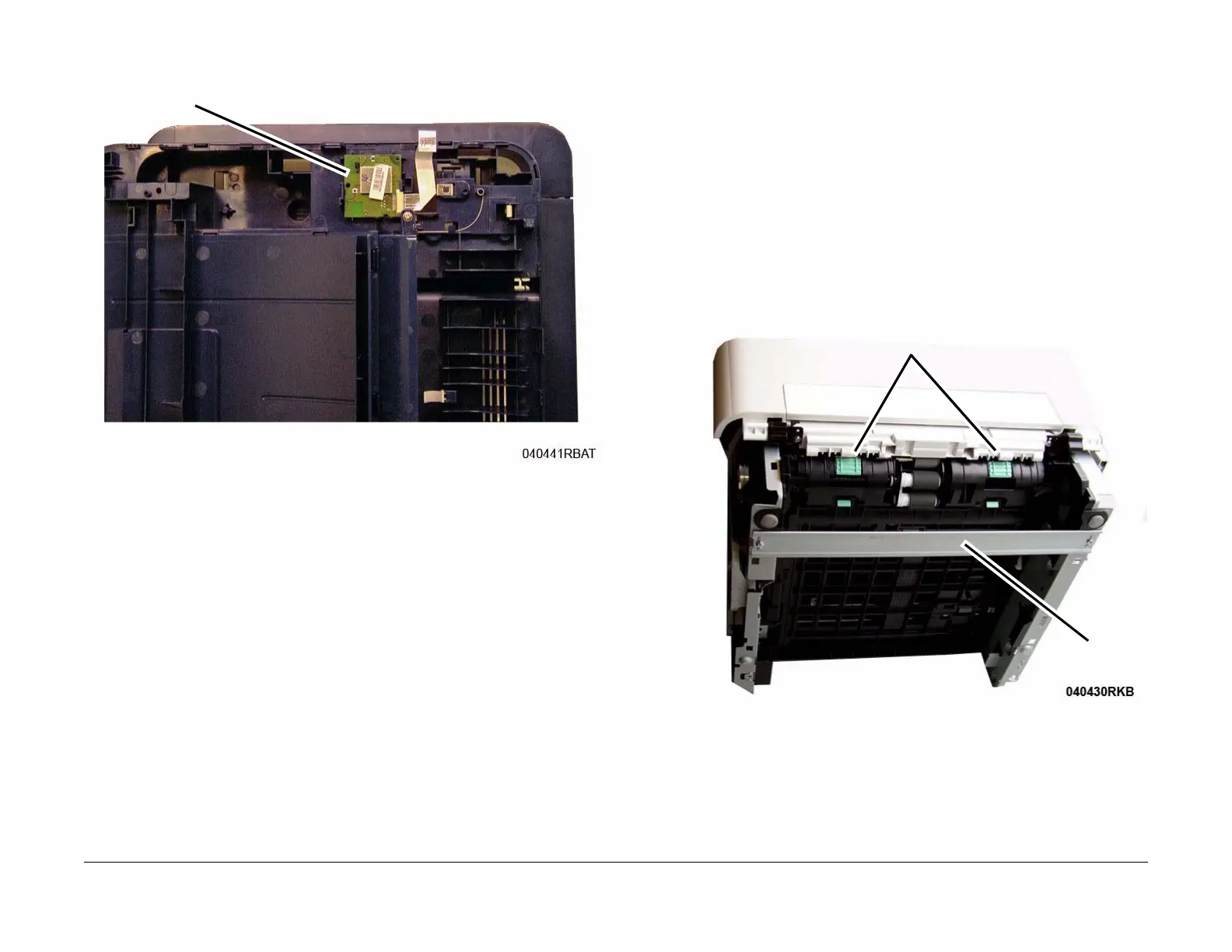

Figure 2 WNPC PWB (Middle Cover Bottom View)
Replacement
Install the components in the reverse of removal.
REP 1.34 Registration Roll
Parts List on PL 4.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the following covers:
a. The Left and Right Side Covers (REP 1.2).
b. The Front Cover (REP 1.1).
c. The Rear Cover (REP 1.4).
3. Remove the Middle Cover (REP 1.3).
4. Remove the Bottom Bar and Duplex Module (Figure 1).
a. Remove the screws (2) and the Bottom Bar.
b. Press the Green Tabs (2) to unlatch the Duplex Paper Guide.
Remove the Duplex Paper Guide through the rear of the printer.
Figure 1 Bottom Bar and Duplex Paper Guide (Bottom View)
5. Remove the Fuser Module (REP 1.17).
WNPC PWB
Duplex Tabs
Bottom Bar
To Next Page
