Xerox® WorkCentre® 3215/3225 Multifunction Printer Service Manual
REP 1.14
Repairs
REP 1.14 Paper Feed Sensors PWB and Actuators
Parts List on PL 4.4
Removal
1. Switch Off the Printer and unplug the Power Cord.
2. Remove the Duplex Paper Guide (REP 1.18).
3. Set the printer on the Rear Cover (Front of printer facing up).
4. Remove the Bottom Bar (2 screws) (Figure 1).

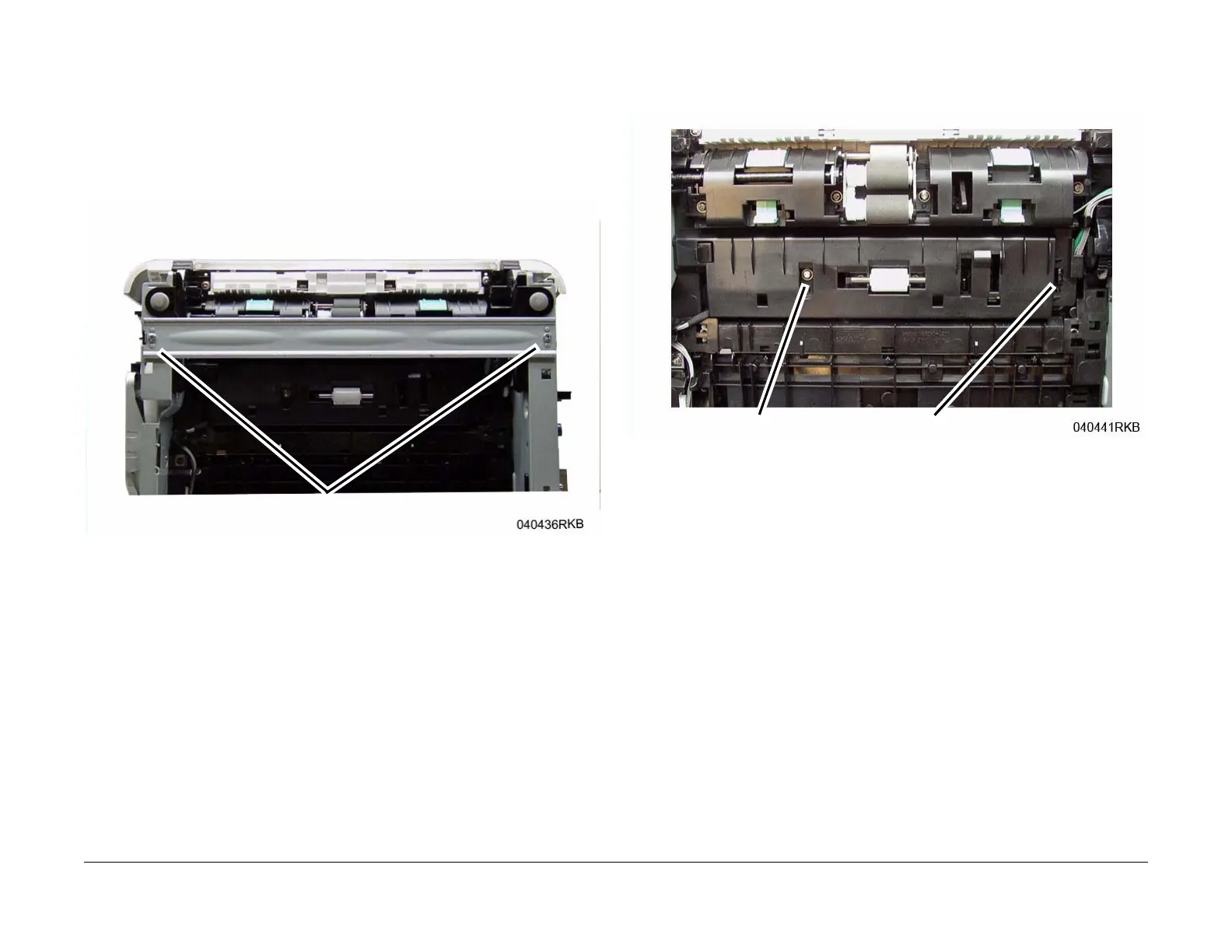

Figure 1 Bottom Bar (Bottom View)
5. Remove the Paper Feed Sensor PWB Cover (Figure 2).
a. Remove the screw (1).
b. Release the Latch and remove the cover.
Figure 2 Feed Sensors PWB Cover (Bottom View)
Screws
Screw
Latch
