Input and output patching
Reference Manual
15
Changing the input patch settings
NOTE
• You can also select an input port from the GAIN/PATCH window.
• The OVERVIEW screen appears when you press a USER DEFINED key to which OVERVIEW is
assigned.

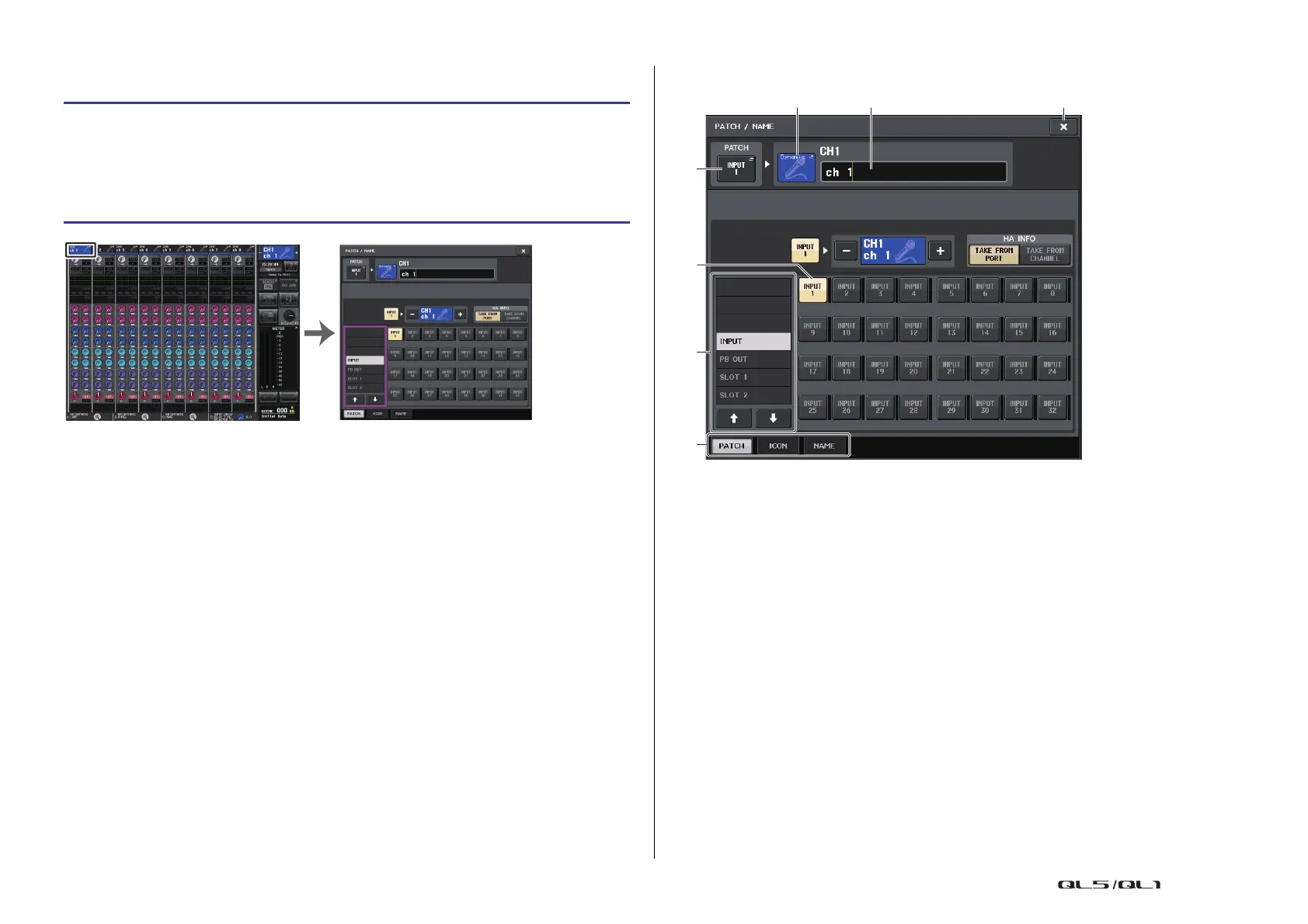

PATCH/NAME screen
1 PATCH button
Indicates the currently-selected input port. If you press this button when selecting an
icon or changing the channel name, you will return to the input port select screen.
2 Channel icon button
Indicates the icon that is selected for the corresponding channel. When you press this
button, a screen will appear in which you can select an icon or sample name.
3 Channel name input box
Indicates the name that is assigned to the corresponding channel. When you press this
field, a keyboard window allowing you to change the channel name will appear.
STEP
1.
Press the Bank Select keys in the Fader Bank section and the [SEL] keys on the top
panel to select the input channel you want to operate.
2. Press the channel number/channel name field on the OVERVIEW screen.
3. Select the type of port in the category select list on the PATCH/NAME screen, and
use the port select buttons to select the input port.
OVERVIEW screen PATCH/NAME screen
To Next Page
