OUTPUT channels
Reference Manual
51
Correcting delay between channels (Output Delay)
This Output Delay function is useful when you want to correct the timing of output signals sent
to speakers that are located at a distance from each other.

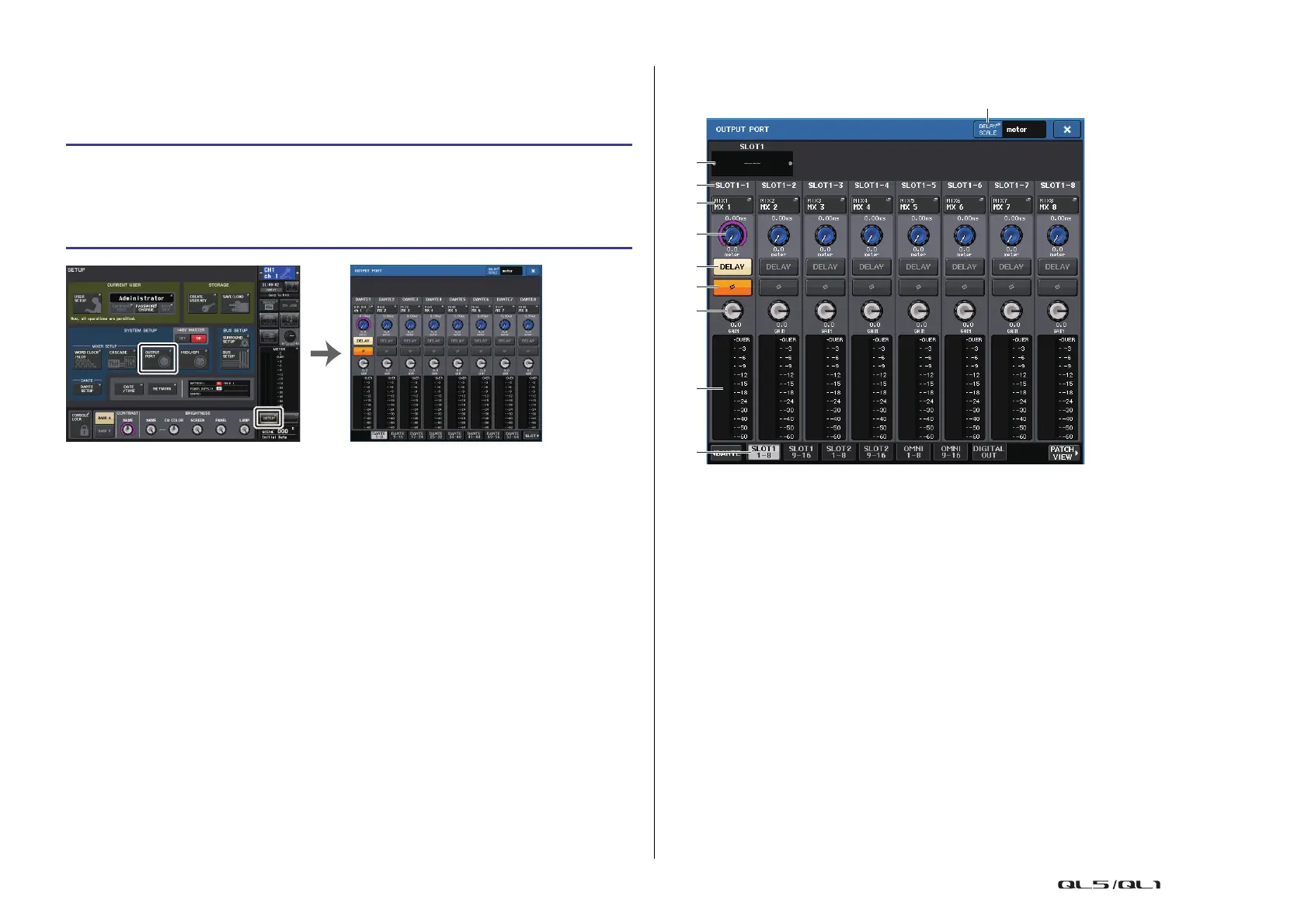

OUTPUT PORT screen
1 Slot number/Card type
If an output channel of slot 1–2 is selected for operations, this area indicates the slot
number and the type of I/O card installed in that slot.
2 DELAY SCALE button
Press this button to open the DELAY SCALE window, in which you can select the unit for
the delay time.
3 Output Port
This is the type and number of the output port to which the channel is assigned.
4 Channel select button
Enables you to select the channel that you want to assign to the output port. The name
of the currently-selected channel is displayed.
5 Delay time knob
Sets the delay time of the output port. Press the knob to select it, and then operate the
[TOUCH AND TURN] knob. The millisecond delay time value is indicated above the
knob, and the delay time value in the units selected in the DELAY SCALE window is
indicated below the knob.
NOTE
If you have selected ms (millisecond) as the scale, the delay time value will not appear above the
knob.
STEP
1. In the Function Access Area, press the SETUP button.
2. Press the OUTPUT PORT button in the SYSTEM SETUP field located in the center of the
SETUP screen.
3. Specifies the delay time, and turns on the DELAY button.
SETUP screen OUTPUT PORT screen
2
1
3
4
5
6
7
8
9
0

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
