Yamaha QL5 Reference Manual

Input channels
Reference Manual
44

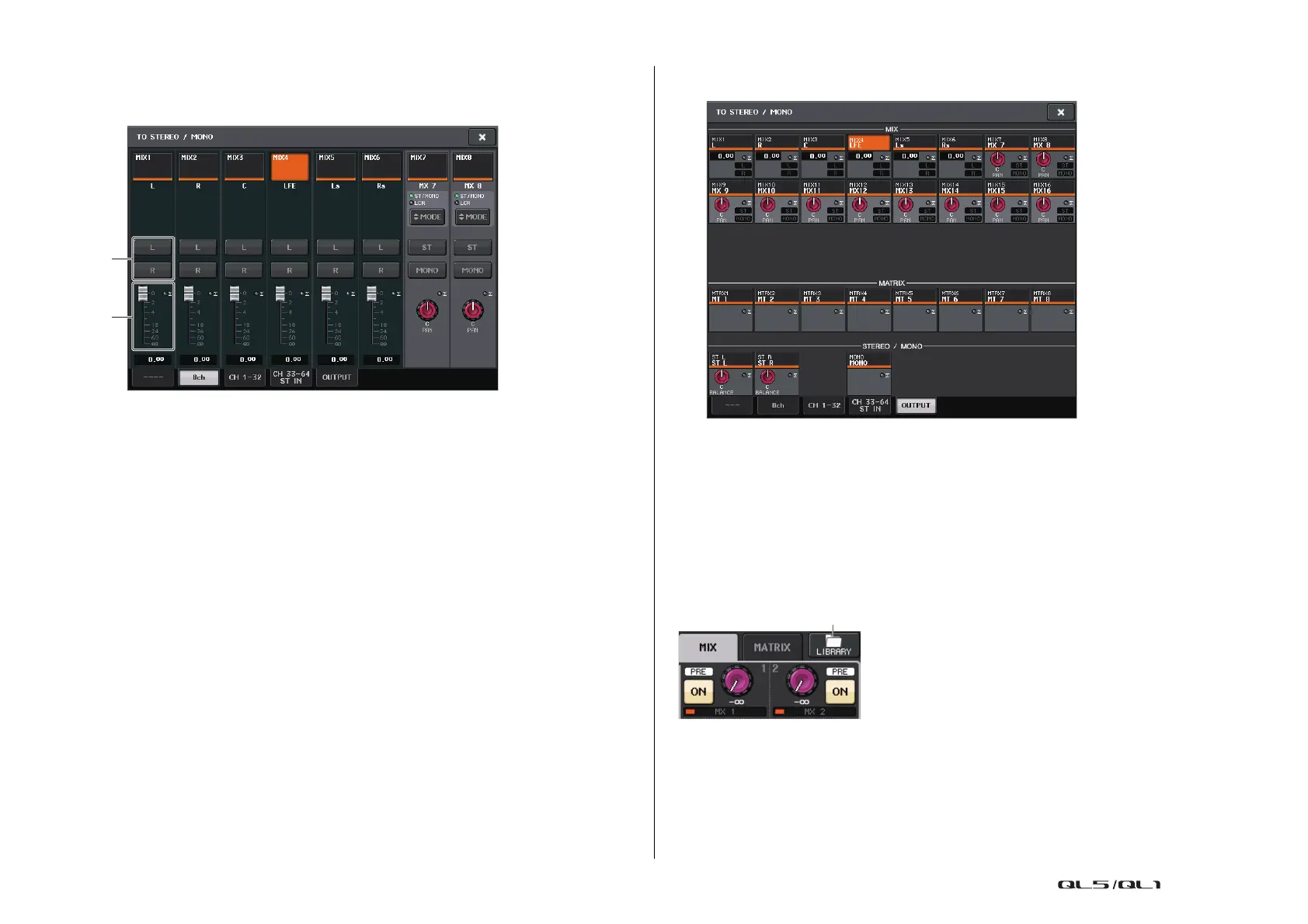

TO STEREO/MONO screen
If you set a bus to Surround mode in BUS SETUP, the TO STEREO/MONO 8CH screen for
MIX 1-8 appears as shown below. MIX 1-6 are for setting downmixes.
1 L/R buttons
Use these buttons to set the output destination.
2 Coefficient Setting fader
Use this fader to set the downmix coefficient. There is a ∑ clip indicator.
The TO STEREO/MONO OUTPUT screen appears as shown below. Parameters cannot be
set for MIX 1 - 6; this screen is only for displaying parameters.
Channel library operations
Channel libraries include “INPUT CHANNEL LIBRARY,” which enables you to store and recall
various parameters (including the head amp settings) for input channels.
To recall a library, press the corresponding LIBRARY button in the SELECTED CHANNEL
VIEW screen. For details on using the library, refer to the “Using the libraries” section in the
separate Owner’s Manual.
2
1
LIBRARY button

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
