Yamaha QL5 Reference Manual

Input channels
Reference Manual
32
6 TO ST PAN/TO ST BALANCE knob
For an INPUT channel (monaural), this acts as a PAN knob that adjusts the left/right
panning of signals sent to the STEREO bus. For a ST IN channel (stereo), this acts as a
PAN knob, and also as a BALANCE knob that adjusts the volume of the left and right
signals sent to the STEREO bus. To adjust the value, press the knob to select it, and then
operate the [TOUCH AND TURN] knob.
7 Tabs
Enable you to switch between windows.
8 LCR button
If the MODE button is set to LCR mode, this button is displayed instead of 4. This
button is an overall on/off button for signals sent from a channel to the STEREO bus and
MONO bus. If this button is off, no signals will be sent from the corresponding input
channel to the STEREO bus or MONO bus.
9 CSR knob
Adjusts the relative level of signals sent from the channel to the STEREO (L/R) bus and
to the MONO (C) bus, in the range of 0–100%. To adjust the value, press the knob to
select it, and then operate the [TOUCH AND TURN] knob (page 33).

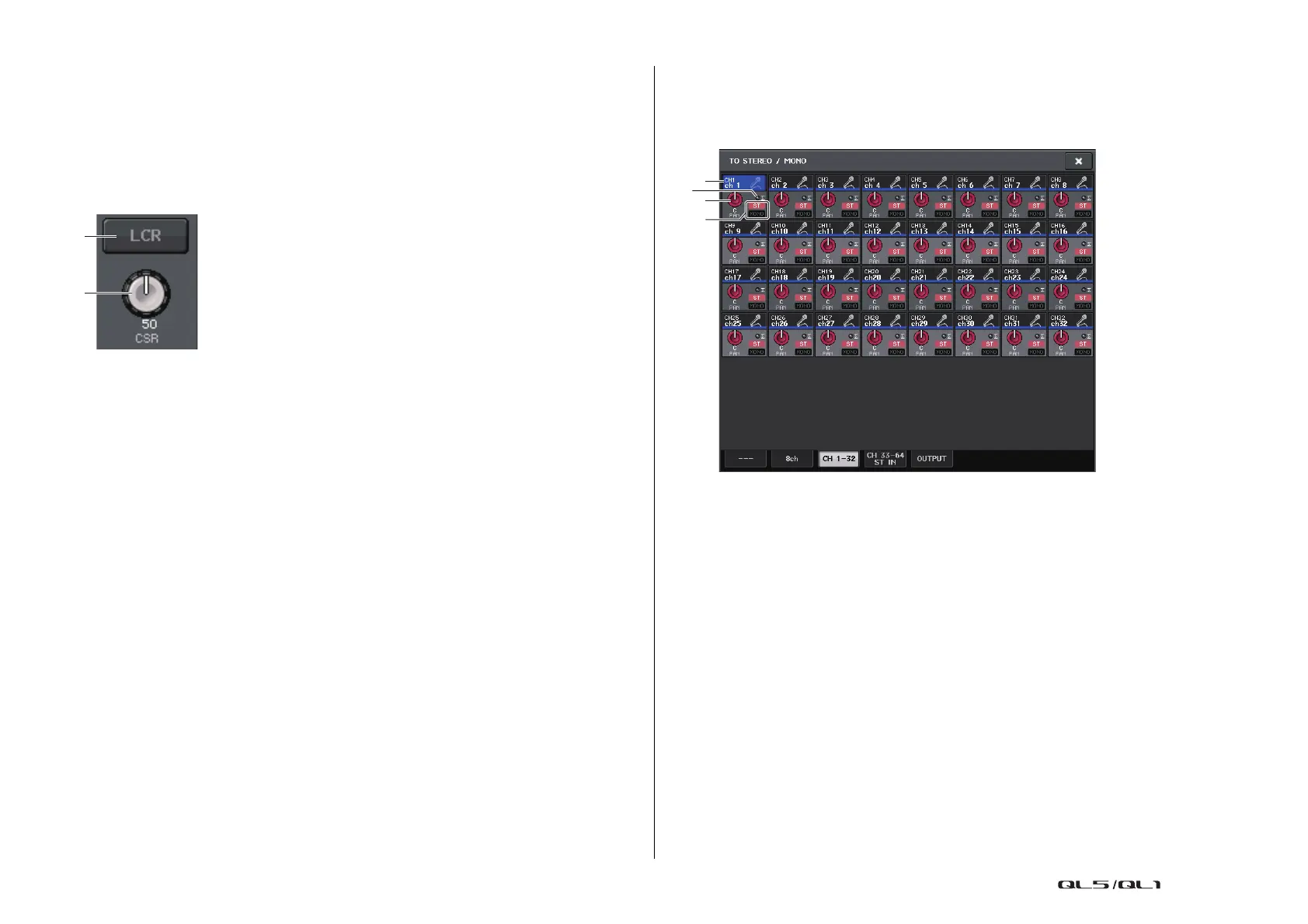

TO STEREO/MONO window
(CH1–32, CH33–64/ST IN (QL5), ST IN (QL1))
Adjusts the status of a signal sent from the corresponding input channel to the STEREO/
MONO bus. You can also adjust the selected pan or balance setting.
1 Channel select button
Selects the channel. You can select multiple channels simultaneously.
2 Σ clipping indicator
Lights to indicate a signal is clipping at some point in the channel.
3 TO ST PAN/TO ST BALANCE knob
Adjusts the panning or balance.
To adjust the value, press the knob to select it, and then operate the [TOUCH AND
TURN] knob.
If the signal reaches the overload point at any meter detection point in that channel,
the Σ indicator to the right of the knob will light.
4 ST/MONO indicator
If a channel is set to ST/MONO mode, these indicators will individually indicate the on/
off status of signals sent from the channel to the STEREO bus/MONO bus.
If that channel is set to LCR mode, the LCR indicator will be displayed in this location.
The LCR indicator indicates the on/off status of all signals sent from that channel to the
STEREO bus/MONO bus.
8
9
1
2
3
4

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
