Yamaha QL5 Reference Manual

Input channels
Reference Manual
38
2 Channel select button
The currently-selected input channel is indicated in blue. Press the button to select the
channel.
3 Delay setting knob (input channels only)
Use the [TOUCH AND TURN] knob to set the delay value. You can view the current value
immediately above the knob (always shown in unit of ms) and below the knob (shown
using the currently-selected scale). If ms (millisecond) has been selected for the DELAY
SCALE, nothing will appear above the knob.
4 DELAY ON button
Switches the delay on or off.
5 Tabs
Enable you to switch between windows.
6 Close button
Closes the window.

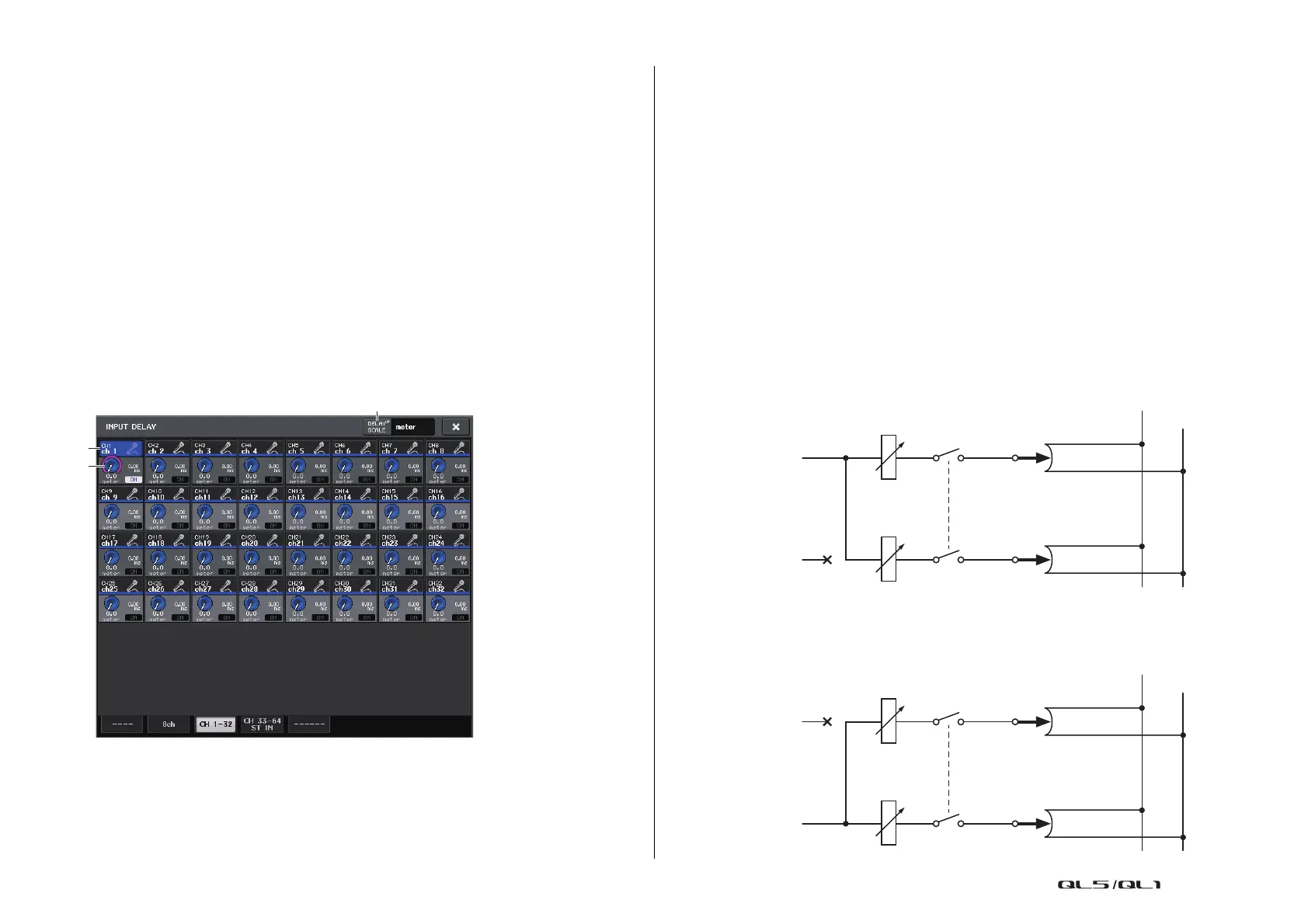

INPUT DELAY (CH1–32, CH33–64/ST IN (QL5), ST IN (QL1))
1 DELAY SCALE button
Press the button to display the DELAY SCALE window, in which you can select the unit
for the delay time.
2 Channel select button
Lights to indicate the currently-selected input channel. Press the button to select the
channel.
3 Delay setting knob (input channels only)
Use the [TOUCH AND TURN] knob to set the value. You can view the current value
immediately beside the knob (always shown in unit of ms) and below the knob (shown
using the currently-selected scale).
NOTE
If ms (millisecond) has been selected for the DELAY SCALE, nothing will appear to the right of
the knob.
Additional functions for stereo input channels
With V3, you can temporarily set the signals sent to a stereo input channel as mono. You can
select from the following three settings.
 L-MONO
Only the L channel is temporarily set as a mono signal.
 R-MONO
Only the R channel is temporarily set as a mono signal.
1
2
3
STEREO IN Lch
STEREO IN Rch
STEREO R
STEREO L
ON
ON
PAN/BAL
PAN/BAL
STEREO IN Lch
STEREO IN Rch
STEREO R
STEREO L
ON
ON
PAN/BAL
PAN/BAL
