Yamaha QL5 Reference Manual

OUTPUT channels
Reference Manual
52
6 DELAY button
Switches the output port delay on or off.
7 Ø (Phase) button
Switches the phase of the signal assigned to the output port between normal phase
(black) and reverse phase (yellow).
8 GAIN knob
Adjusts the output gain of the output port. To adjust this value, press the knob on screen
to select it, and then operate the [TOUCH AND TURN] knob. Rotate the knob to set the
value in 1.0 dB steps. Rotate the knob while pressing and holding it down to set the
value in 0.1 dB steps. The current value appears immediately below the knob.
9 Level meter
Indicates the level of the signal assigned to the output port.
0 Tabs
Switch the output ports controlled in groups of up to eight ports. Tabs are categorized
into three groups: DANTE, SLOT, and PATCH VIEW. To display tabs in the desired group,
press the group name button located at the right or left end of the bottom row.

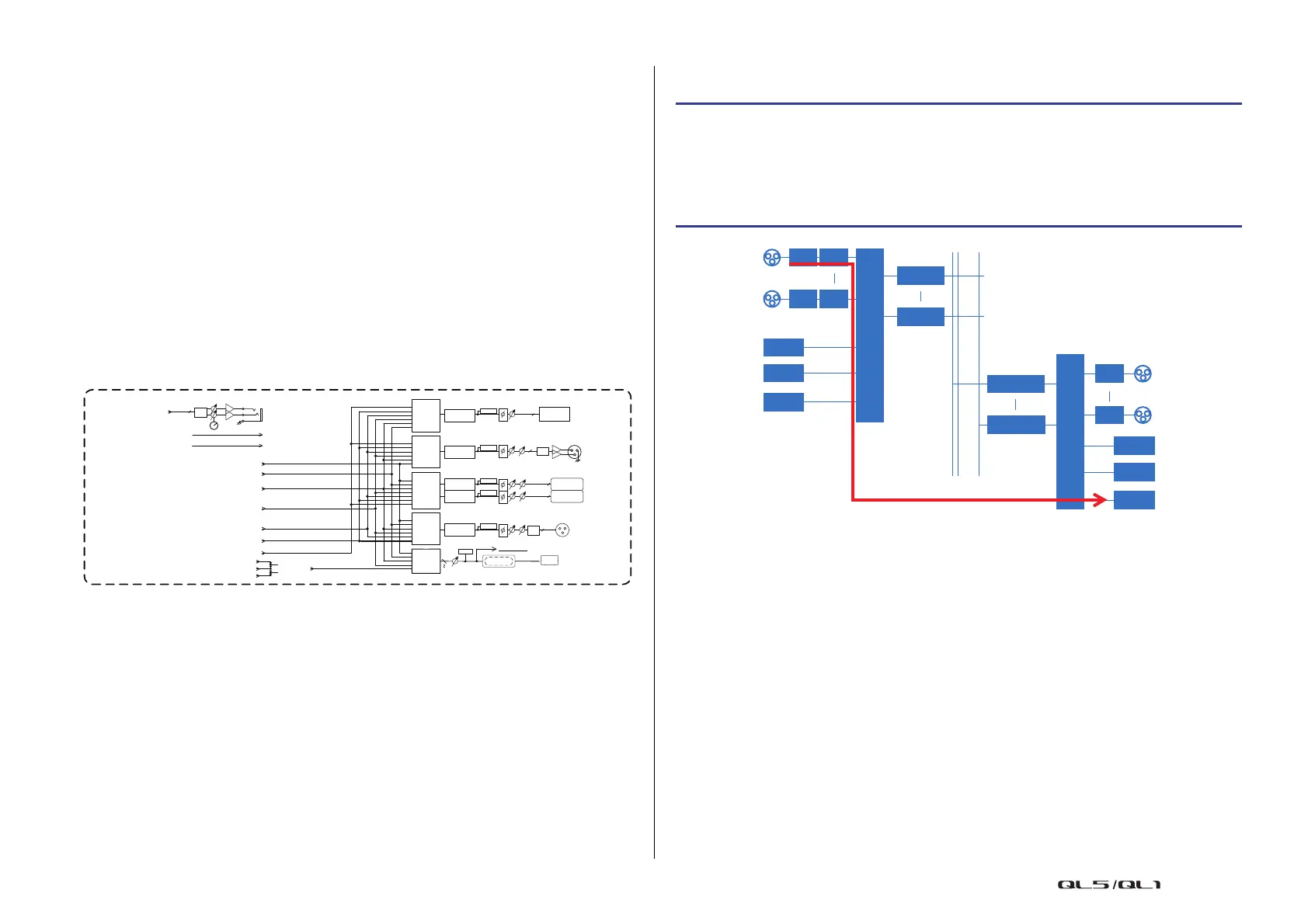

Using the PORT TO PORT function
Use the PORT TO PORT function to output from an input jack on the rear panel to a Dante
connector without sending the signal through the mixer. This allows you to use the I/O jacks
on QL series consoles as I/O jacks for an audio network.
OUTPUTS
PHONES OUT LR
[PHONES]
DA
PHONES LEVEL
2
Tip
Ring
Sleeve
OUTPUT
PATCH
OUTPUT
PATCH
STEREO OUT L
STEREO OUT MONO(C)
STEREO OUT R
STEREO L+C
STEREO R+C
OUTPUT
PATCH
SLOT1
SLOT2
[SLOT]
16
16
DELAY
(MAX:1000ms)
DELAY
(MAX:1000ms)
TRIM
GAIN
DA
16{8}
+
-
1
2
3
DELAY
(MAX:1000ms)
TRIM
GAIN
[OMNI OUT]
(1-16{8})
[DANTE]
(1-64{32})
64{32}
DELAY
(MAX:1000ms)
GAIN
DANTE
OUTPUT
2
DIT
[DIGITAL OUT]
AES/EBU
DELAY
(MAX:1000ms)
TRIMGAIN
INPUT 1-32{16}
DANTE IN 1-64{32}
CASCADE OUT [MIX1-16, STEREO L,R,MONO(C) ,MATRIX 1-8, CUE L,R]
INSERT 1, 2 OUT [CH1-64{32}, MIX1-16, STEREO L,R,MONO(C) ,MATRIX 1-8]
OUT [DIRECT 1-64{32}, MIX1-16, STEREO L,R,MONO(C) ,MATRIX 1-8]
OUT [MONITOR L,R,MONO(C) ,CUE L,R]
SLOT IN 1-2, 1-16
RECORDER CUE
USB
GAIN
METER
ENCODER
[2TR RECORDER]
OUTPUT
PATCH
OUTPUT
PATCH
MONITOR MATRIX OUT 1-6
[SLOT],[OMNI],[DANTE]
SURROUND MONITOR 1-6
[SLOT],[OMNI],[DANTE]
METER
METER
METER
METER
METER
STEP
1. In the Function Access Area, press the SETUP button.
2. Press the OUTPUT PORT button in the SYSTEM SETUP field located in the center of the
SETUP screen.
3. Press the channel select button in the OUTPUT PORT screen.
4. In the CH SELECT screen, select the output port.
ADHA
ADHA
Dante
SLOT
SLOT
Dante
SLOT
SLOT
INPUT
INPUT
OUTPUT
OUTPUT
DA
DA
OUTPUT PATCH
INPUT PATCH
