Yamaha QL5 Reference Manual

Input and output patching
Reference Manual
19

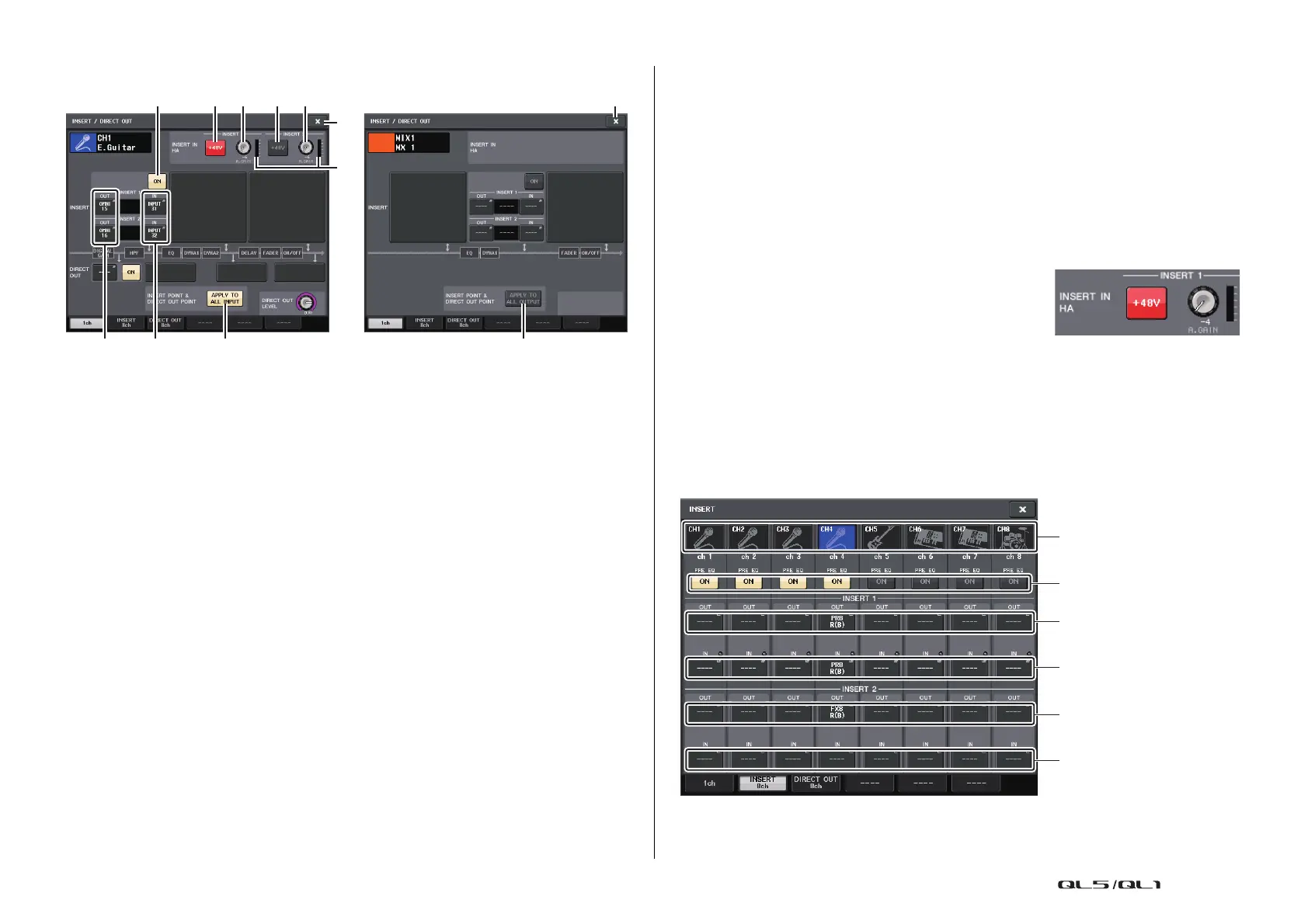

INSERT/DIRECT OUT window (1ch)
 INSERT field
This field enables you to make insert settings. Press one of three fields to choose PRE HPF
(immediately before the HPF), PRE EQ (immediately before the EQ) or PRE FADER
(immediately before the fader), or POST ON (immediately after the [ON] key) as the insert
position.
1 INSERT OUT button
Displays the currently-selected output port for insert 1 and insert 2. Press this button to
open the PORT SELECT window, and select an output port.
2 INSERT IN button
Displays the currently-selected input port for insert 1 and insert 2. Press this button to
open the PORT SELECT window, in which you can select an input port.
3 INSERT ON/OFF button
Switches the insert on or off.
4 APPLY TO ALL INPUT button (input channels only)
Specifies whether the insert point/direct out point settings will be applied to all input
channels.
5 APPLY TO ALL OUTPUT button (output channels only)
Specifies whether the insert point setting will be applied to all output channels.
NOTE
Insert 1 and insert 2 are serial connections with fixed sequential numbers.
 INSERT IN HA field
This field will appear if you have selected an input port (that features a head amp) as the
insert-in.
6 +48V button
Switches head amp phantom power (+48V) (currently-selected for insert 1 and insert 2)
on or off.
7 A.GAIN knob
Indicates the currently-selected head amp analog gain setting for insert 1 and insert 2.
You can use the [TOUCH AND TURN] knob to adjust the gain.
NOTE
• If you have selected the INPUT jack on the QL console as
the input port for insert-in, make the HA settings in the
INSERT IN HA field.
• Even if the INSERT ON/OFF button is OFF, the signal
selected for insert-out will continue to be sent.
8 HA meter
Displays the level of the currently-selected head amp input signal for insert 1 and insert
2.
9 Close button
Closes the screen.
INSERT screen (8ch)
1 Channel select button
Selects the channel to set. The channel icon, color, and number appear.
9
8
77 663 9
5
1 42
3
4
3
2
1
4

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
