Yamaha QL5 Reference Manual

Input channels
Reference Manual
34
Sending a signal from an input channel to a MIX/
MATRIX bus
The MIX buses are used mainly for the purpose of sending signals to foldback speakers on
stage, or to external effect processors. The MATRIX buses are used to produce a mix that is
independent of the STEREO bus or MIX buses, and is typically sent to a master recorder or
to a backstage monitoring system.
You can send a signal from an input channel to a MIX/MATRIX bus in the following ways.
 Using the SELECTED CHANNEL section
With this method, you use the [TOUCH AND TURN] knob to adjust the send levels to the MIX/
MATRIX buses. When using this method, signals sent from a specific input channel to all MIX/
MATRIX buses can be adjusted collectively.
 Using the faders (SENDS ON FADER mode)
With this method, you switch the QL series unit to SENDS ON FADER mode, and use the
faders on the top panel to adjust the level of signals sent to the MIX/MATRIX buses. When
using this method, signals sent from all input channels to a specific MIX/MATRIX bus can be
adjusted simultaneously.
Using the SELECTED CHANNEL section
This section explains how to use the [TOUCH AND TURN] knob to adjust the send levels of
signals sent from a specific input channel to all MIX/MATRIX buses.
MIX buses can be either a FIXED type that features a fixed send level, or a VARI type that
features a variable send level. The MATRIX buses are all VARI type. You can switch between
FIXED and VARI types for each two adjacent odd/even-numbered MIX buses. To do so, press
the SETUP button and then the BUS SETUP button to open the BUS SETUP window.
 If the MIX bus is a FIXED type
A gray circle is displayed instead of the TO MIX SEND LEVEL knob, and you cannot
adjust the send level.
 For a VARI type MIX bus or a MATRIX bus
Use the [TOUCH AND TURN] knob to adjust the send level.
STEP
1. Press the Bank Select keys in the Fader Bank section and the [SEL] keys on the top
panel to select the input channel from which you want to send the signal to the
MIX/MATRIX buses.
2. Turn on the ON button in the SEND field in the SELECTED CHANNEL VIEW screen.
3. Use the [TOUCH AND TURN] knob to adjust the send levels to the MIX/MATRIX
buses.

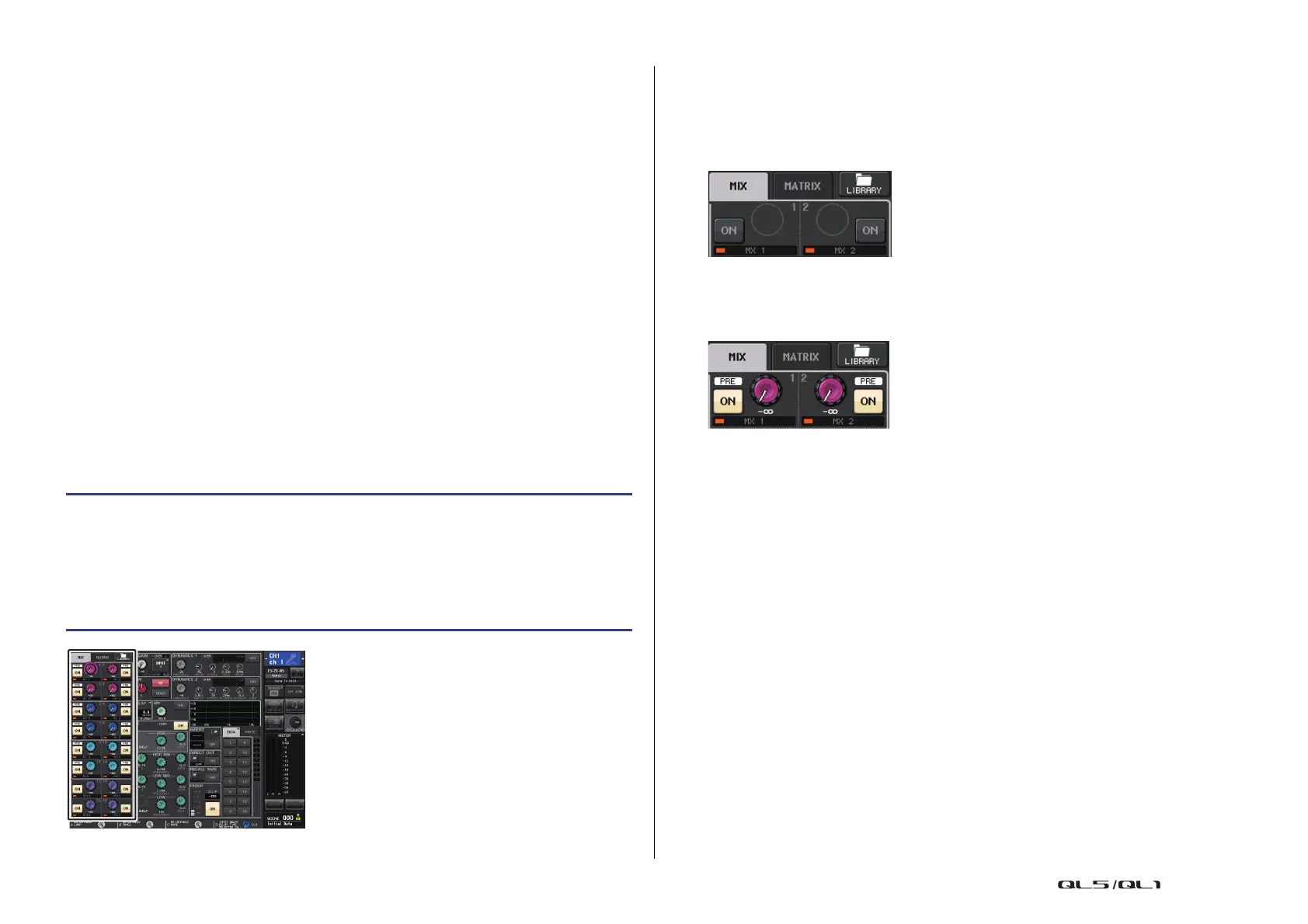

SELECTED CHANNEL VIEW screen

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
