Yamaha QL5 Reference Manual

MIDI
Reference Manual
163

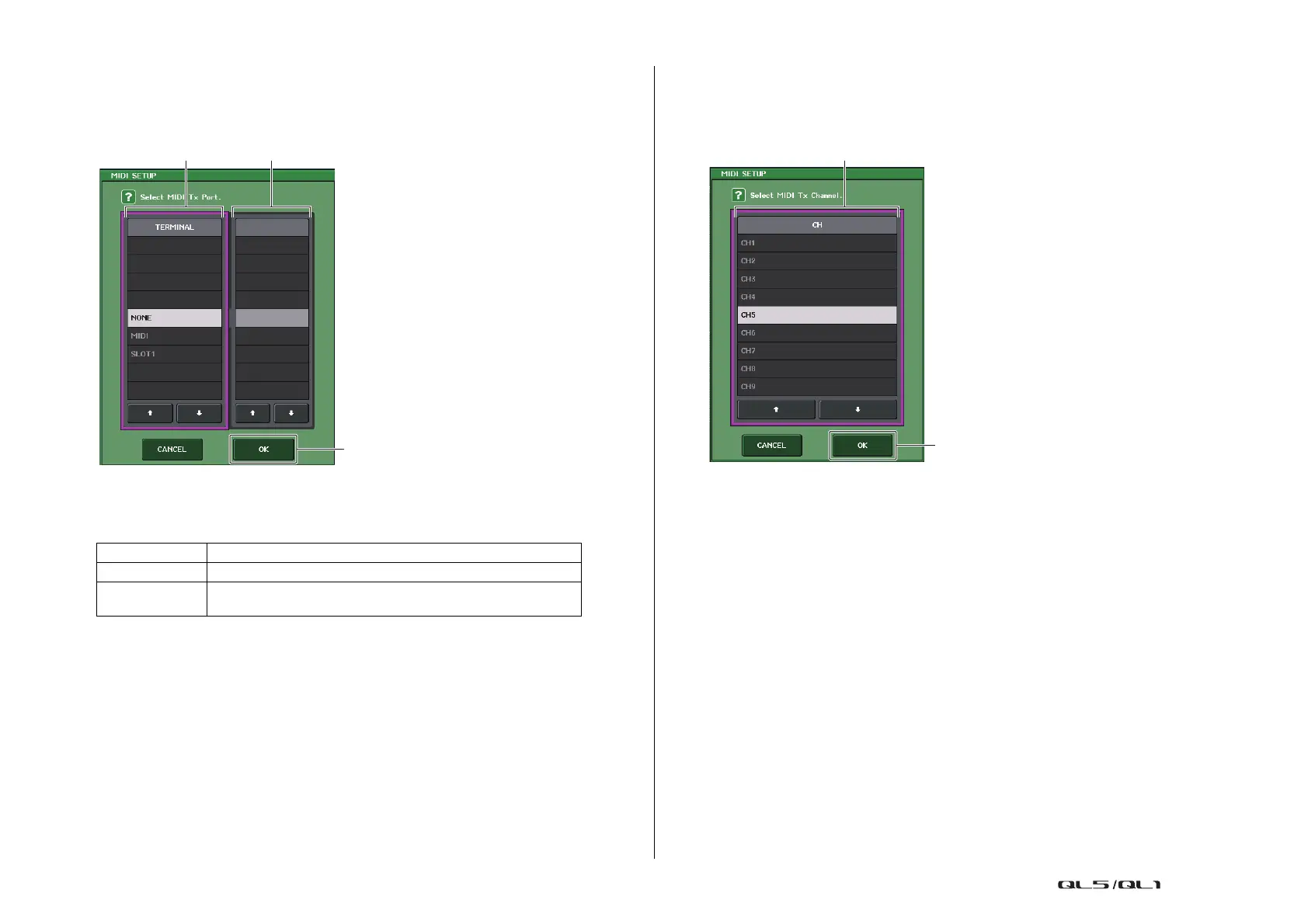

MIDI SETUP window (for port selection)
Here you can select the port that will be used to transmit and receive MIDI messages. This
window appears when you press the port select button for transmission (Tx) or reception (Rx)
in the PORT/CH field.
1 TERMINAL field
Enables you to select the port that will transmit or receive MIDI messages.
You can choose from the following items.
2 PORT NO. field
If you select SLOT 1 in the TERMINAL field, choose port number 1–8 in this field. (The
number of available ports will vary depending on the card that is installed.)
The currently-available card is valid only for port 1.
3 OK button
Confirms the settings and closes the window.
MIDI SETUP window (for channel selection)
This parameter row enables you to specify MIDI Channels for MIDI message transmission
and reception. This window appears when you press the channel select button in the PORT/
CH field.
1 CH field
Enables you to select CH1–CH16 as the channel that will transmit or receive MIDI
messages.
2 OK button
Confirms the settings and closes the window.
NONE No port will be used.
MIDI MIDI IN (Rx) and OUT (Tx) connectors on the rear panel
SLOT1
A card that supports serial transmission and is installed in Slot 1 on
the rear panel
1 2
3
1
2

Yamaha QL5 Specifications

General

DJ mixer	-
Product color	Black
Video capability	No
Channels quantity	72 channels
Supported sample rates	44.1, 48 kHz
Digital sound processing	- bit
Phantom power	48 V
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	200 W
Total Harmonic Distortion (THD)	0.05 %

Weight and Dimensions

Depth	563 mm
Width	828 mm
Height	272 mm
Weight	21800 g
