Yamaha QL5 Reference Manual

Setup
Reference Manual
229
 Error messages
The SYSTEM indicators will remain lit/blinking cyclically as follows until the problem has been
resolved.
If service is necessary, please contact the Yamaha service center listed in the QL5/QL1
Owner’s Manual.
 Warning messages
The indicators will remain lit/blinking cyclically until the problem has been resolved.
If the green [SYNC] indicator is not lit, the device’s word clock is not defined.
If the green indicator is blinking, the unit is operating as the word clock master.
If the green indicator lights, the unit is operating as a word clock slave and synching to the
word clock.

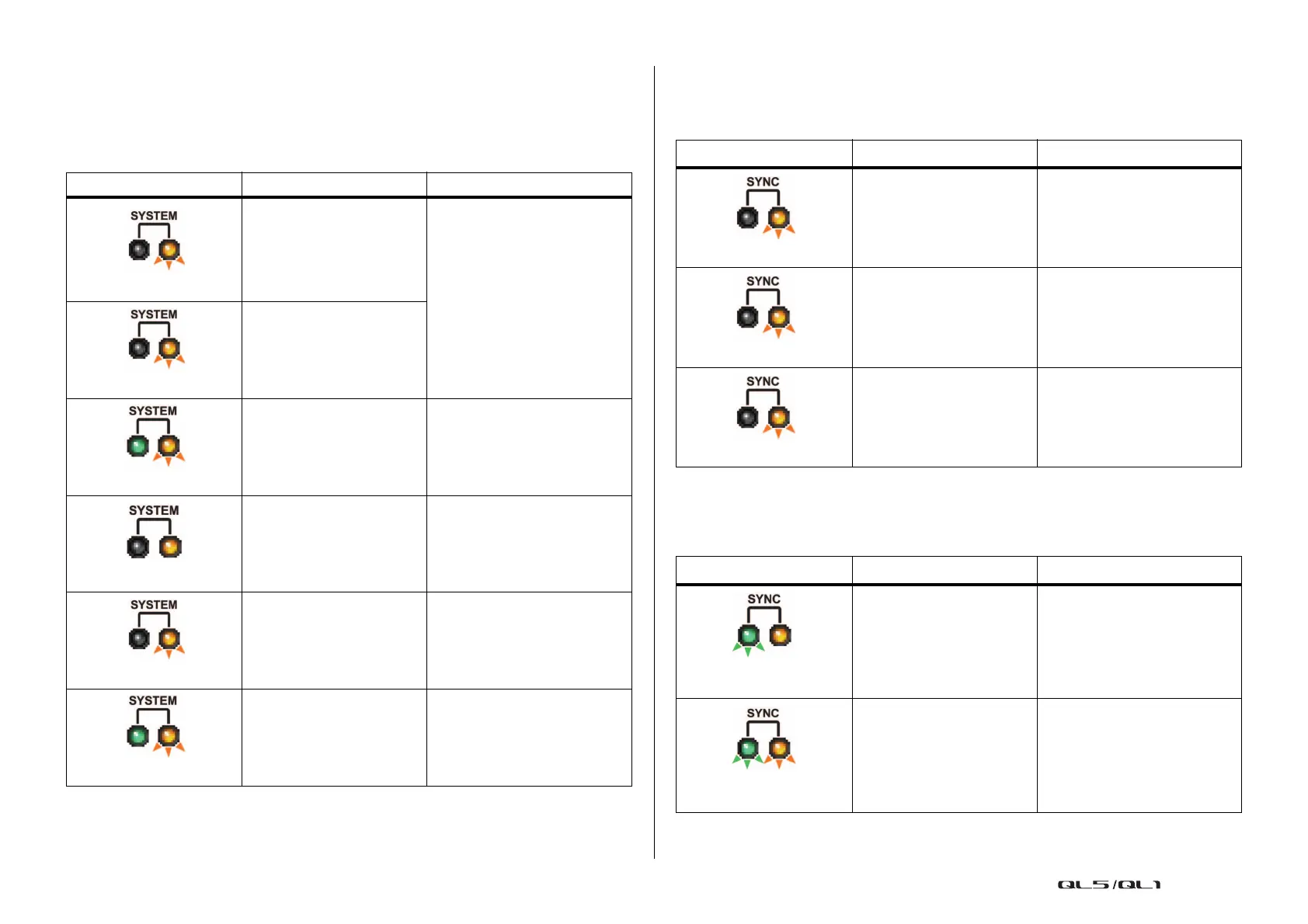

[SYSTEM] indicators Meaning Possible solution
An internal error has occurred.
The device has failed. Contact
your Yamaha dealer for repair.
The MAC address setting has
been corrupted and no
communication can occur via
Dante.
The internal memory has
been corrupted.
If the problem persists after
setting START UP MODE back to
RESUME and turning the power
on again, consult your Yamaha
dealer.
UNIT ID is not unique.
Set a unique UNIT ID number for
the Dante network.
The DIP switches are not set
correctly.
Check the DIP switch settings,
and set them correctly.
Dante flow number limit was
exceeded.
Examine the Dante network
routing.
Flash x2
Flash x3
Flash x3
Lit
Lit
Blinking
Blinking
Lit
[SYNC] indicators Meaning Possible solution
The word clock is not set
correctly.
Set the word clock master and the
sampling frequency correctly on
the QL5/QL1-native device or in
Dante Controller.
Dante Network circuit is
broken.
Make sure that the Ethernet
cables are not removed or short-
circuited.
Dante Network is connected
incorrectly. Other Dante
devices cannot be found.
Make sure that the Ethernet
cables are connected correctly.
[SYNC] indicators Meaning Possible solution
A non-GbE-compatible device
is connected.
If audio is transmitted over the
Dante network, use a GbE-
compatible device.
The SECONDARY connector
has taken over
communications during
redundant network operation.
Check the circuit connected to the
PRIMARY connector.
Blinking
Flash x2
Flash x3
Lit
Lit or
blinking
Blinking
Lit or
blinking
