12 Accessory change by direct coupling
108

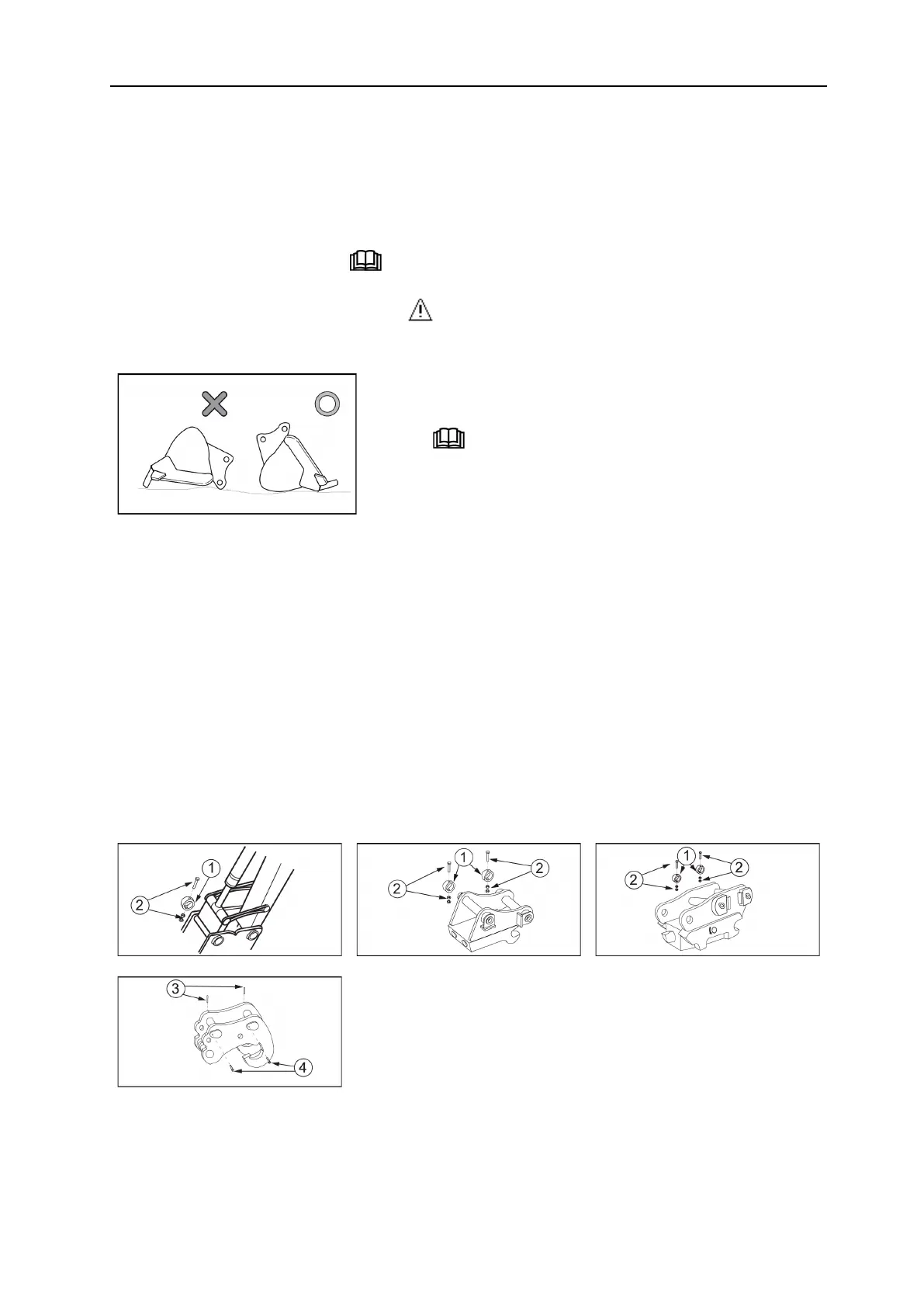

12.2 Mounting the accessory
IMPORTANT
Before using an accessory requiring hydraulic power, check the pressure compatibility
from the machine specifications chart.
1 Specifications, page 165
WARNING
Before mounting a bucket or an accessory on your machine, make sure that:
• the bucket or accessory is compatible with
the capabilities of your machine;
10.2 Compatible accessories, page 101
• the bucket or accessory mounting operation
is performed on a level and stable ground;
• the bucket or accessory is properly positioned
to be installed on the machine.
1. Clean and lubricate the bores.
2. Put the o-rings in place.
3. Align the arm bore with the bore A.
Add shims to compensate for play if necessary.
4. Insert the swivel pin into the bore A
5. Align the pin bore with the bore B.
Add shims to compensate for play if necessary.
6. Insert the swivel pin into the bore B
7. Install the stop systems depending on the accessory model mounted on the machine.
1= Rings
2= Bolts
3= Pins
4= Set screw
