7 Options
50

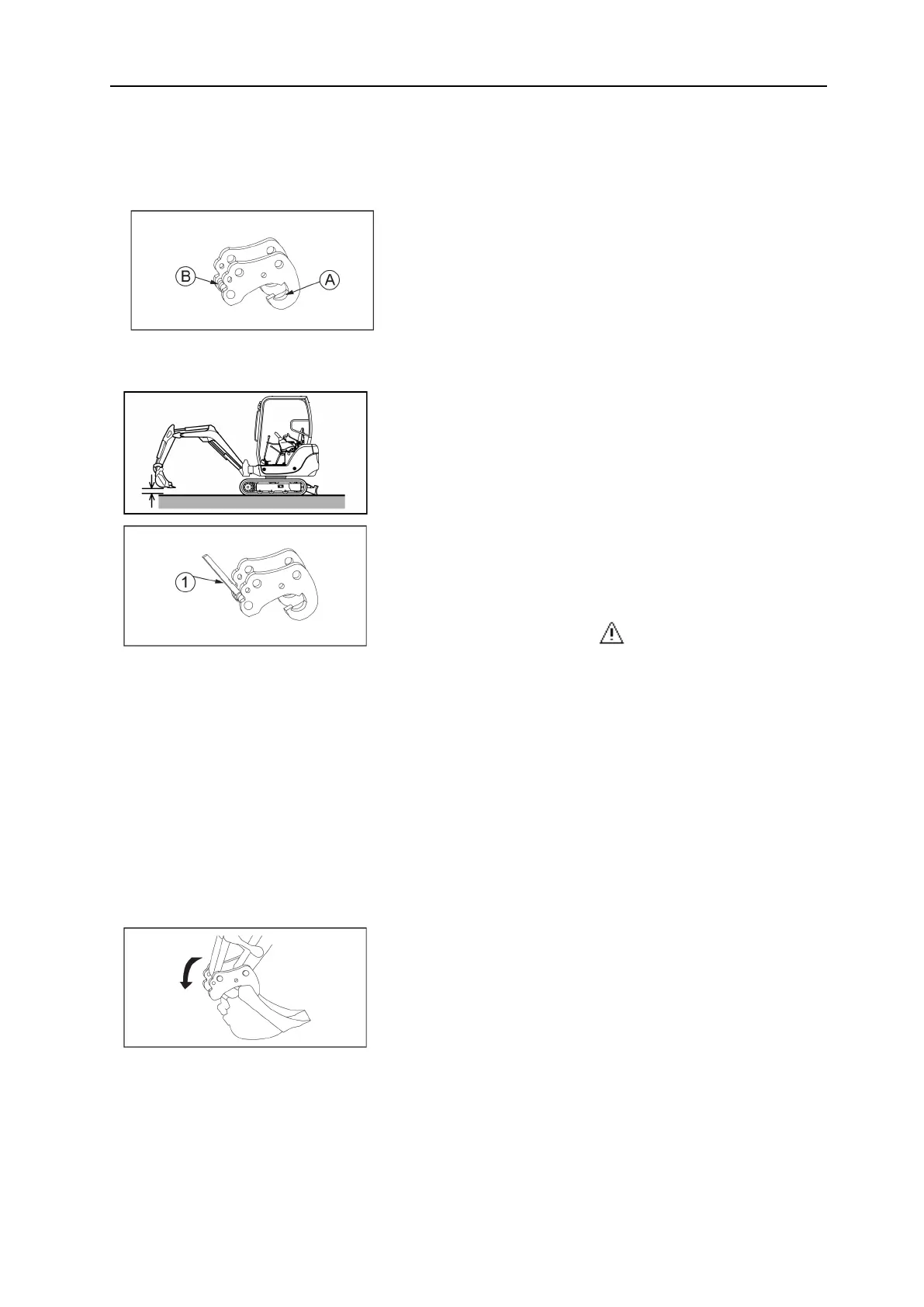

Dismantling the accessory
1. Park the machine preferably on a stable,
flat and level surface.
2. Place the accessory at about 5 cm above
the ground.
3. Be equipped with the wrench supplied
with the accessory and insert it into the quick
coupler hole.
4. Turn the key (1) to disengage the bucket
or accessory locking pin.
DANGER
By pressing the key, the bucket or acces-
sory detaches and comes into contact
with the ground. Take care not to get
your hands or feet crushed by the bucket
or accessory.
5. Remove the key and store it.
6. Manoeuvre the arm to disengage the tool's
quick coupler.
Mounting the accessory
1. Place the accessory on a stable, flat
surface.
2. Clean all the parts.
3. Place the arm equipped with the quick cou-
pler on the accessory to engage the accessory
hooks on the bucket or accessory pin.
4. Rotate the quick coupler by slowly lower-
ing the boom to fully engage the quick coupler
to the bucket or the accessory.
5. Manoeuvre the bucket or accessory to low
height from the ground to see if it is locked in
the quick coupler.
7.18.2 Mechanical quick coupler RETROMATIC MORIN
Quick coupler structure
The quick change system is composed of:
A= Fastening hooks
B= Locking pins
