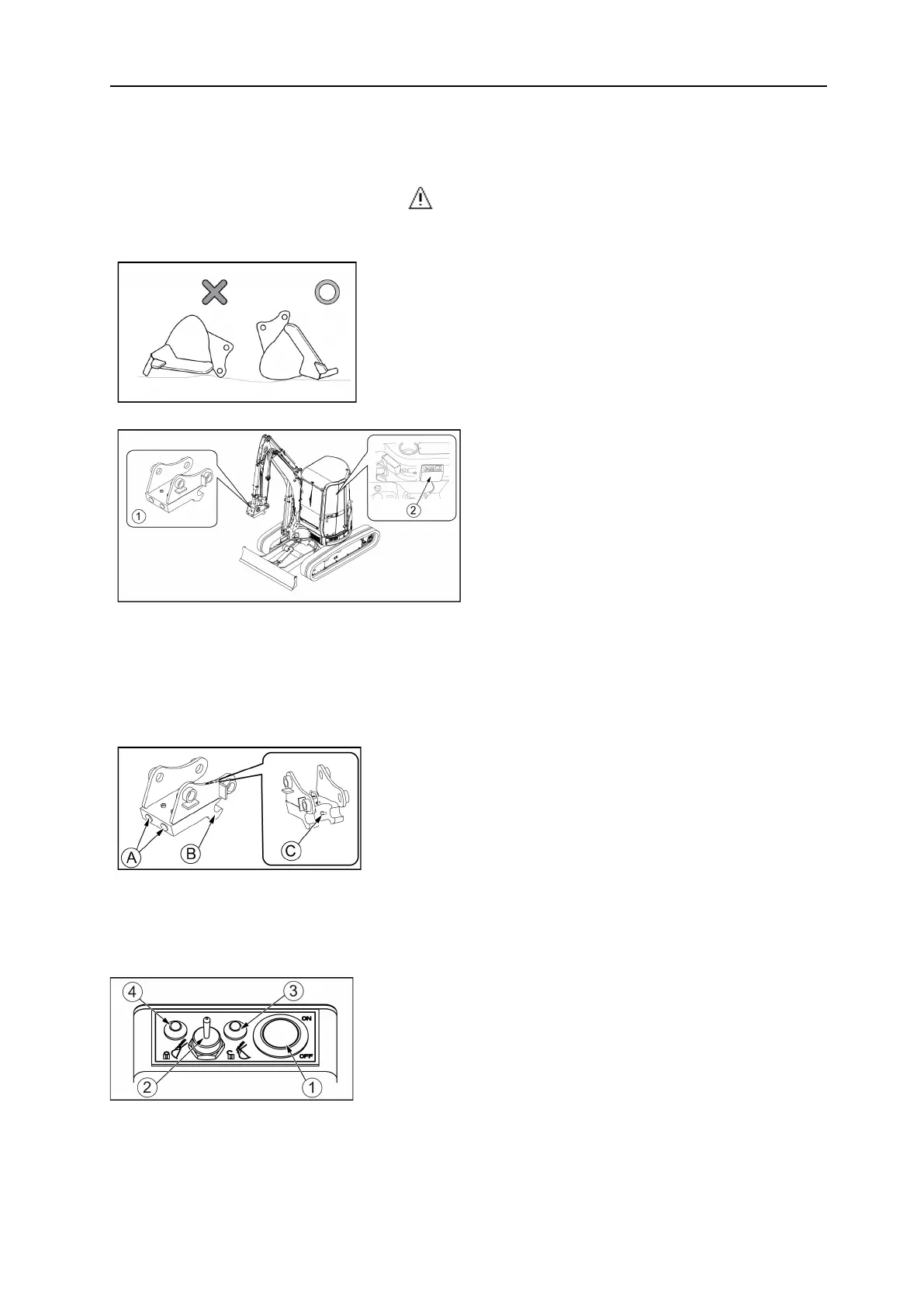

7.19 Quick hydraulic attachment CSERI
WARNING
Before mounting a bucket or an accessory on your machine, make sure that:
• the bucket or accessory is compatible with
the capabilities of your machine;
• the bucket or accessory mounting operation
is performed on a level and stable ground;
• the bucket or accessory is properly positioned
to be installed on the machine.
1= Quick hydraulic attachment
2= Quick attachment control unit
Quick hydraulic attachment
• When the locking pins retract, a indicator pin is visible in the quick coupler.
• When the locking pins are removed, the indicator pin retracts and is no longer visible.
A= Locking pins
B= Fastening hooks
C= Indicator pin
1= Power supply contact
2= Lock switch
3= Light : Quick coupler unlocked (red)
4= Light : Quick coupler locked (green)
Quick attachment control unit
• Use the control box located in the cab to install or remove a bucket or an accessory.
