5 Description of the driving position
23

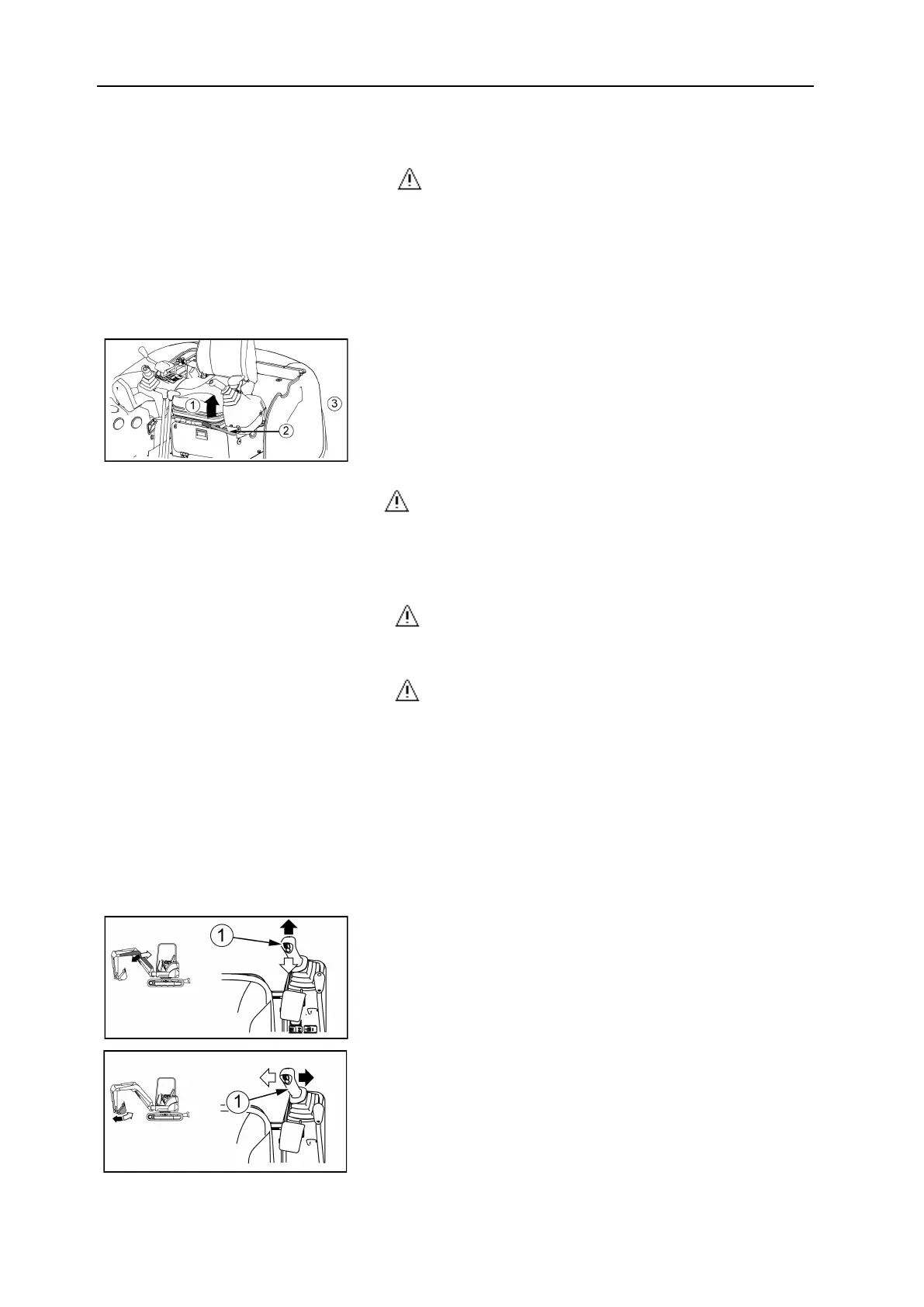

5.3.1 Locking lever
WARNING
The blade movement is not secured by the locking lever, even when the latter is in the loc-
ked position.
• The locking levers condemn the joysticks as well as the travel.
• When you raise the left hand locking lever, the left hand command lever is raised.
1 = Locking
2 = Locking lever
3= Left hand side
IMPORTANT
The machine is fitted with a hydraulic safety system. If the lever is in the safe position, all
the hydraulic cylinders for the boom, the arm and the bucket, as well as the boom rotation
and travel can not be activated, although the left and right joysticks can be manipulated.
WARNING
Place the locking lever(s) in locked position as soon as you leave the seat.
WARNING
The movement relationship between the command lever mechanism and the equipment mo-
vements thay produce are described in detail in this manual. To avoid any accidents due to
handling errors, it is prohibited to modify the hydraulic circuit when reconnecting the hy-
draulic cylinder hoses and valves.
5.3.2 Right command lever
• The right hand command lever is used to handle the boom and the bucket.
Handling the arrow
1= Right command lever
Handling the bucket
1= Right command lever
• When you release the lever, it returns to neutral position and the respective movements stop.
