4
2 IIDENTIFICATION PLATES

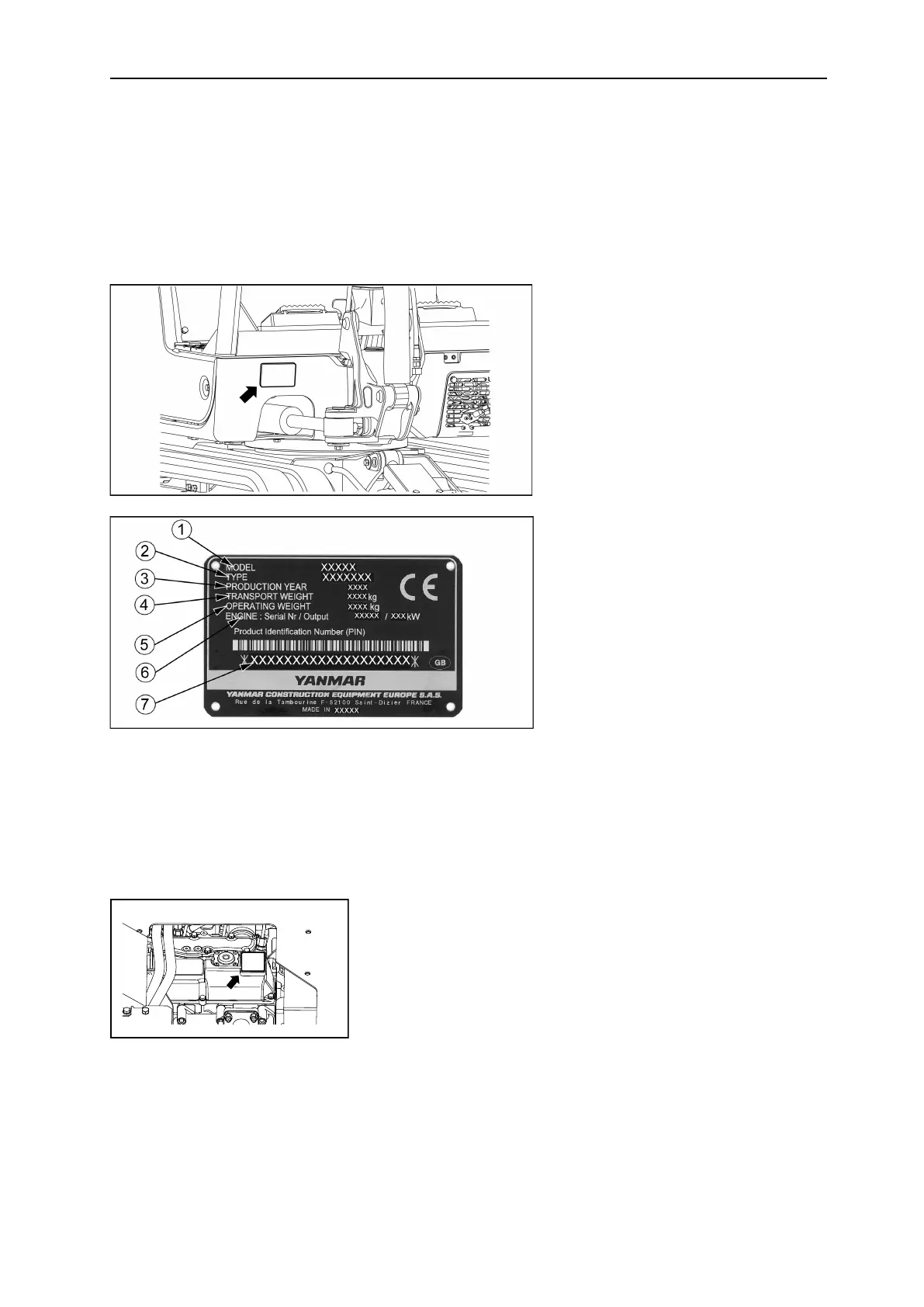

2.1 Machine serial number plate
• The machine's serial number plate is located on the rotating frame, as shown opposite. Never
remove this plate for any reason.
1= Model name
2= Type (Machine Category )
3= Date of manufacture of the
machine
4= Transport weight (Machine weight
without operator, equipped with a
standard bucket and tanks topped off)
5= Weight of the machine
(with operator +75 kg)
6= Serial number and engine power
7= Machine serial number
2.2 Engine serial number plate
The engine's serial number plate is located on the
top of the lifting arm lever cover and on the adhe-
sive label located inside the bonnet. Never remove
this plate for any reason.
2.3 EPA information plate
The EPA information plate is attached to the engine. Never remove this plate for any reason.
