Yealink SIP-T41S Administrator's Guide

Administrator’s Guide for SIP-T2 Series/T4 Series/T5 Series/CP920 IP Phones
560
For example, if you set the Always Forward on code to be *78 (may vary on different servers), and the target number
to be 201. When you enable Always Forward on the IP phone, the phone sends *78201 to the server, and then the
server will enable Always Forward feature on the server side, hence being able to get the right status of the exten-
sion.
For anonymous call/anonymous call rejection feature, the phone will send either the on code or off code to the
server according to the value of Send Anonymous Code/Send Rejection Code.

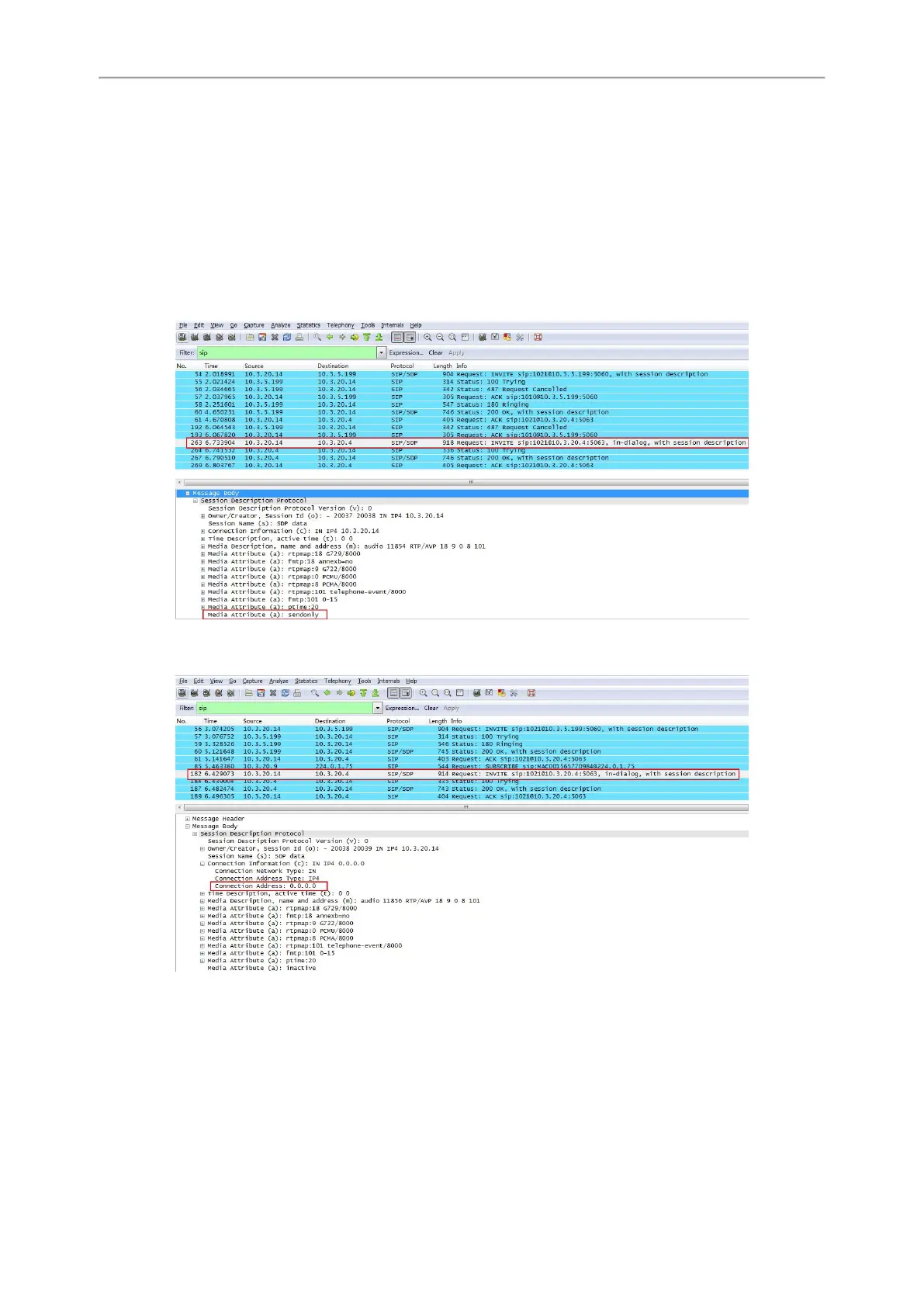

The difference between RFC 2543 Hold enabled and disabled
Capturing packets after you enable the RFC 2543 Hold feature. SDP media direction attributes (such as a=se-
endonly) per RFC 2543 is used in the INVITE message when placing a call on hold.
Capturing packets after you disable the RFC 2543 Hold feature. SDP media connection address c=0.0.0.0 per RFC
3264 is used in the INVITE message when placing a call on hold.
The difference between Shared Call Appearance (SCA) and Bridge Lines
Appearance (BLA)
SCA and BLA are similar signaling methods that enable more than one phone to share a SIP line. The method you
use varies with the SIP server you are using. In the configuration files, the relevant configuration parameters of SCA
and BLA are different. The barge-in and call pull feature are not available with BLA, but they are available with
SCA.

Yealink SIP-T41S Specifications

General

Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Keypad illumination	Yes
Wi-Fi	No
Networking standards	IEEE 802.3af
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Supported network protocols	SIP v1, SIP v2, LLDP/CDP/DHCP, OpenVPN, IEEE802.1X, IPv6, FTP/TFTP/HTTP/HTTPS
Volume control	Digital
Number of programmable keys	6
Lines quantity	6 lines
Phonebook capacity	1000 entries
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Input frequency	50/60 Hz
AC adapter input voltage	100 - 240 V
AC adapter output current	1.2 A
AC adapter output voltage	5 V
Display diagonal	2.7 \
Display resolution	192 x 64 pixels
Operating temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 95 %
Voice codecs	CNG, G.711Mu, G.711a, G.723.1, G.726, G.729ab, VAD, iLBC
Certification	CE
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)
Harmonized System (HS) code	85171800

Weight and Dimensions

Depth	189 mm
Width	212 mm
Height	175 mm
Package depth	223 mm
Package width	246 mm
Package height	120 mm
