Yealink SIP-T58A User Manual

User Guide for SIP-T58V/A Smart Media Phone
168
Multiple Line Keys per Account
You can configure multiple line keys to associate with an account. This enhances call
visualization and simplifies call handling.

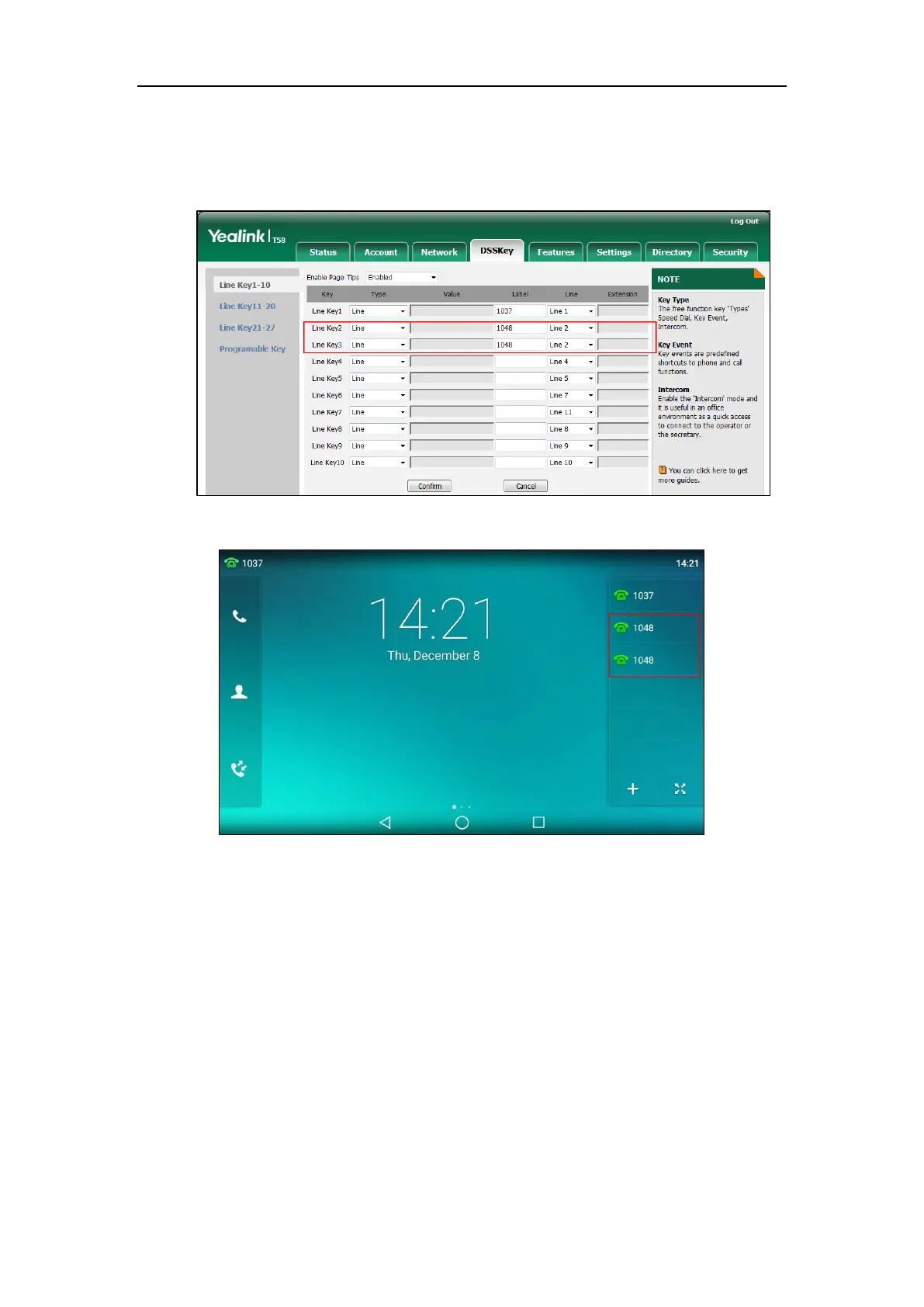

If this is the case, the touch screen will resemble the following figure:
Incoming calls to this account will be distributed evenly among the available line keys. Outgoing
calls will be distributed similarly.
Your phone can be configured to have a combination of accounts with a single line key and
accounts with multiple line keys.
Dial Plan
Dial plan is a string of characters that governs the way your SIP-T58V/A smart media phone
processes the inputs received from your phone keypad. The SIP-T58V/A smart media phone
supports the following dial plan features:
 Replace Rule
 Dial-now

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
