Yealink SIP-T58A User Manual

User Guide for SIP-T58V/A Smart Media Phone
278

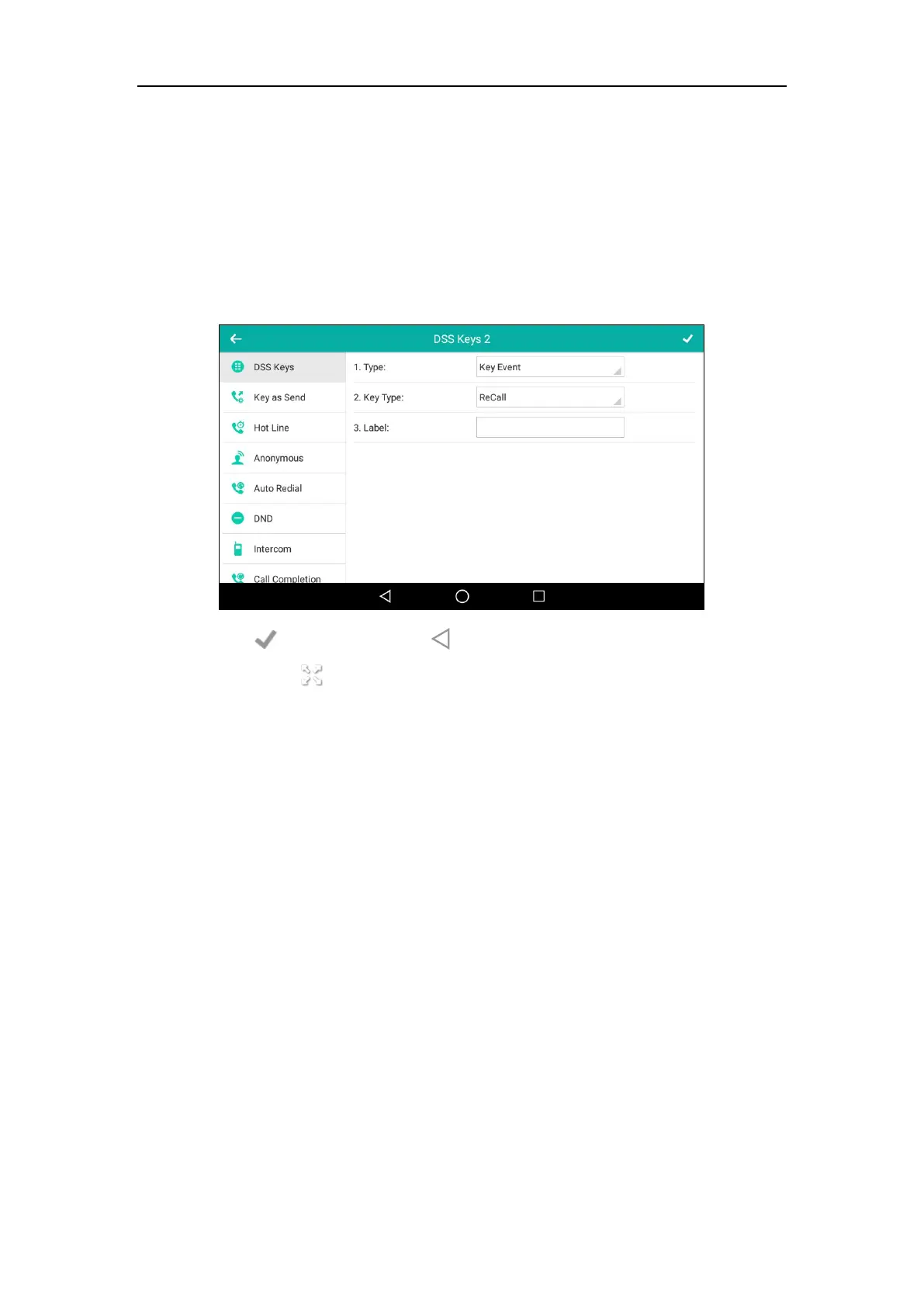

2. Tap Settings->Features->DSS Keys.
3. Tap the desired line key.
4. Tap the Type field.
5. Tap Key Event in the pop-up dialog box.
6. Tap the Key Type field.
7. Tap ReCall in the pop-up dialog box.
8. (Optional.) Enter the string that will appear on the touch screen in the Label field.
9. Tap to accept the change or to cancel.
You can also tap on the idle screen to configure a recall key. For more information, refer to
DSS Keys on page 149.
Recall key is configurable via web user interface at the path DSSKey->Line key.
Call Mute/Un-mute
You can mute the microphone of the active audio device during an active call so that the other
party cannot hear you. Call mute applies to all modes (Handset, Headset and Speakerphone).

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
