Yealink SIP-T58A User Manual

Advanced Phone Features
343

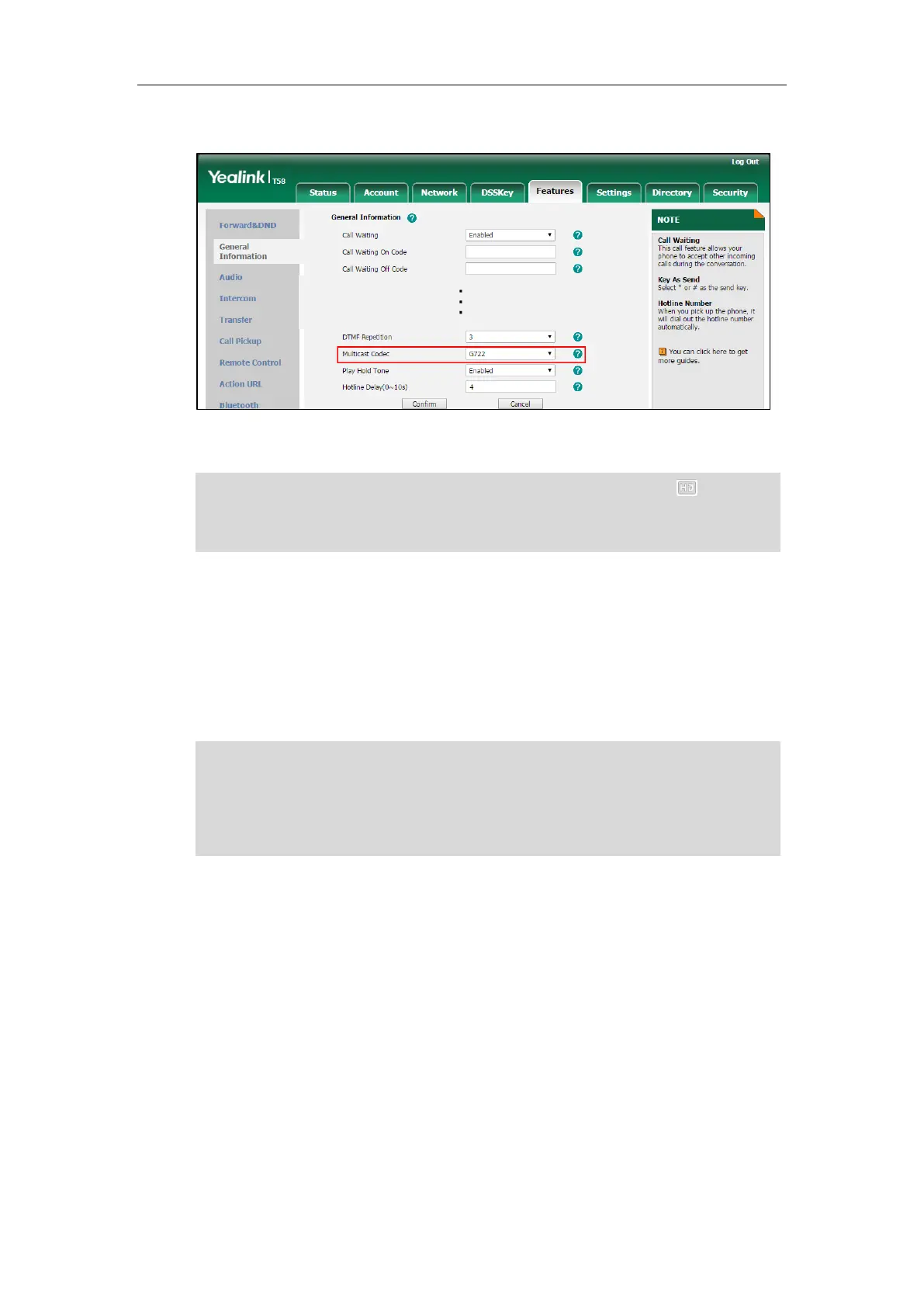

The default codec is G722.
3. Click Confirm to accept the change.
Note
Receiving RTP Stream
You can configure the phone to receive a Real Time Transport Protocol (RTP) stream from the
pre-configured multicast address(es) and channel(s) without involving SIP signaling. You can
specify up to 31 multicast addresses and channel(s) that the phone listens to on the network.
Note
How the phone handles incoming multicast paging calls depends on Paging Barge and Paging
Priority Active parameters configured via web user interface.
Paging Barge
The paging barge parameter defines the priority of the voice call in progress. If the priority of an
incoming multicast paging call is lower than that of the active call, it will be ignored
automatically. If Disabled is selected from the pull-down list of Paging Barge, the voice call in
progress will take precedence over all incoming multicast paging calls. Valid values in the
Paging Barge field:
 1 to 31: Define the priority of the active call, 1 with the highest priority, 31 with the lowest.
 Disabled: The voice call in progress will take precedence over all incoming paging calls.
If G722 codec is used for multicast paging, the touch screen will display the icon to indicate
that it is providing high definition voice.
Default codec for multicast paging is configurable via web user interface only.
RTP stream is listened in the hands-free (speakerphone) mode by default. If you want to listen the
RTP stream using the engaged audio device (speakerphone, handset or headset), contact your
system administrator for more information.
Fixed volume to play RTP stream for specified paging group is configurable by your system
administrator.

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
