Customizing Your Phone
85

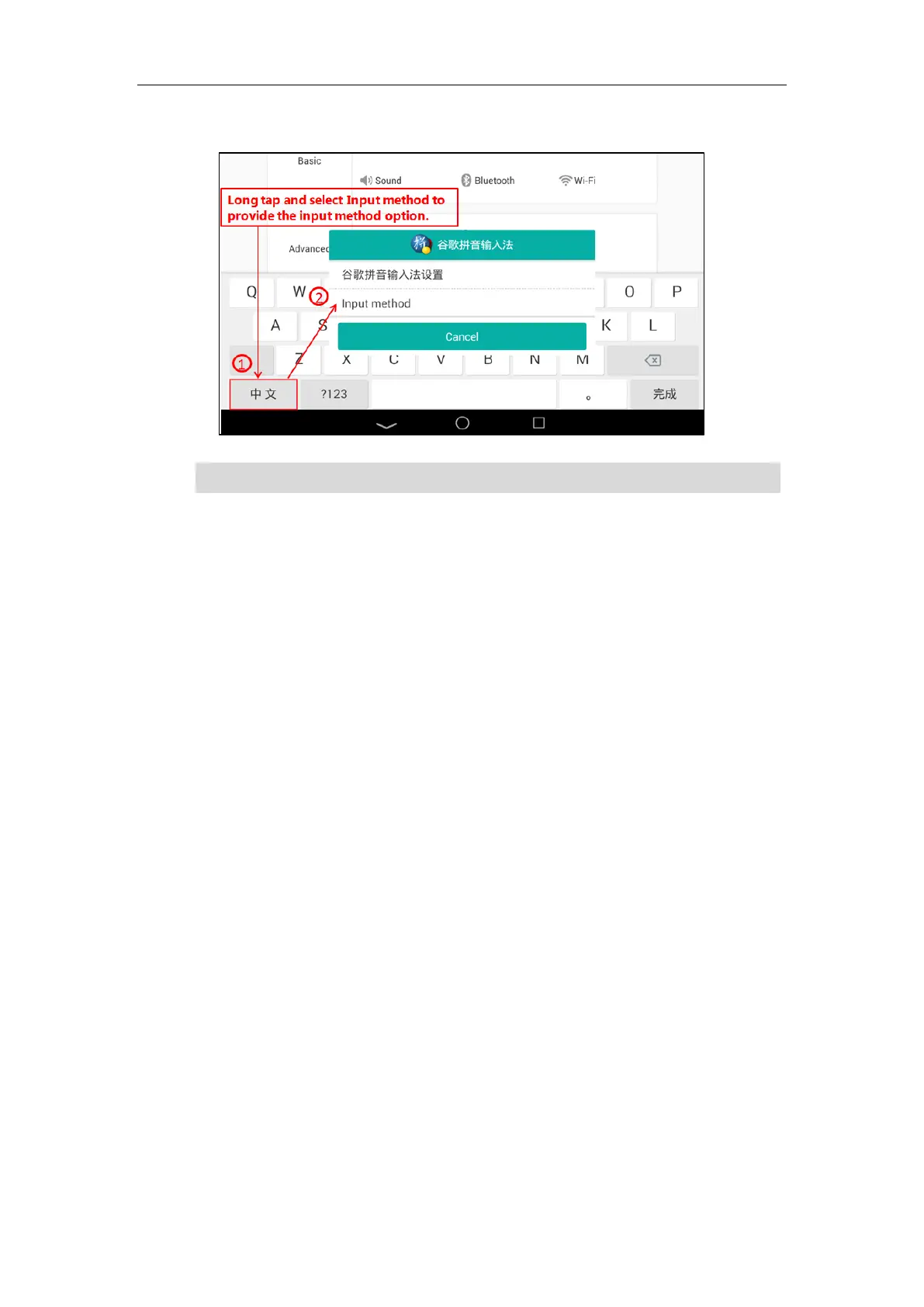

For Google Pinyin input method:
Note
Time & Date
There are three ways to view the time and date via phone user interface:
Viewing phone’s time on the status bar.
Viewing phone’s time and date by digital clock widget (refer to Clock).
Viewing phone’s time and date in the control center.
You can configure the phone to obtain the time and date from the SNTP server automatically, or
configure the time and date manually. If the phone cannot obtain the time and date from the
Simple Network Time Protocol (SNTP) server, contact your system administrator for more
information.
To configure the SNTP setting via phone user interface:
1. Swipe down from the top of the screen or swipe left/right to go to the second idle screen.
2. Tap Settings->Basic->Time & Date->General.
3. Tap the Type field.
4. Tap SNTP Settings in the pop-up dialog box.
5. Tap the Time Zone field.
6. Tap the time zone that applies to your area in the pop-up dialog box.
The default time zone is +8.
7. Enter the domain name or IP address of SNTP server in the NTP Server1 and NTP Server2
field respectively.
8. Tap the Daylight Saving field.
9. Tap the desired value in the pop-up dialog box.
Input method is configurable via phone user interface only.

Table of Contents

Other manuals for Yealink SIP-T58A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yealink SIP-T58A and is the answer not in the manual?

Yealink SIP-T58A Specifications

General IconGeneral
Touchscreen typeCapacitive
Display resolution1024 x 600 pixels
Operating system version5.1.1
Operating system installedAndroid
Dual-Tone Multi-Frequency (DTMF) modesIn-band, Out-of band, SIP info
MountingDesk/Wall
Handset typeWired handset
Product typeIP Phone
Product colorBlack
BluetoothNo
Security algorithmsSRTP
Networking standardsIEEE 802.1x
Ethernet LAN interface typeGigabit Ethernet
Supported network protocolsFTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity2
Voice codecsG.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity- lines
Phonebook capacity1000 entries
Number of VoIP accounts16
Front camera resolution (numeric)2 MP
Base station keys27
AC adapter input voltage100 - 240 V
AC adapter output current2 A
Power consumption (typical)1.9 W
Operating temperature (T-T)-10 - 40 °C
Operating relative humidity (H-H)10 - 95 %
Cables includedLAN (RJ-45)
Number of handles included1 pc(s)
Weight and Dimensions IconWeight and Dimensions
Depth220 mm
Width259.4 mm
Height239 mm
Package depth293 mm
Package width324 mm
Package height128 mm
