Basic Phone Features
313

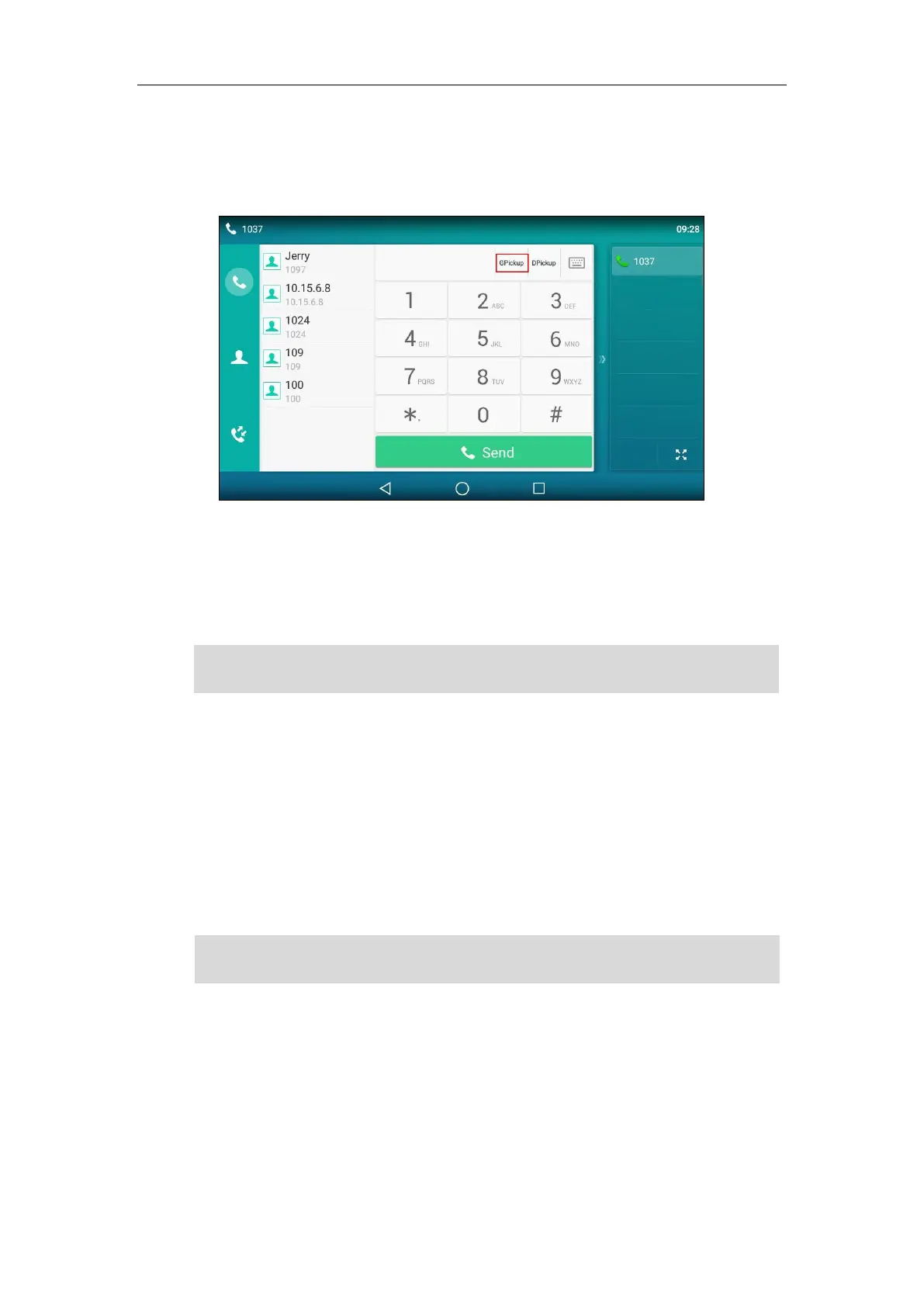

To pick up a call in the group:
1. Pick up the handset, press the Speakerphone key or tap the line key.
GPickup appears on the touch screen.
2. Tap GPickup on your phone when a phone in the group receives an incoming call.
The call is answered on your phone.
You can also configure a line key as a group pickup key via phone user interface or web user
interface. Once configured, you can pick up a call by tapping the group pickup key directly.
Note
Anonymous Call
You can use anonymous call to block your identity and phone number from appearing to the
called party when you call someone. For example, you want to call to consult some of the
services, but don’t want to be harassed. Anonymous call is configurable on a per-line basis. You
can also configure the phone to send anonymous call on/off code to the server to
activate/deactivate anonymous call on the server side.
Note
To configure anonymous call via phone user interface:
1. Swipe down from the top of the screen or swipe left/right to go to the second idle screen.
2. Tap Settings->Features->Anonymous.
3. Tap the desired line.
4. Tap the On radio box in the Local Anonymous field.
Anonymous call is not available on all servers. Contact your system administrator for the
anonymous call on code and off code.
The directed call pickup code and group call pickup code are predefined on the system server.
Contact your system administrator for more information.

Table of Contents

Other manuals for Yealink SIP-T58A

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Yealink SIP-T58A and is the answer not in the manual?

Yealink SIP-T58A Specifications

General IconGeneral
Touchscreen typeCapacitive
Display resolution1024 x 600 pixels
Operating system version5.1.1
Operating system installedAndroid
Dual-Tone Multi-Frequency (DTMF) modesIn-band, Out-of band, SIP info
MountingDesk/Wall
Handset typeWired handset
Product typeIP Phone
Product colorBlack
BluetoothNo
Security algorithmsSRTP
Networking standardsIEEE 802.1x
Ethernet LAN interface typeGigabit Ethernet
Supported network protocolsFTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity2
Voice codecsG.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity- lines
Phonebook capacity1000 entries
Number of VoIP accounts16
Front camera resolution (numeric)2 MP
Base station keys27
AC adapter input voltage100 - 240 V
AC adapter output current2 A
Power consumption (typical)1.9 W
Operating temperature (T-T)-10 - 40 °C
Operating relative humidity (H-H)10 - 95 %
Cables includedLAN (RJ-45)
Number of handles included1 pc(s)
Weight and Dimensions IconWeight and Dimensions
Depth220 mm
Width259.4 mm
Height239 mm
Package depth293 mm
Package width324 mm
Package height128 mm
