Yealink SIP-T58A User Manual

User Guide for SIP-T58V/A Smart Media Phone
32

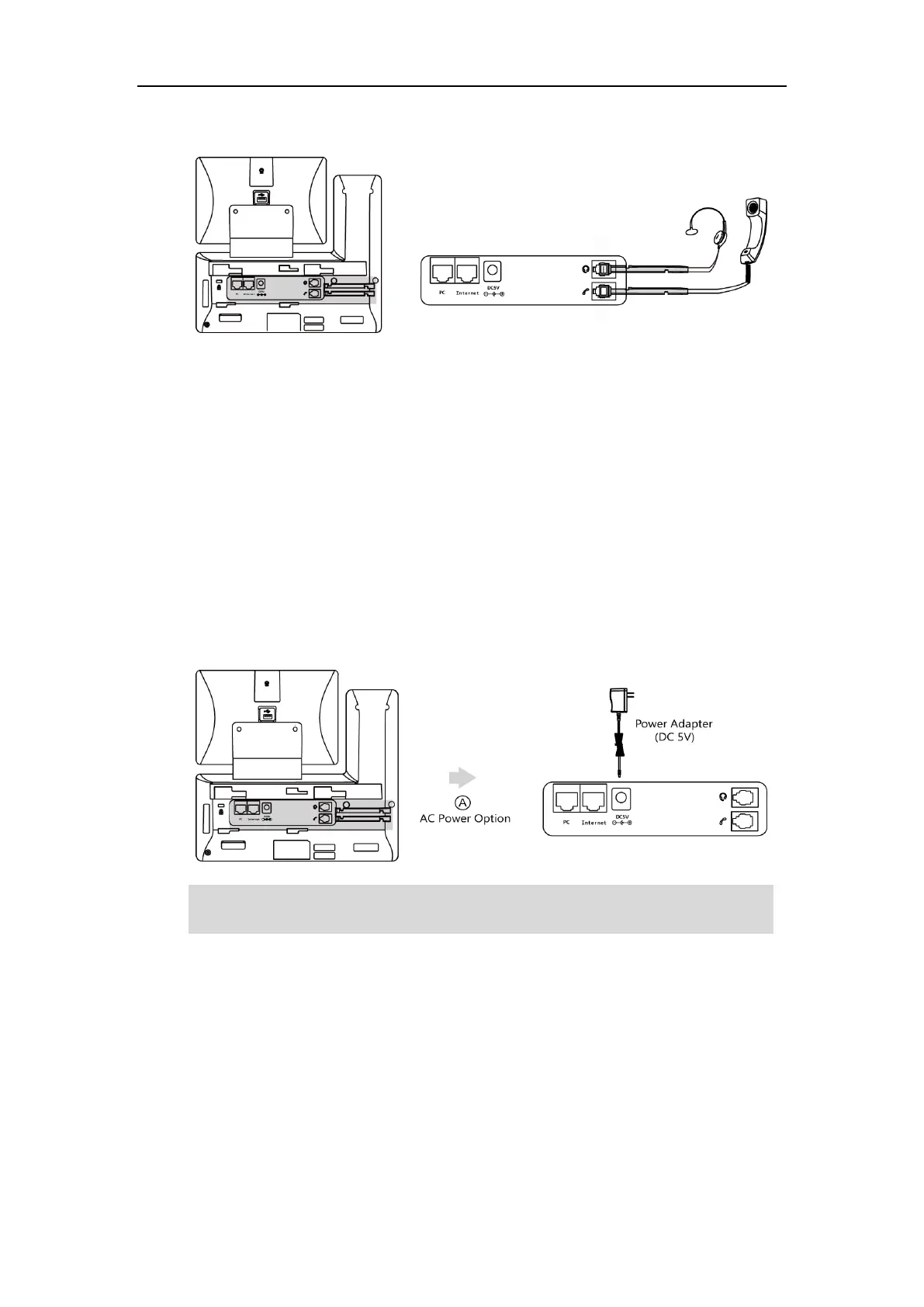

5) Connect the handset and optional headset
6) Connect the power
You have two options for power connections. Your system administrator will advise you which
one to use.
 AC power (Optional)
 Power over Ethernet (PoE)
AC Power (Optional)
To connect the AC power:
1. Connect the DC plug on the power adapter to the DC5V port on the phone and connect the
other end of the power adapter into an electrical power outlet.
Note
Power over Ethernet
With the included or a regular Ethernet cable, the SIP-T58V/A smart media phone can be
powered from a PoE-compliant switch or hub.
The IP phone should be used with Yealink original power adapter (5V/2A) only. The use of the
third-party power adapter may cause the damage to the phone.

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
