Yealink SIP-T58A User Manual

Basic Phone Features
277
To use call completion:

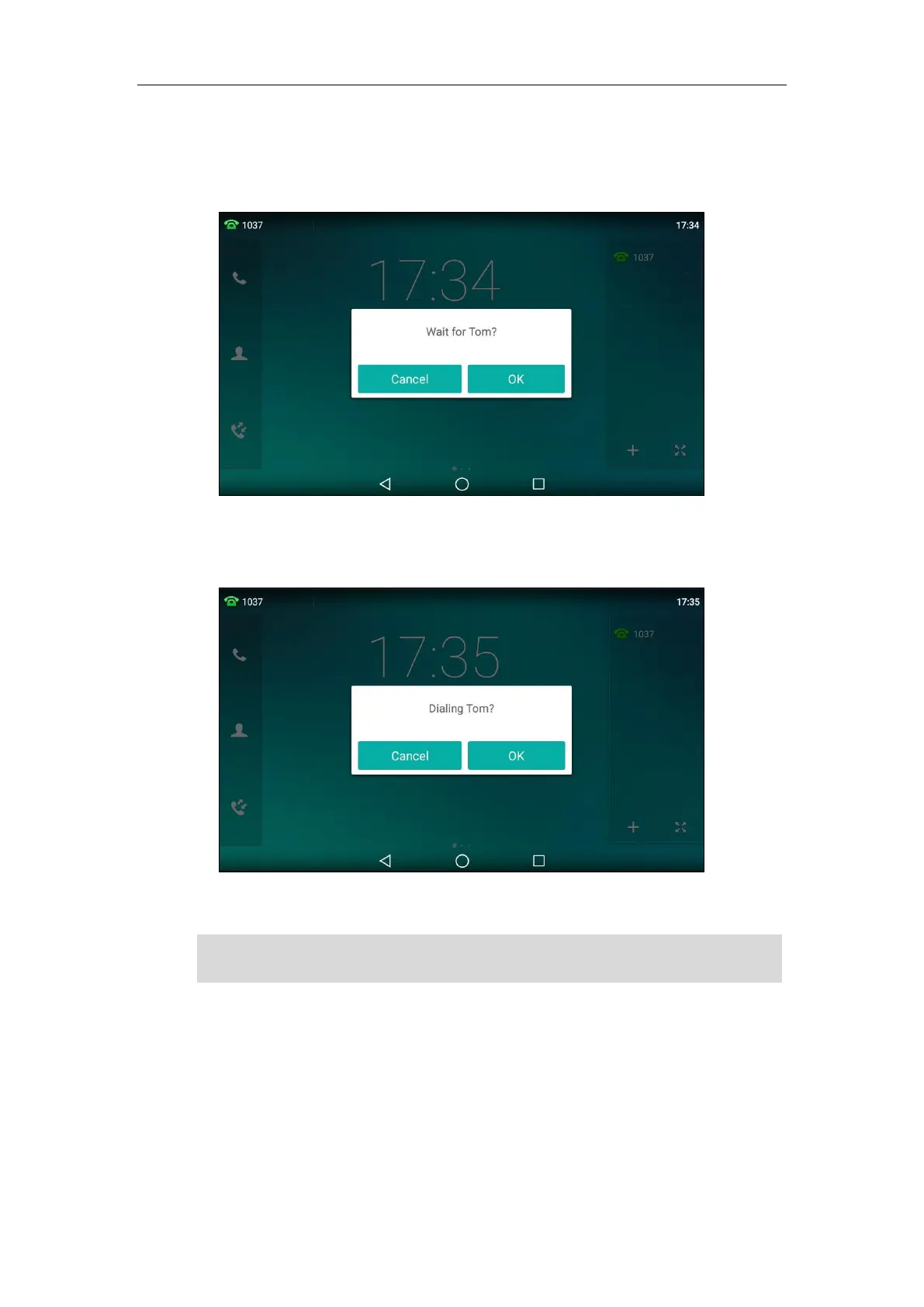

When the called party is busy, the following prompt will appear on the touch screen of the
phone:
1. Tap OK, the phone will then return to the idle screen and call completion will be activated.
When the called party becomes idle, the touch screen prompts the following:
1. Tap OK to redial the number.
Note
Recall
You can tap a recall key to place a call back to the last incoming call.
To configure a recall key via phone user interface:
1. Swipe down from the top of the screen or swipe left/right to go to the second idle screen.
Call completion is not available on all servers. For more information, contact your system
administrator.

Yealink SIP-T58A Specifications

General

Touchscreen type	Capacitive
Display resolution	1024 x 600 pixels
Operating system version	5.1.1
Operating system installed	Android
Dual-Tone Multi-Frequency (DTMF) modes	In-band, Out-of band, SIP info
Mounting	Desk/Wall
Handset type	Wired handset
Product type	IP Phone
Product color	Black
Bluetooth	No
Security algorithms	SRTP
Networking standards	IEEE 802.1x
Ethernet LAN interface type	Gigabit Ethernet
Supported network protocols	FTP/TFTP/HTTP/HTTPS, IPv4/IPv6, UDP/TCP/DNS-SRV
USB 2.0 ports quantity	2
Voice codecs	G.711Mu, G.711a, G.722, G.722.1, G.722.1C, G.723, G.726, G.729ab, iLBC
Lines quantity	- lines
Phonebook capacity	1000 entries
Number of VoIP accounts	16
Front camera resolution (numeric)	2 MP
Base station keys	27
AC adapter input voltage	100 - 240 V
AC adapter output current	2 A
Power consumption (typical)	1.9 W
Operating temperature (T-T)	-10 - 40 °C
Operating relative humidity (H-H)	10 - 95 %
Cables included	LAN (RJ-45)
Number of handles included	1 pc(s)

Weight and Dimensions

Depth	220 mm
Width	259.4 mm
Height	239 mm
Package depth	293 mm
Package width	324 mm
Package height	128 mm
