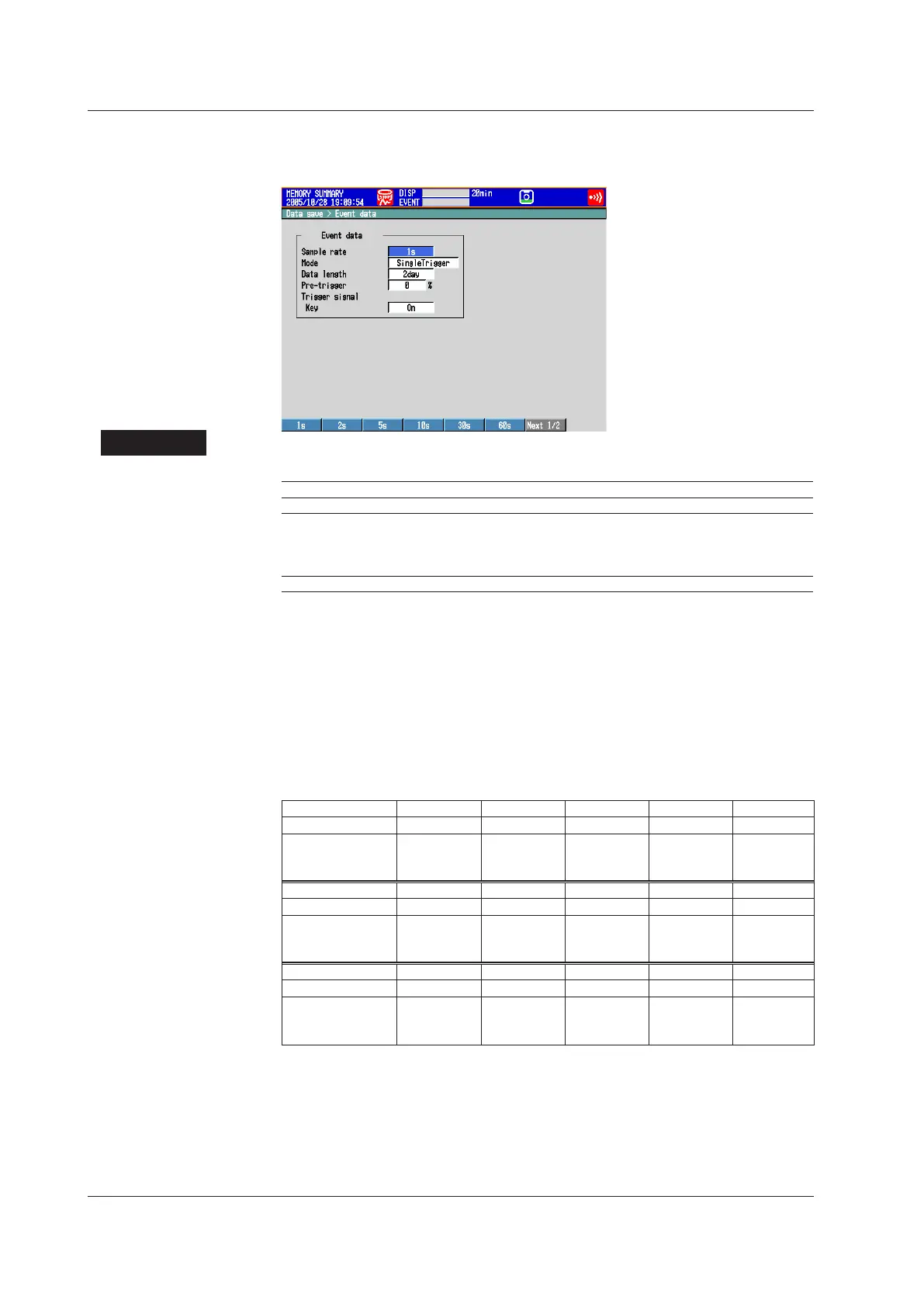

• RecordingConditionsofEventData
Press MENU (to switch to setting mode), and select the Menu tab > Datasave >
Eventdata.
SetupItems
• Memory>Data kind
Settings Description
Display Records display data.
E+D Records display data and event data. This setting cannot be selected
when the trend interval switching function is set to On. This setting cannot
be selected when the multi batch function (/BT2 option) is being used or
on DXs with the /AS1 advanced security option.
Event Records event data.
• Memorysample>On/Off
Turn On the target channels.
• Trend/Saveinterval>Trendinterval[/div](whenrecordingdisplaydata)
See the table below. You can only set trend intervals that are longer than the scan
interval you set in Basic Setting Mode.
• Trend/Saveinterval>Saveinterval(whenrecordingdisplaydata)
Select the size of a record data file. The recorded data is divided by the file size
specified here. The available settings vary depending on the number of memory
sampling channels and the Trendinterval setting.
Trendinterval
*1
5 s
*2
10 s
*2
15 s
*3
30 s 1 min
Samplerate 125 ms 250 ms 500 ms 1 s 2 s
Selectablerange
ofautosave
interval
10 min to 12
hours
10 min to 1
day
10 min to 3
days
10 min to 7
days
10 min to 14
days
Trendinterval
*1
2 min 5 min 10 min 15 min 20 min
Samplerate 4 s 10 s 20 s 30 s 40 s
Selectablerange
ofautosave
interval
10 min to 14
days
10 min to 31
days
10 min to 31
days
10 min to 31
days
1 hour to 31
days
Trendinterval
*1
30 min 1 h 2 h 4 h 10 h
Samplerate 1 min 2 min 4 min 8 min 20 min
Selectablerange
ofautosave
interval
1 hour to 31
days
1 hour to 31
days
2 hours to
31 days
4 hours to
31 days
8 hours to
31 days
*1 You cannot set a trend interval that corresponds to a sampling interval that is faster than the
scan interval.
*2 Selectable on the DX2004 and DX2008 (release number 3 or later).
*3 Selectable in fast sampling mode on the DX2010, DX2020, DX2030, DX2040, and DX2048
(release number 3 or later).
• Trend/Saveinterval>Secondinterval[/div]
See section 5.3.
