Tractor greasing pla
Safety instructions for lubrication of the tractor
z The tractor maintenance may be performed only by the trained personnel thoroughly familiarized with
operational and safety principles.
z During maintenance of the tractor wear appropriate (specified) personal protective equipment
(occupational footwear, protective gloves, safety goggles, etc.).
z Prior to starting the work, secure the tractor against movement using manual brake.
Lubrication must be performed only when the engine is at standstill!

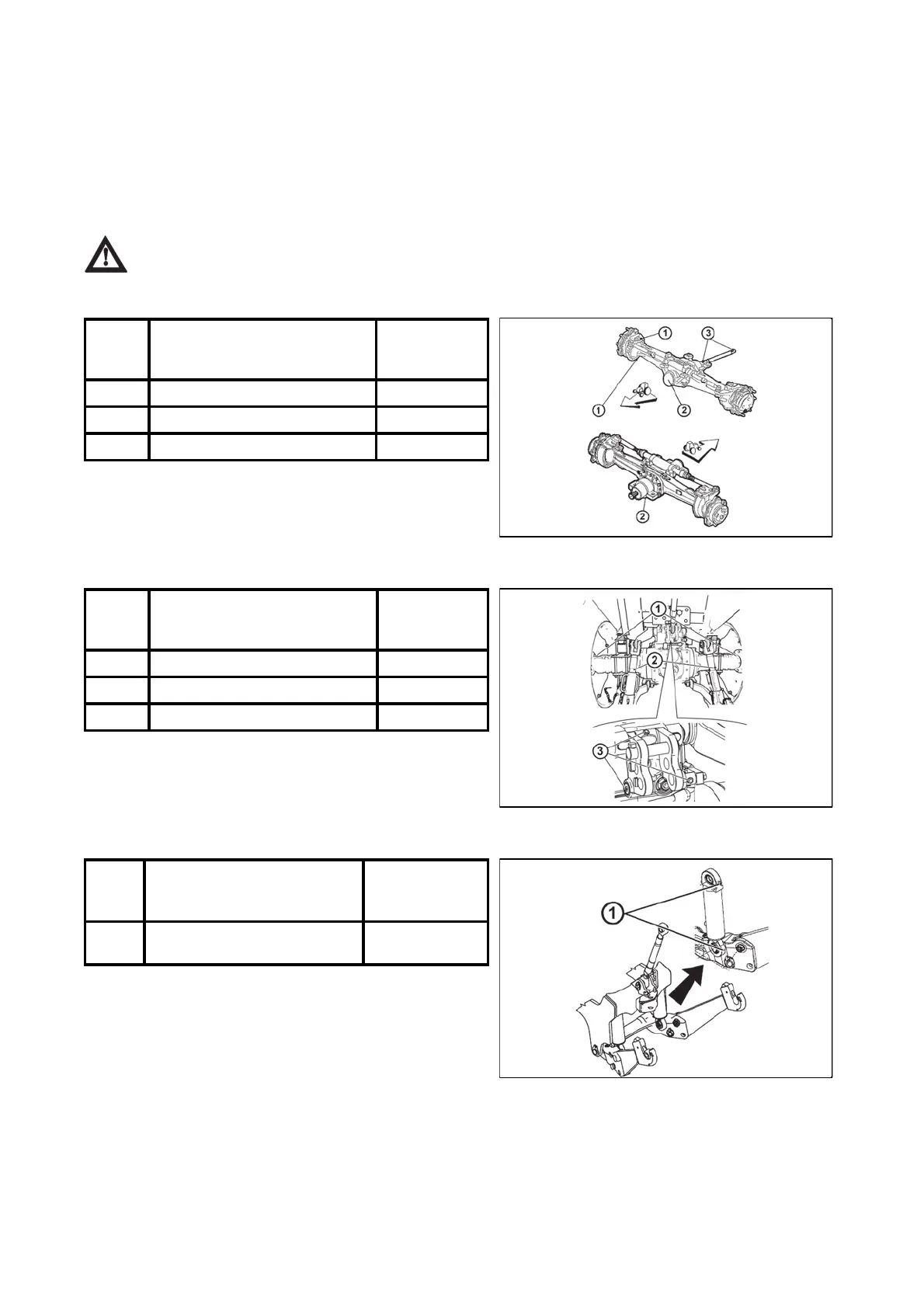

Front drive axle
Three-point linkage and rear semi-axes bearings
Front three-point hitch
Position
number
Name Number of
greasing
points
1 Pivot pins 4
2 Spigot shaft 2
3 Cardan shaft joint 2
8P
Number
of
position
Name Number of
greasing
points
1 Rear semi-axes bearings 2
2 Lifting rod 2
3 Upper draw bar bracket 3
NM13N073
Pos.
no.
Identification No. of
lubrication
points
1 Pins of cylinders of the front
three-point hitch
4
02F
