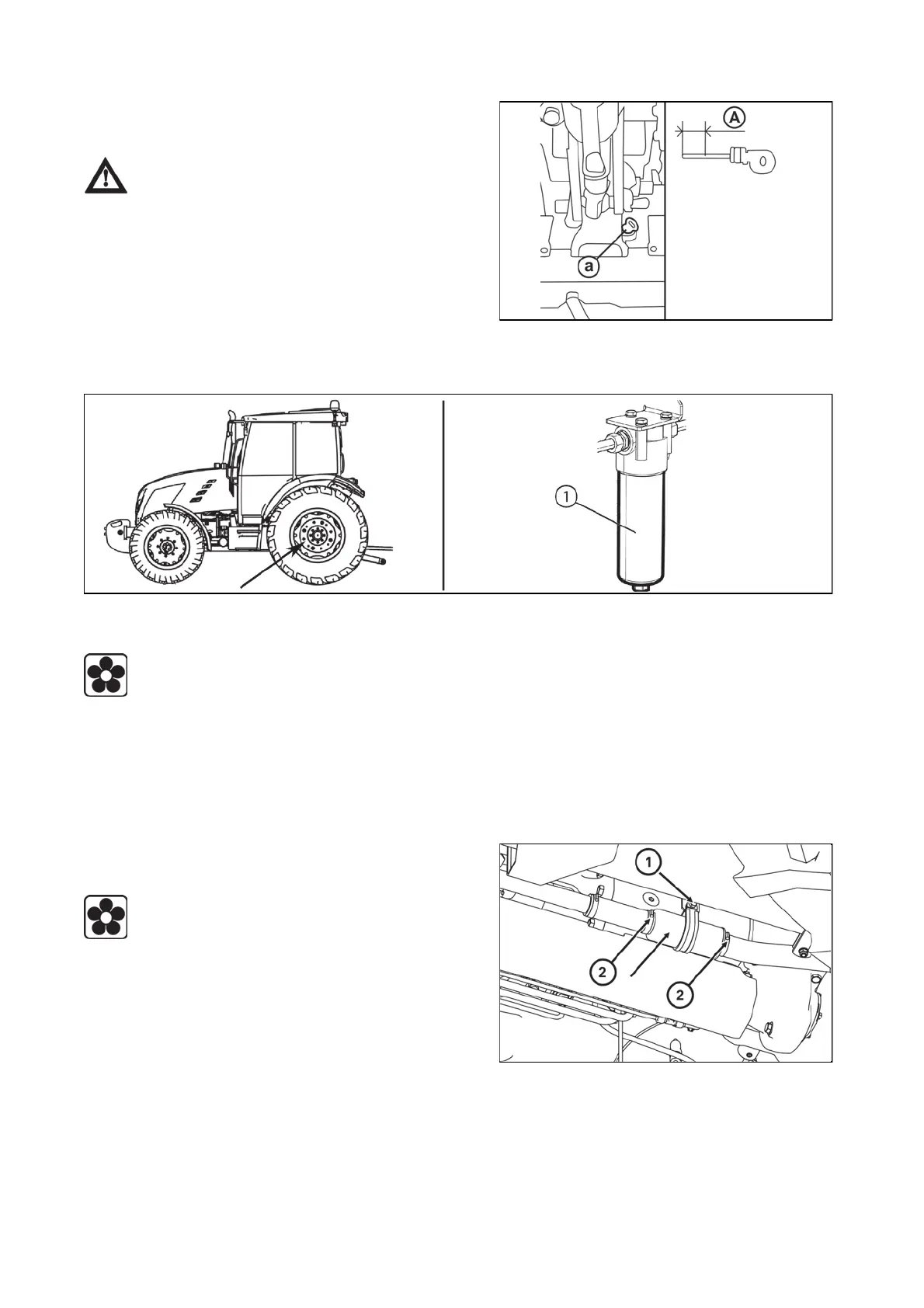

Checking the oil in gear box, final drive housing and rear axle
Replacement of the transmission oil cleaner element with hydraulic pump suction filter
MHS16N043
The oil filter is located on the left side of the gearbox.
Prior to the replacement of the filter element put a suitable vessel for catching the dripping oil
under the tractor.
1. Unscrew the oil filter body (1)
2. Replace the filter element
3. Perform the reassembly of the oil filter body
Note: Prior to reassembly of the filter body lubricate the sealing o-ring with lubricating oil.
Replacement of the filter of the hydraulics suction
Gear system has a common oil filling. The state of oil is
checked with a dipstick (a), which is placed in the rear part
of final drive housing. Dipstick hole serves as filling.
Do the inspection with a tractor at standstill. Oil
must be in the range (A) of dipstick.
NM13N066
The suction cleaner is located on the left side of the tracto
behind the fuel tank. Replacement of the filter must be
performed when the gearbox filling is drained.
Prior to the replacement of the filter element put
a suitable vessel for catching the dripping oil under
the tractor.
1. Unscrew the sleeve (1) and water tapes (2)
2. Disassemble the filter element
3. Perform assembly of a new filter element
MHS16N042
