PTO shaft drive engagement leve
PTO shaft revolutions 540 and 1000 rpm shifting lever
Battery disconnector
Attention! When the engine is switched off, the engine control unit remains active for about
1 minute because of storage of operation data. During this time the supply of current from the
accumulator must not be interru
ted
Do not disconnect the accumulator before this time ex
ires

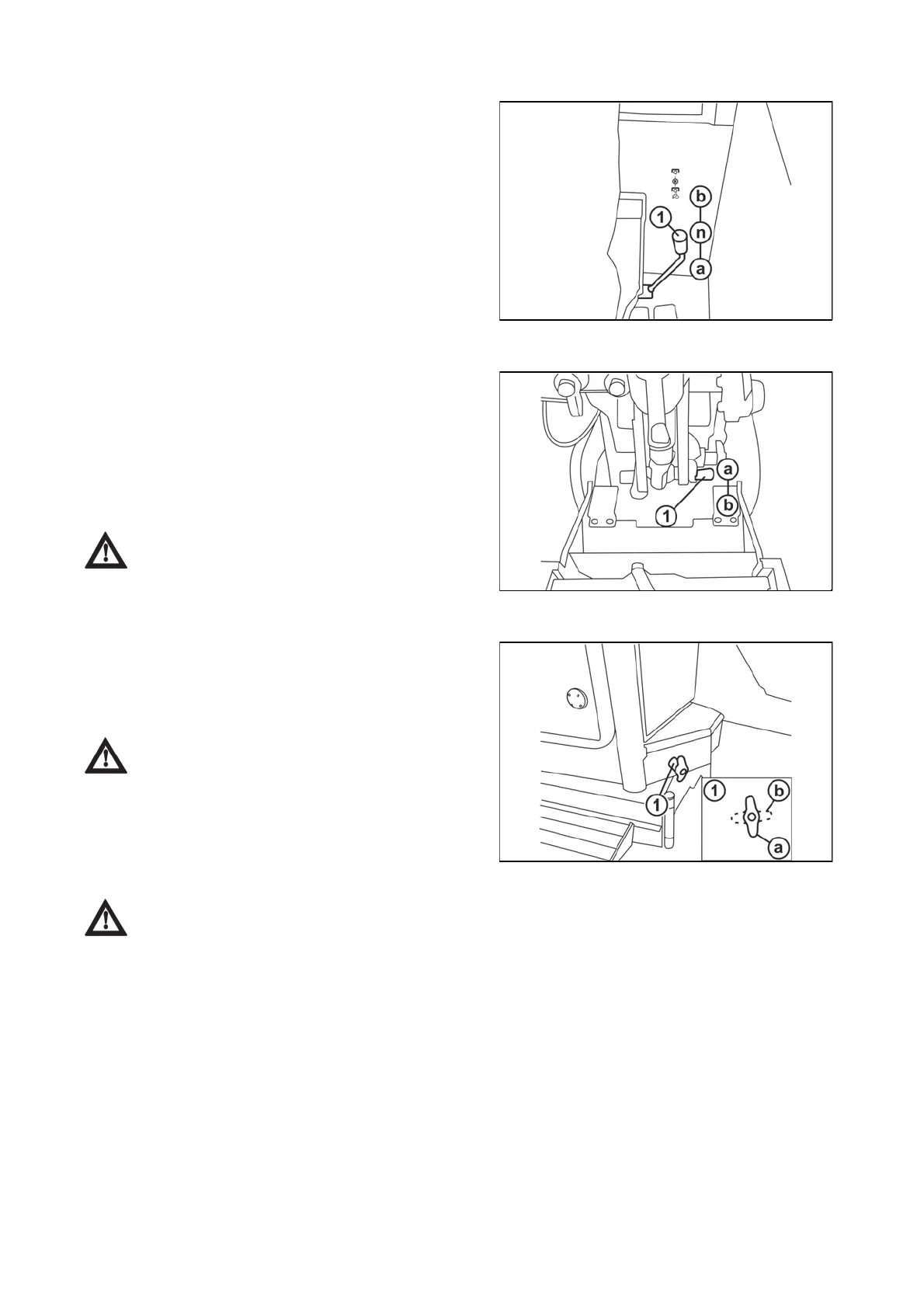

Rear PTO shaft is engaged by a lever (1) placed on the
left side of drive's seat.
a - Dependent revolutions of PTO shaft drive through gear
box - revolutions are dependent on the engaged gear
n - neutral position
b - Independent revolutions of PTO shaft drive -
revolutions are dependent on engine revolutions
Gear shifting is done with a tractor at standstill and
engaged manual clutch lever.
NM13N004
Shifting 540 or 1 000 revolutions of rear PTO shaft is done
with the lever (1) placed from the outside of the tractor
above the rear PTO shaft.
a - 540 rpm
b - 1 000 rpm
Gear shifting is done with the lever of PTO shaft drive
engagement in (n) position.
PTO shaft revolutions and the type of endpoint
need to be selected dependent on the prescribed
revolutions of the aggregated machine.
NM13N005
Battery disconnector (1) is placed on the right side of the
tractor in front of the cab.
a - Battery is connected
b - Battery is disconnected
With longterm dead parking, repairs, a failure,
or accident, disconnect the battery immediately by
battery disconnector.
NM13N049
