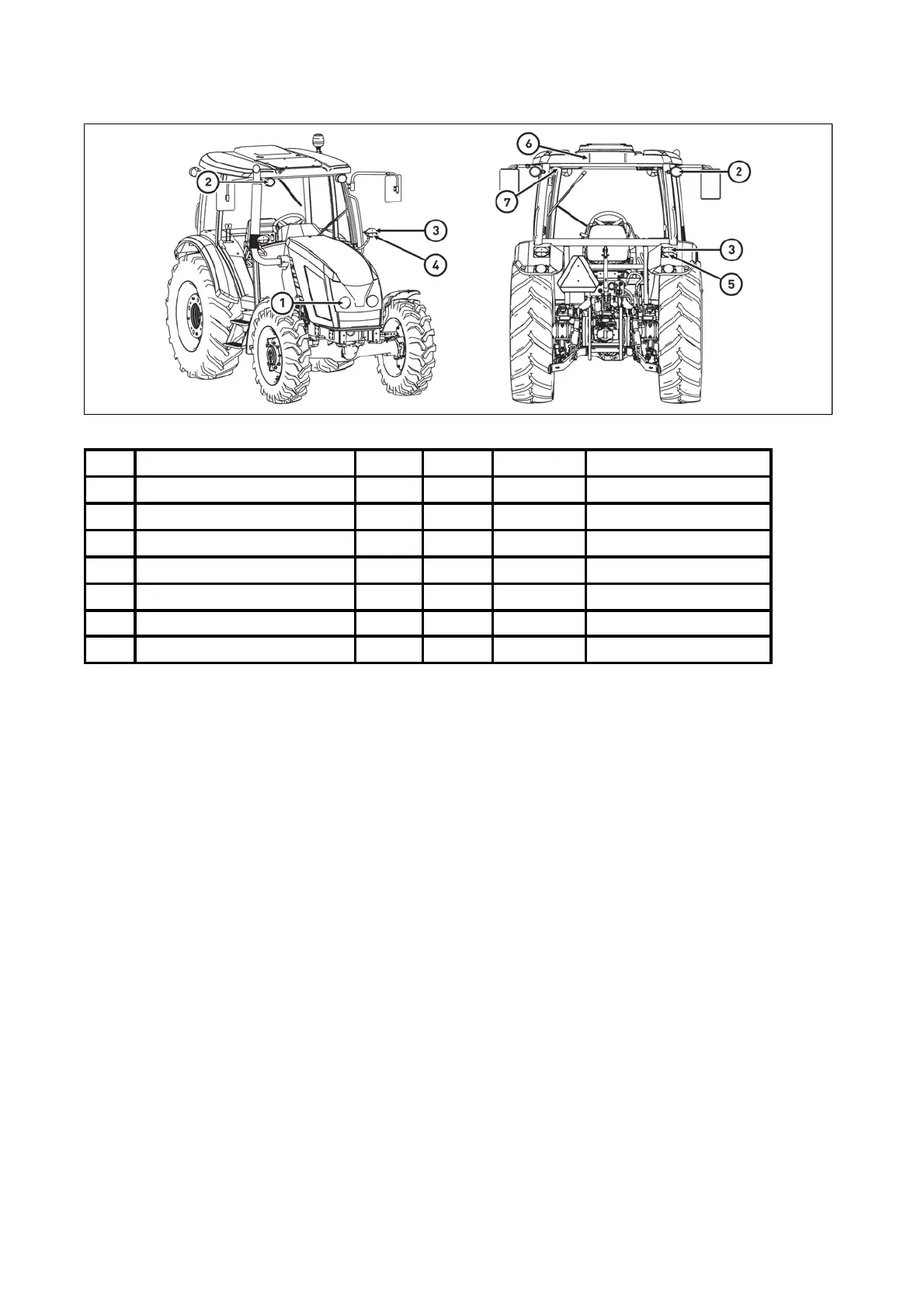

List of lamps
NM15D95
Pos.
Lamp location
Voltage
Output
Screw cap
Note
1
headlights
12 V
55/60 W
H4
2
work and ploughing
headlights
12 V
55 W
H3
3
direction lights
12 V
21 W
BA 15s
4
position lights
12 V
5 W
BA 15s
5
brake lights
12 V
5 /21W
BAY 15d
6
number plate lighting
12 V
5 W
C5W
7
cabin lighting
12 V
5 W
C5W
ELECTRIC INSTALLATION
96
96
98
