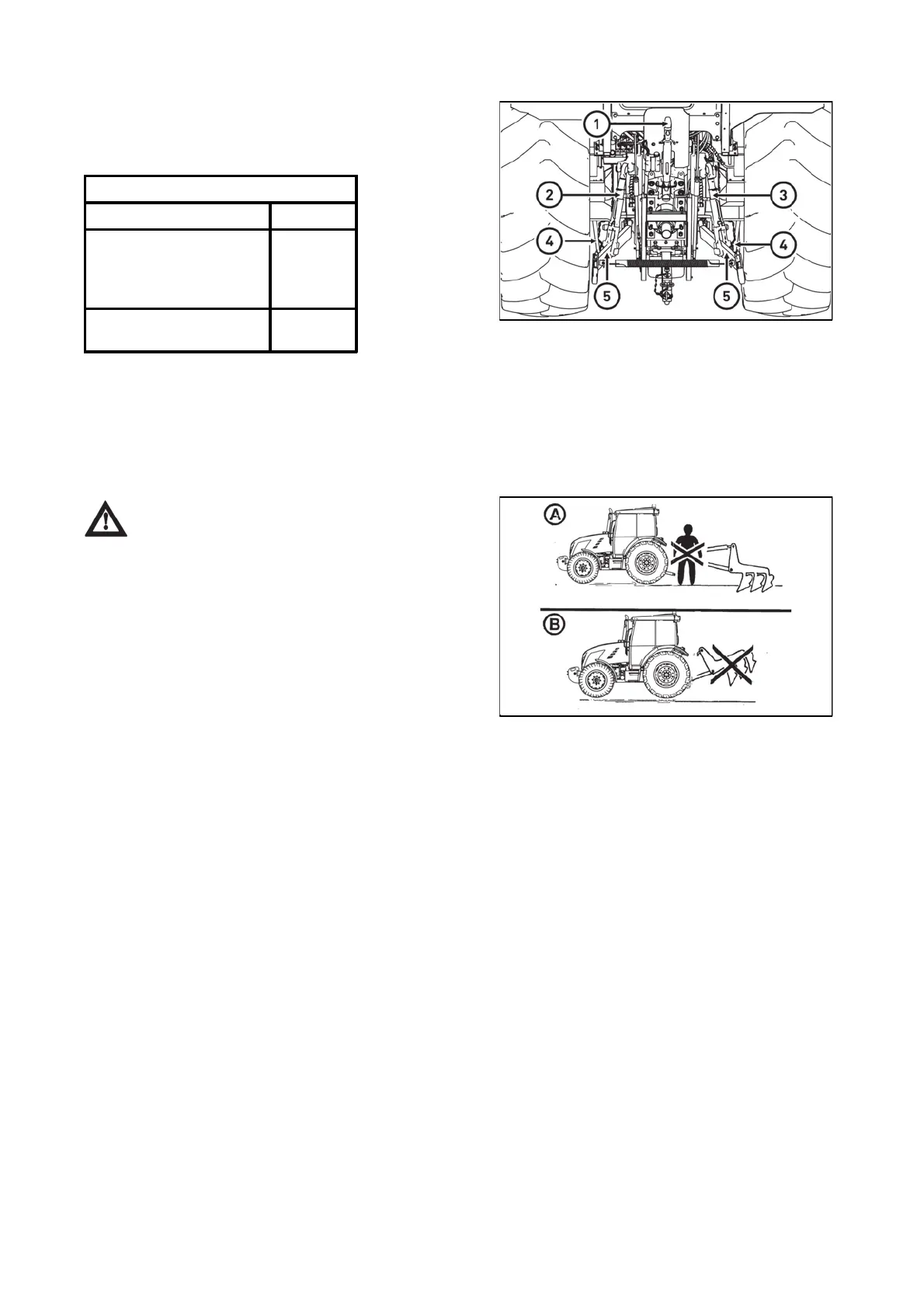

Rear three-point linkage
Safety principles when working with a three-point linkage
It is used for connection of the carried half-carried
agricultural machines and tools with hitch points of
category II according to ISO.
1. Upper pull rod
2. Lifting pull rod left
3. Lifting pull rod right
4. Limiting pull rods
5. Lower
ull rods
category II
hinge axis length 870 mm
diameter of holes of
connecting balls of the
lower pull rods according
to ISO
28 mm
hole diameter of upper
pull rod
25 mm
NM13N053
Persons who are not charged with work with
auxiliary device of a tractor must not stand between
a tractor and connected machinery (tools) - (A).
Do not park tractor with mounted tools in a lifted
osition
B
. When drivin
without tools it is neces-
sary to connect lower draw bars (5) by springs and
upper draw bars (1) to be placed to a flexible linkage!
When transporting tools it is necessary to adjust
limiting draw bars (4) of lower draw bars so that there
would be no unwanted side movement of tools!
NM13N102
