Rear window
Bottom rear window
Side window
Is equipped with a handle and in open position it is locked
by gas props.
By pushing the lever (1) downwards a flap of rear window
is released and by pressure on handle of rear window we
open the window.
When closing the rear window after pulling the window by
handle, the flap of the window snaps automatically.
When travelling on an uneven surface we
recommend to lock the window in a locked position -
there is a danger of window cracking.
When starting work with machines mounted in rear
three-point linkage of the tractor make sure that there
is no risk of collision between mounted tools with
maximum heave of rear three-point linkage and open
rear window. If there is collision we recommend
working with a closed window.

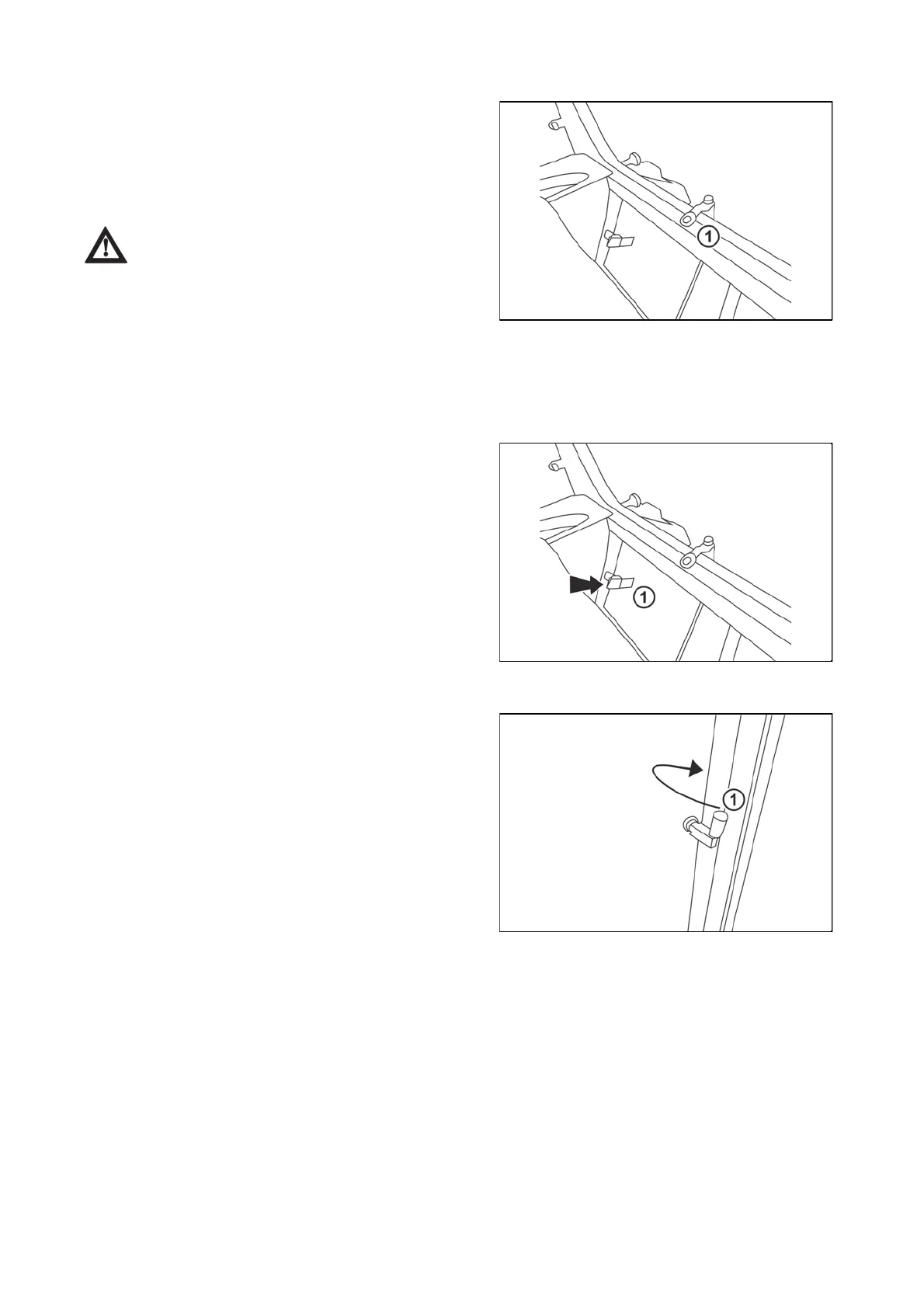

NM13N027
For opening the bottom rear window, it is necessary to
push the lever (1) in the direction of an arrow. Close the
window in reverse procedure, window flap will close
automatically.
NM13N028
For opening the side window it is necessary to shift the
lever (1) to the back and then in the direction of window in
direction of an arrow. Close the side window in opposite
way
NM13N029
ACQUAINTANCE WITH THE TRACTOR
