Information display - indication of activation of PTO shafts
MCL18N008

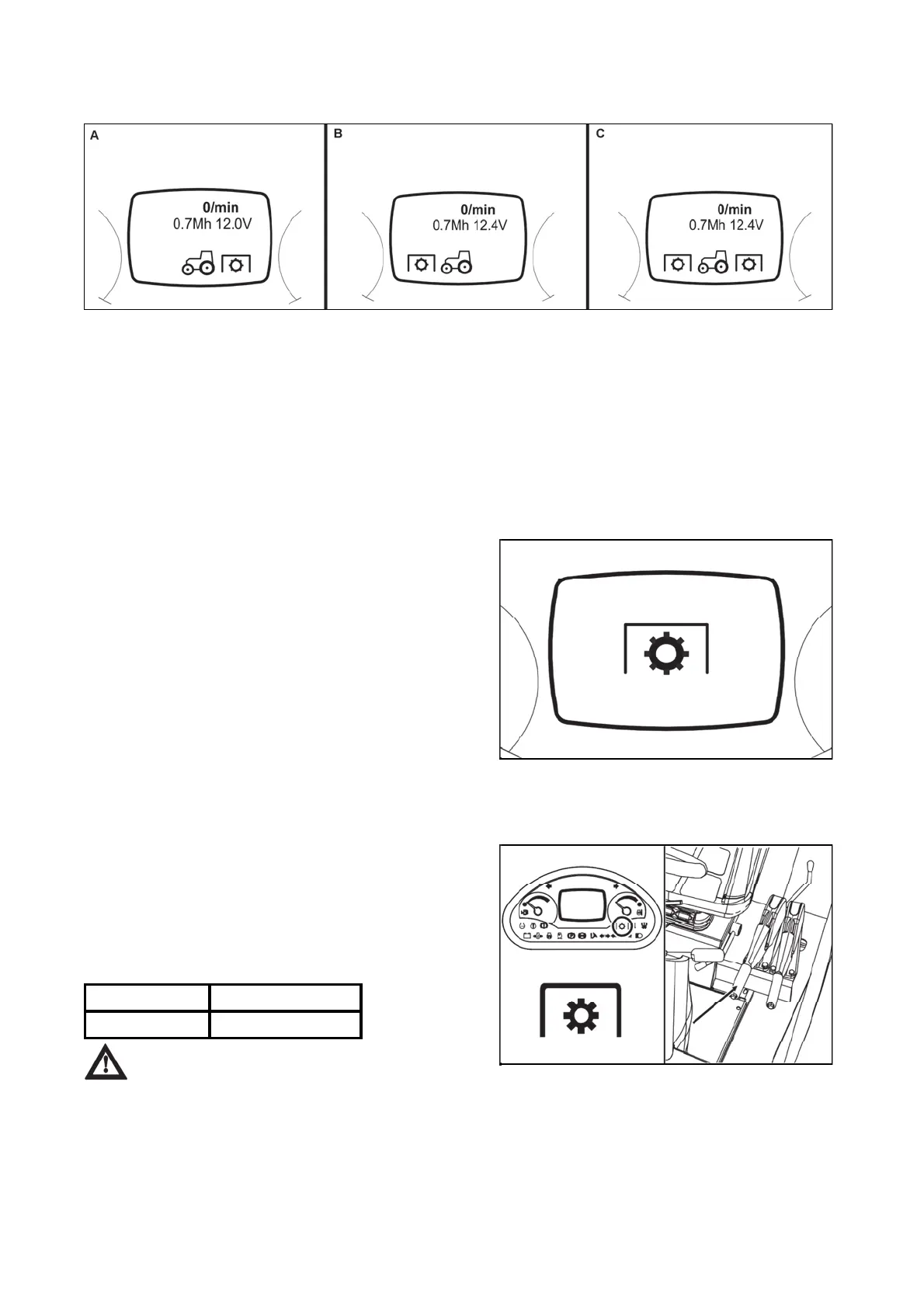

The activation of PTO shafts is indicated by the symbol on the display of the instrument panel.
A - activated rear PTO shaft
B - activated front PTO shaft
C - activated front and rear PTO shaft
The number of revolutions of PTO shafts is not displayed on the display of the instrument panel, but it is
presented in the chapter MAIN TECHNICAL PARAMETERS.
Information display - warning indication of PTO shafts
Control elements of PTO shafts
The clutch release lever of the manual deactivation of the rear PTO shaft
The PTO shaft symbol is displayed on the display of the
instrument panel in case that the engine will be switched
off afterwards due to wrong PTO shaft handling. Indication
of the PTO shaft symbol is accompanied by an acoustic
signal.
MCL18N010
By pulling manual clutch disengagement lever to upper
position, disengagement of PTO shaft clutch occurs. The
upper position of the lever is signalized by a lit control on
a dashboard. The lever is automatically locked with
a catch in the upper position. The lever can be unlocked
and return to the lower position by lifting the lever and
pressing the but-ton on the forefront of the lever.
If manual disengagement of the clutch lever is
ulled for a lon
er period of time, increased wear o
lamely of PTO shaft occurs.
Upper position - clutch disengaged
Lower position - clutch engaged
MCL18N024
DRIVE OF AGRICULTURAL MACHINERY
