Hydraulic control
Auxiliary hydraulic switchboard control
Pedals
Differential lock

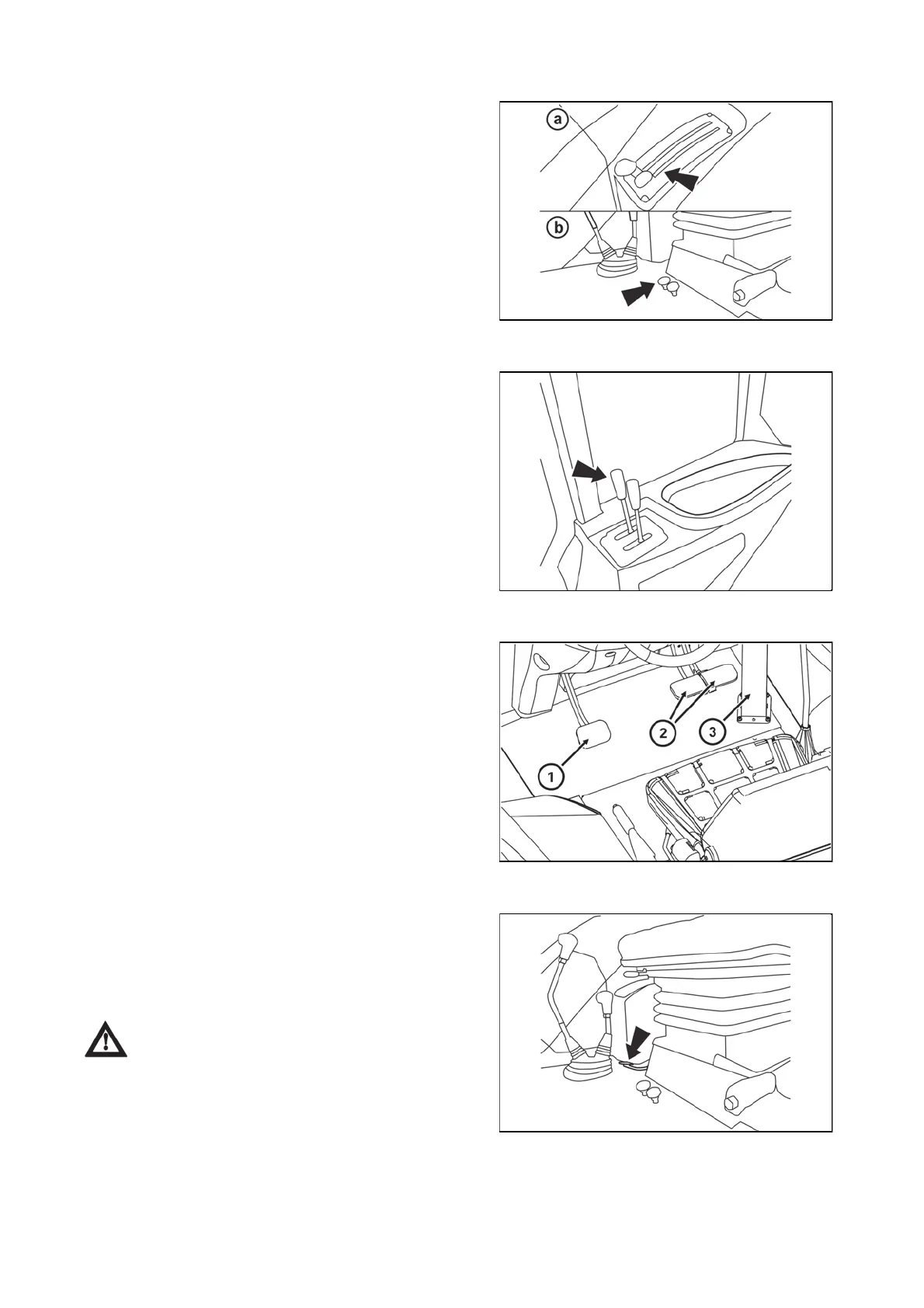

Hydraulic control panel with levers (A) is placed in the
area of right fender. Hydraulic controls (B) are placed in
front of driver's seat.
NM13N040
Auxiliary hydraulic switchboard control is placed on the
upper part of right fender.
NM13N042
1. travel clutch pedal
2. foot brake pedals connected with a flap
3. foot fuel supply control pedal
NM15N087
Differential lockis controlled by a pedal placed on the right
side of driver's seat.
Engaging differential lock is done by depressing a pedal,
for the time of pedal depression the lock is engaged, after
releasing the lock pedal, the pedal returns to its original
positional and the differential lock is disengaged.
When going through a bend, do not use
differential lock. Engage differential lock with low
engine revolutions.
NM13N043
ACQUAINTANCE WITH THE TRACTOR
