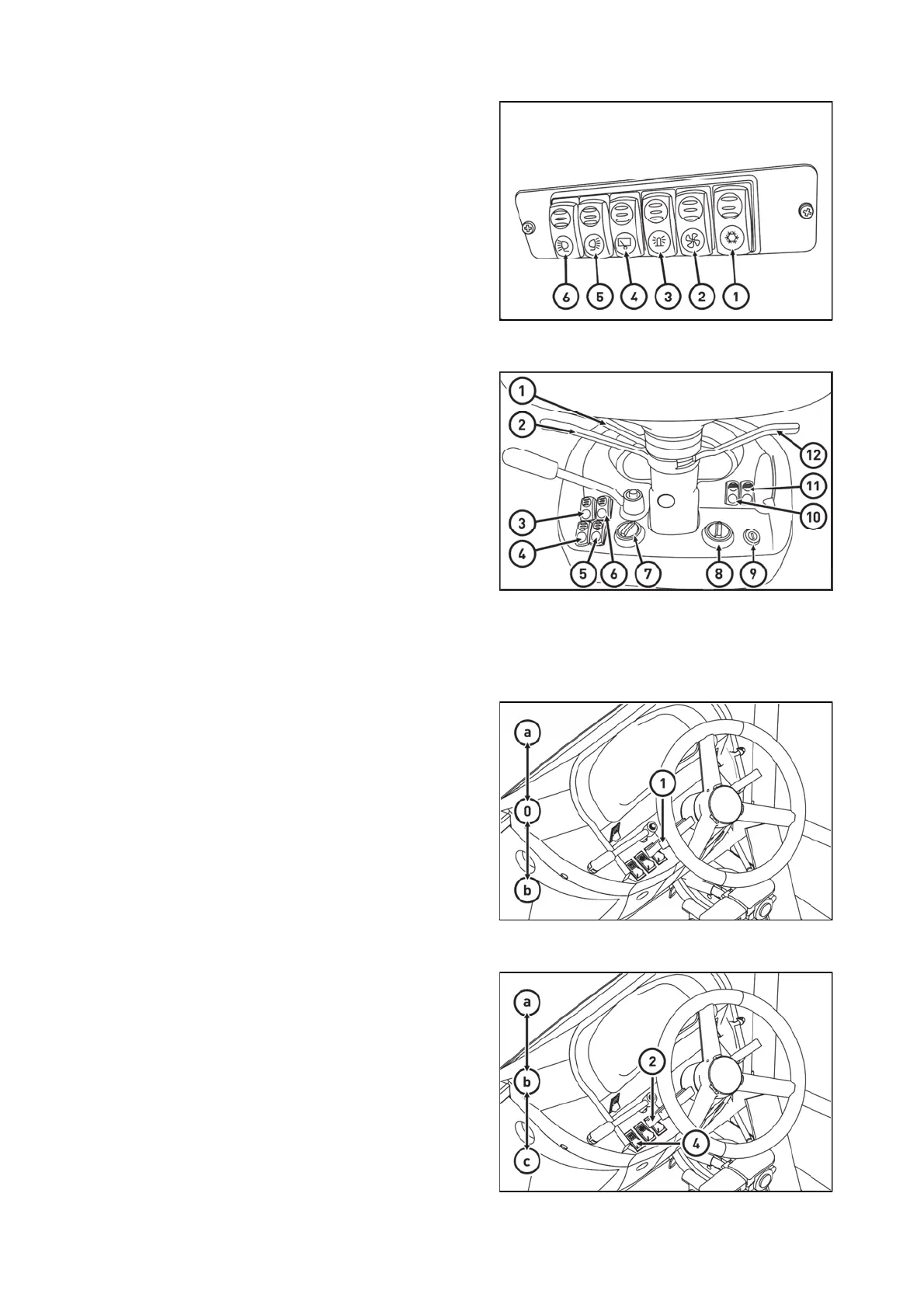

Panel of switches on cab´s roof
Switches and controls on the dashboard
Direction indicator switch
Headlights switch
1. Air conditioning switc
2. Air conditioning fan switch
3. Beacon switch
4. Rear wiper switch
5. Switch of the rear work lights in the cabin roof
6. Switch of the front work lights in the cabin roof
Note: The air conditioning can be operated only when the
air conditioning fan is on.
MCL18N003
1. Switch of direction lights
2. Change-over switch of main lights
3. Switch of warning lights
4. Switch of main lights
5. Front drive switch. More information in chapter
DRIVING.
6. Switch of the fog lamp (off - on). The function of the fog
lamp is indicated with the activated symbol on the switch
7. Heating switch
8. Valve heating controller
9. Switch box
10. The button for temporary deactivation of brakes of the
trailer. More information in chapter DRIVING.
11. The clutch switch of the front PTO shaft. More
information in chapter POWER OF AGRICULTURAL
MACHINES
12. Switch of the front wiper and windshield washer
MCL18N001
Direction lights are turned off by the movement of a switch
(1) to position (a) or (b)
a - direction lights to the right
b - direction lights to the left
NM14D031
The main lights are switched by a switch (2) after
switching on the main lights in the grill of the bonnets by
a switch (4).
a - side lights
b - dipped lights
c - headlights
After pulling the switch lever (2) to the steering wheel,
acoustic horn is engaged.
NM14D032
ACQUAINTANCE WITH THE TRACTOR
