Overview
25
1SVC 440 795 M0100

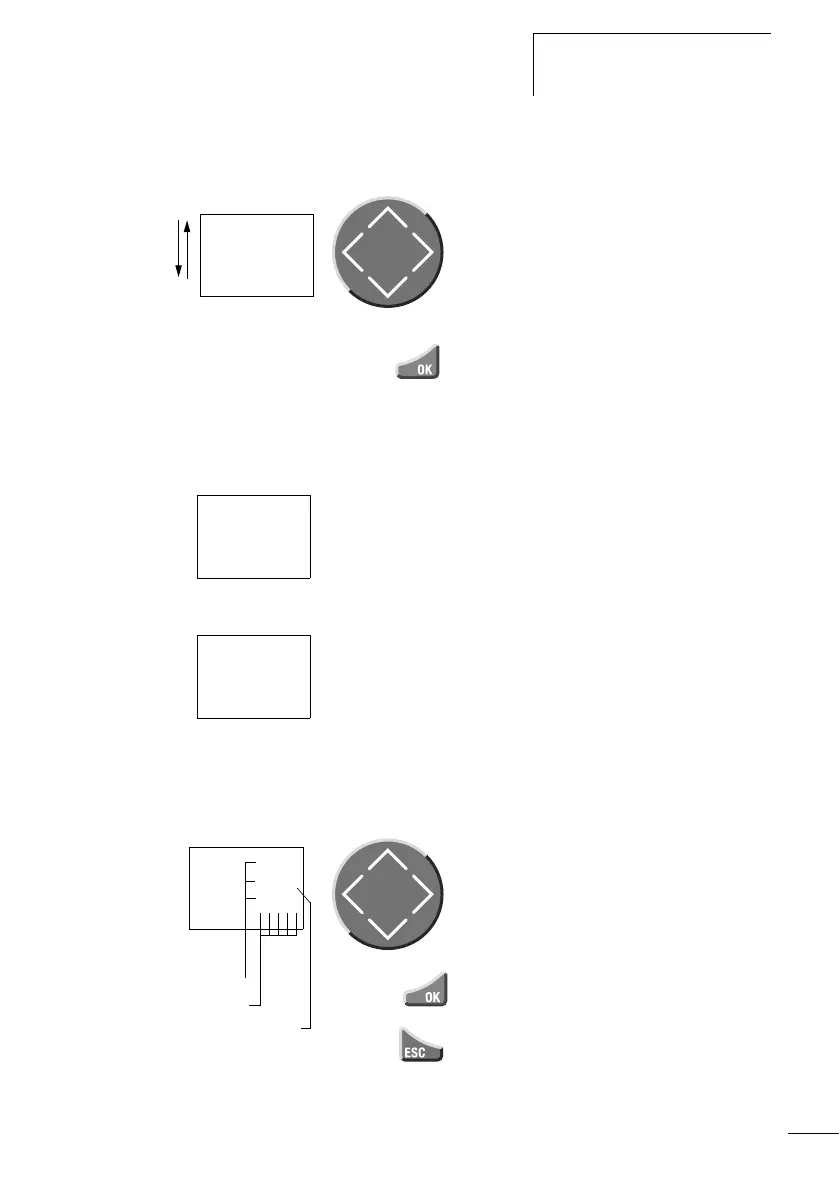

Selecting or toggling between menu items
Cursor display
Set value
Cursor
Í Ú
Select or toggle
PROGRAM...
STOP
PARAMETER
INFO
The cursor flashes.
Full cursor
Ê/:
• Move cursor with
ú í,
• in circuit diagram also with
Í Ú
Value M/ M
• Change position with ú í
• Change values with Í Ú
Flashing values/menus are shown in grey in this manual.
HH:MM '4:23
DD.MM 17.03
YEAR 2004
HH:MM 14:23
DD.MM 17.03
YEAR 2004
Select value Í Ú
Select digit ú í
Change value at digit Í Ú
Store entry
Retain previous value
Current value at the
position (can be
changed, Cursor = 3)
HH:MM 14:23
DD.MM 17.03
YEAR 2004
Values
Digits
