Trip value rec
Sequential of
events
Event recorder
Indications
Disturbance
recorder
A1-4RADR
B1-6RBDR
Disturbance Report
Binary signals
Analog signals
A4RADR
B6RBDR
DRPRDRE
ANSI09000337-1-en.vsd
ANSI09000337 V1 EN

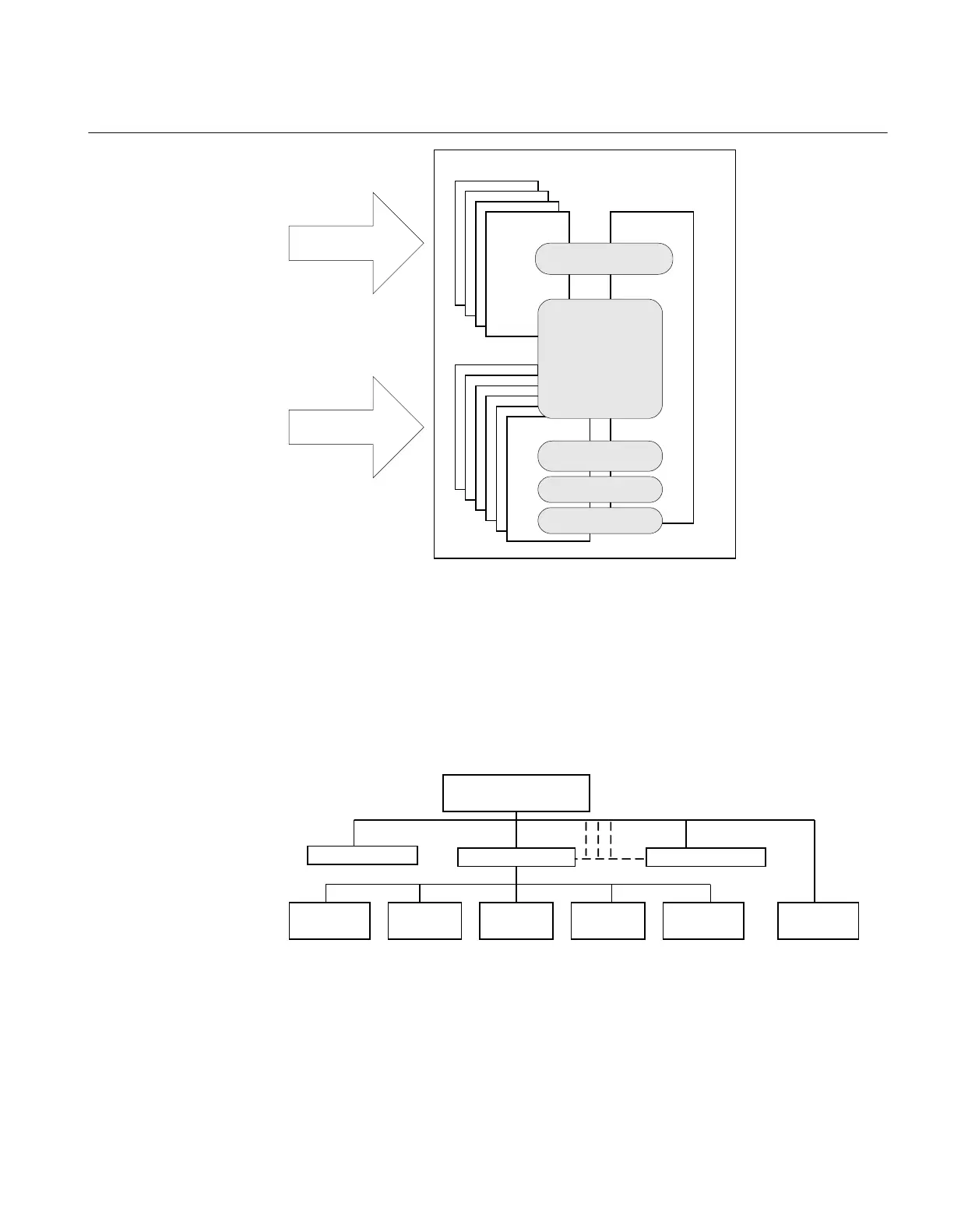

Figure 216: Disturbance report functions and related function blocks
The whole disturbance report can contain information for a number of recordings, each
with the data coming from all the parts mentioned above. The sequential of events
function is working continuously, independent of disturbance triggering, recording time,
and so on. All information in the disturbance report is stored in non-volatile flash
memories. This implies that no information is lost in case of loss of auxiliary power. Each
report will get an identification number in the interval from 0-999.
en05000161_ansi.vsd
Disturbance report
Record no. N
Record no. N+1 Record no. N+100
General dist.
information
Indications
Trip
values
Event
recordings
Disturbance
recording
Event list
(SOE)
ANSI05000161 V1 EN
Figure 217: Disturbance report structure
1MRK 511 287-UUS A Section 12
Monitoring
481
Technical manual
