The LHMI is used for setting, monitoring and controlling.
5.1 Display
The LHMI includes a graphical monochrome liquid crystal display (LCD) with a
resolution of 320 x 240 pixels. The character size can vary. The amount of characters
and rows fitting the view depends on the character size and the view that is shown.
The display view is divided into four basic areas.
IEC15000270 V1 EN

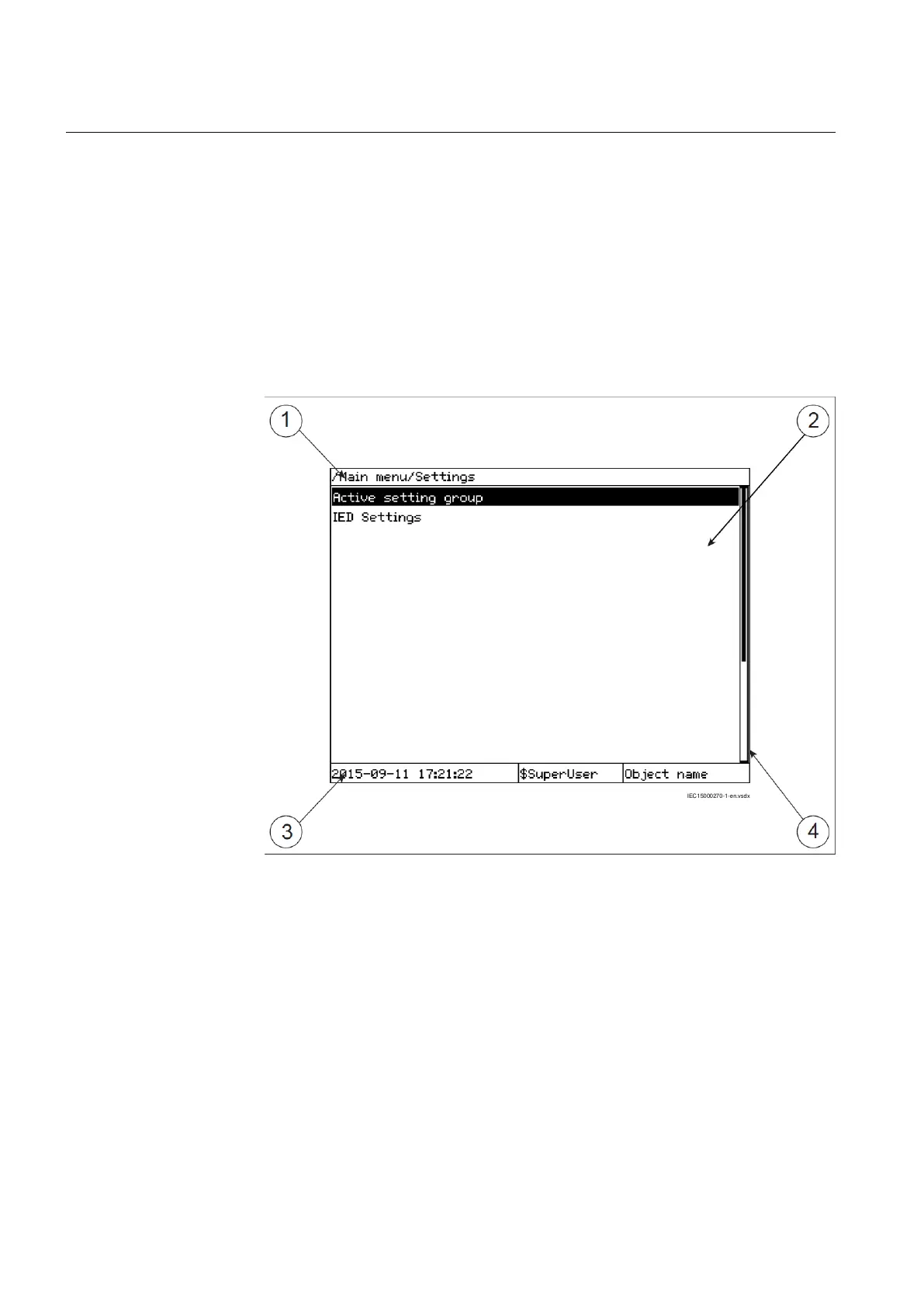

Figure 32: Display layout
1
Path
2 Content
3 Status
4 Scroll bar (appears when needed)
The function key button panel shows on request what actions are possible with the
function buttons. Each function button has a LED indication that can be used as a
Section 5 1MRK 502 071-UEN -
Local HMI
94 Generator protection REG670 2.2 IEC and Injection equipment REX060, REX061, REX062
Application manual
