slipping with severe consequences for the machines and stability of the power system.
In particular it should:
1. Remain stable for normal steady state load.
2. Distinguish between stable and unstable rotor swings.
3. Locate electrical centre of a swing.
4. Detect the first and the subsequent pole-slips.
5. Prevent stress on the circuit breaker.
6. Distinguish between generator and motor out-of-step conditions.
7. Provide information for post-disturbance analysis.
8.5.3 Setting guidelines
The setting example for generator protection application shows how to calculate the
most important settings ForwardR, ForwardX, ReverseR, and ReverseX.

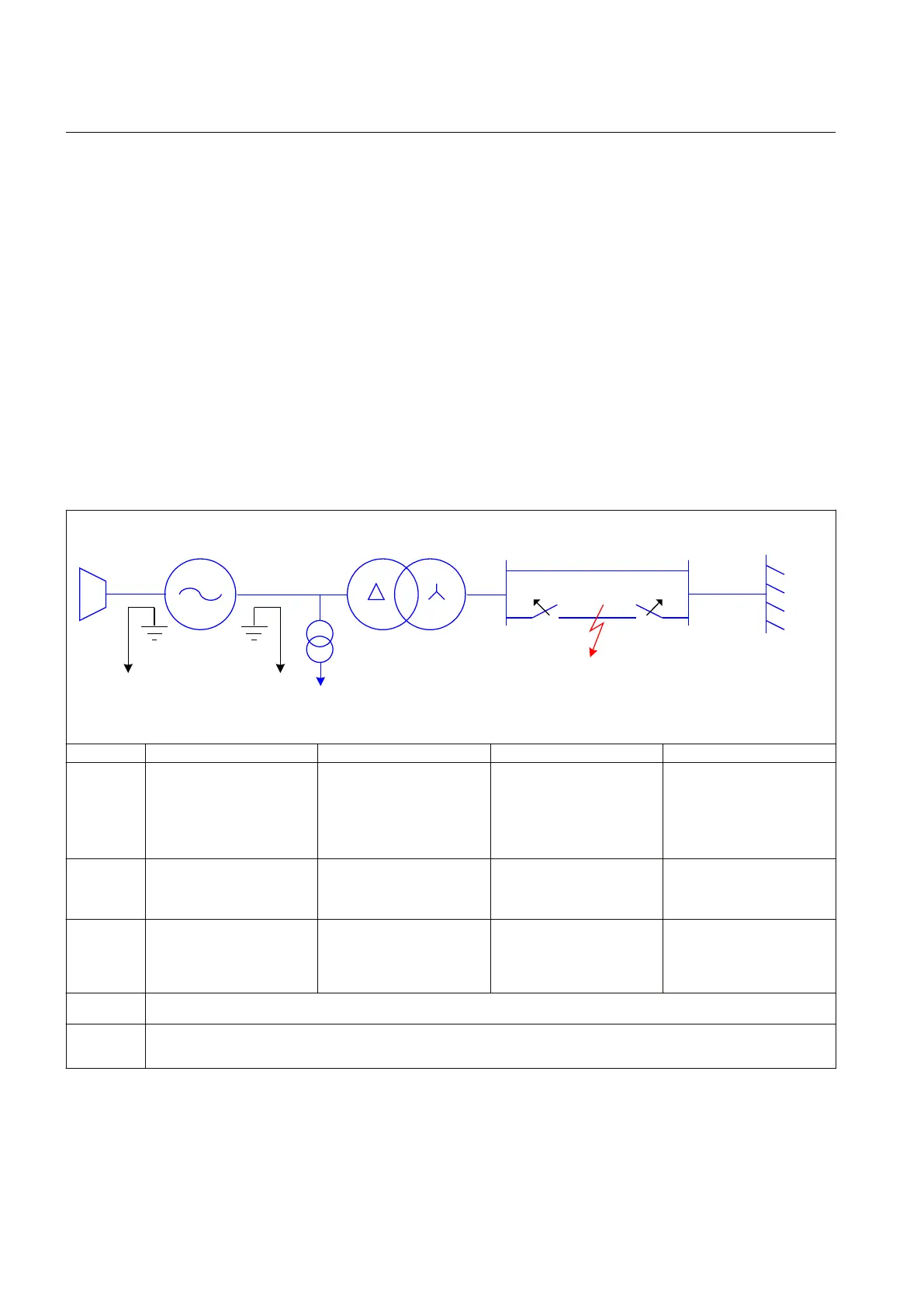

Table 29: An example how to calculate values for the settings ForwardR, ForwardX, ReverseR, and ReverseX
Turbine
(hydro)
Generator
200 MVA
Transformer
300 MVA
Double power line
230 kV, 300 km
Equivalent
power
system
CT 1
To OOS relay
CT 2
13.8 kV
IEC10000117-2-en.vsd
to OOS relay
IEC10000117 V2 EN
Generator Step-up transformer Single power line Power system
Data
required
UBase = Ugen = 13.8 kV
IBase = Igen = 8367 A
Xd' = 0.2960 pu
Rs = 0.0029 pu
U1 = 13.8 kV
U2 = 230 kV
usc = 10%
I1 = 12 551 A
Xt = 0.1000 pu (transf. ZBase)
Rt = 0.0054 pu (transf. ZBase)
Uline = 230 kV
Xline/km = 0.4289 Ω/km
Rline/km = 0.0659 Ω/km
Unom = 230 kV
SC level = 5000 MVA
SC current = 12 551 A
φ = 84.289°
Ze = 10.5801 Ω
1-st step in
calculation
ZBase = 0.9522 Ω (generator)
Xd' = 0.2960 · 0.952 = 0.282 Ω
Rs = 0.0029 · 0.952 = 0.003 Ω
ZBase (13.8 kV) = 0.6348 Ω
Xt = 0.100 · 0.6348 = 0.064 Ω
Rt = 0.0054 · 0.635 = 0.003 Ω
Xline = 300 · 0.4289 = 128.7 Ω
Rline = 300 · 0.0659 = 19.8 Ω
(X and R above on 230 kV basis)
Xe = Z
e
· sin (φ) = 10.52 Ω
Re = Z
e
· cos (φ) = 1.05 Ω
(Xe and Re on 230 kV basis)
2-nd step in
calculation
Xd' = 0.2960 · 0.952 = 0.282 Ω
Rs = 0.0029 · 0.952 = 0.003 Ω
Xt = 0.100 · 0.6348 = 0.064 Ω
Rt = 0.0054 · 0.635 = 0.003 Ω
Xline= 128.7 · (13.8/230)
2
=
0.463 Ω
Rline = 19.8 · (13.8/230)
2
= 0.071
Ω
(X and R referred to 13.8 kV)
Xe = 10.52 · (13.8/230)
2
= 0.038
Ω
Re = 1.05 · (13.8/230)
2
= 0.004 Ω
(X and R referred to 13.8 kV)
3-rd step in
calculation
ForwardX = Xt + Xline + Xe = 0.064 + 0.463 + 0.038 = 0.565 Ω; ReverseX = Xd' = 0.282 Ω (all referred to gen. voltage 13.8 kV)
ForwardR = Rt + Rline + Re = 0.003 + 0.071 + 0.004 = 0.078 Ω; ReverseR = Rs = 0.003 Ω (all referred to gen. voltage 13.8 kV)
Final
resulted
settings
ForwardX = 0.565/0.9522 · 100 = 59.33 in % ZBase; ReverseX = 0.282/0.9522 · 100 = 29.6 in % ZBase (all referred to 13.8 kV)
ForwardR = 0.078/0.9522 · 100 = 8.19 in % ZBase; ReverseR = 0.003/0.9522 · 100 = 0.29 in % ZBase (all referred to 13.8 kV)
Settings ForwardR, ForwardX, ReverseR, and ReverseX.
