able to communicate. More information is available in the sections Short guidance for
the use of TCP and Short guidance for the use of UDP.
PMUREPORT: 1 PMUREPORT: 2
PMU ID: X
PMU ID: Y
TCP IP
TCP Port
TCP Client_1
TCP Client_2
TCP Client_3
TCP Client_4
TCP Client_5
TCP Client_6
TCP Client_7
TCP Client_8
UDP Client Group_1
UDP Client Group_2
UDP Client Group_3
UDP Client Group_4
UDP Client Group_5
UDP Client Group_6
UDP 1
UDP 2
UDP 3
UDP 4
UDP 5
UDP 6
PMUREPORT Instance: 1 or 2
PMUREPORT Instance: 1 or 2
PMUREPORT Instance: 1 or 2
PMUREPORT Instance: 1 or 2
PMUREPORT Instance: 1 or 2
PMUREPORT Instance: 1 or 2
IED
1344/C37.118
1344/C37.118
1344/C37.118
1344/C37.118
1344/C37.118
1344/C37.118
1344/C37.118
1344/C37.118
1344/C37.118
Unicast/Multicast
1344/C37.118
Unicast/Multicast
1344/C37.118
Unicast/Multicast
1344/C37.118
Unicast/Multicast
1344/C37.118
Unicast/Multicast
1344/C37.118
Unicast/Multicast
PMU ID
PMU ID
IEC140000117-1.en.vsd
IEC140000117 V2 EN

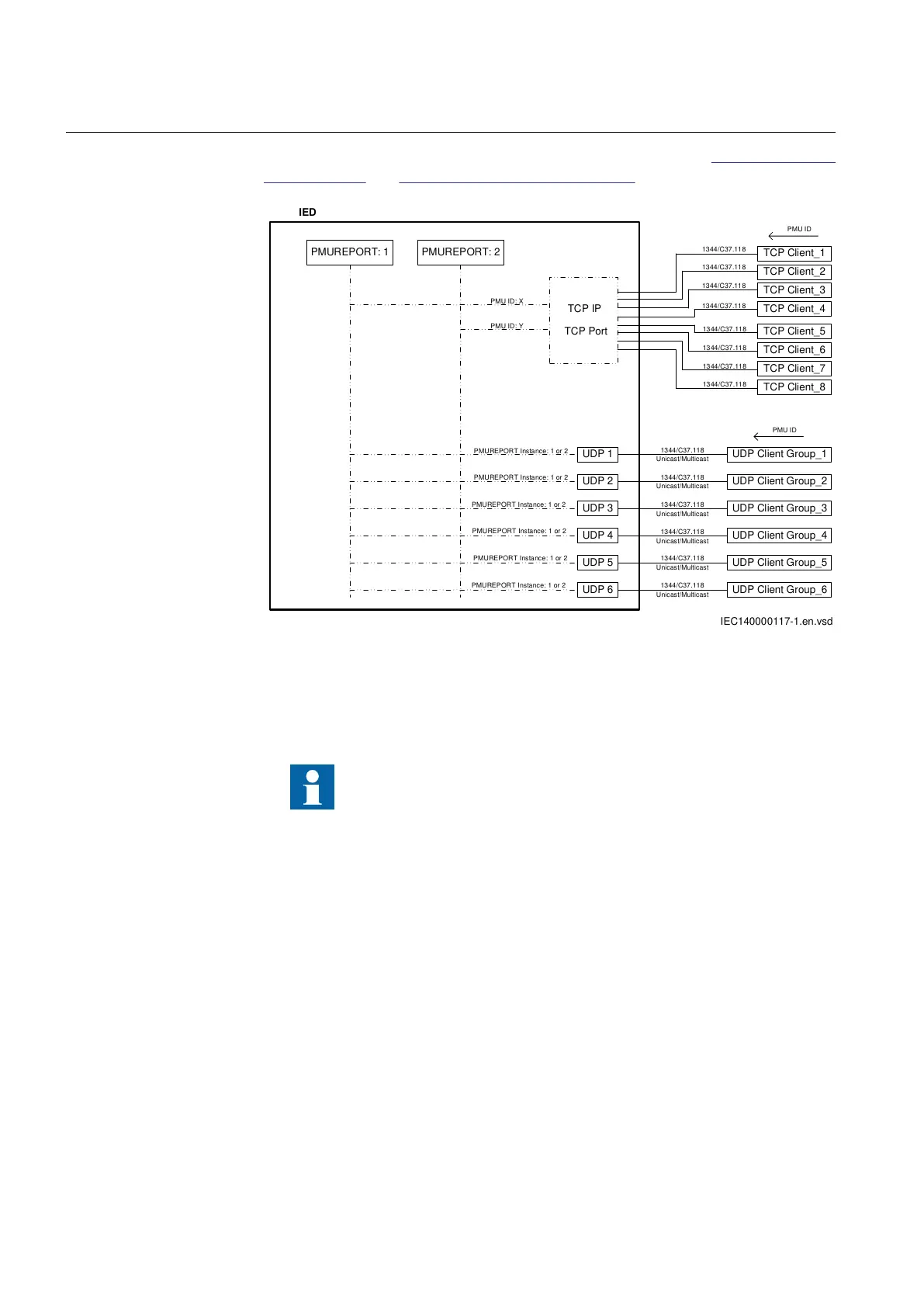

Figure 38: The communication configuration (PMUCONF) structure in the IED
6.1.3.1 Short guidance for use of TCP
Port 7001 is used by the SPA on TCP/IP (field service tool). If the port
is used for any other protocol, for example C37.118, the SPA on TCP/
IP stops working.
The IED supports 8 concurrent TCP connections using IEEE1344 and/or C37.118
protocol. The following parameters are used to define the TCP connection between
the IED and the TCP clients:
1. 1344TCPport– TCP port for control of IEEE 1344 data for TCP clients
2. C37.118TCPport – TCP port for control of IEEE C37.118 data for TCP clients
As can be seen, there are two separate parameters in the IED for selecting port
numbers for TCP connections; one for IEEE1344 protocol (1344TCPport) and
another one for C37.118 protocol (C37.118 TCPport). Client can communicate with
the IED over IEEE1344 protocol using the selected TCP port defined in
1344TCPport, and can communicate with the IED over IEEE C37.118 protocol using
the selected TCP port number in C37.118TCPport.
Section 6 1MRK 502 071-UEN -
Wide area measurement system
104 Generator protection REG670 2.2 IEC and Injection equipment REX060, REX061, REX062
Application manual
