Version 7.0 19 Mediant 3000
Hardware Installation Manual 3. Physical Description
A chassis slot assignment example for Mediant 3000 HA with TP-6310 is shown in the
figure below:

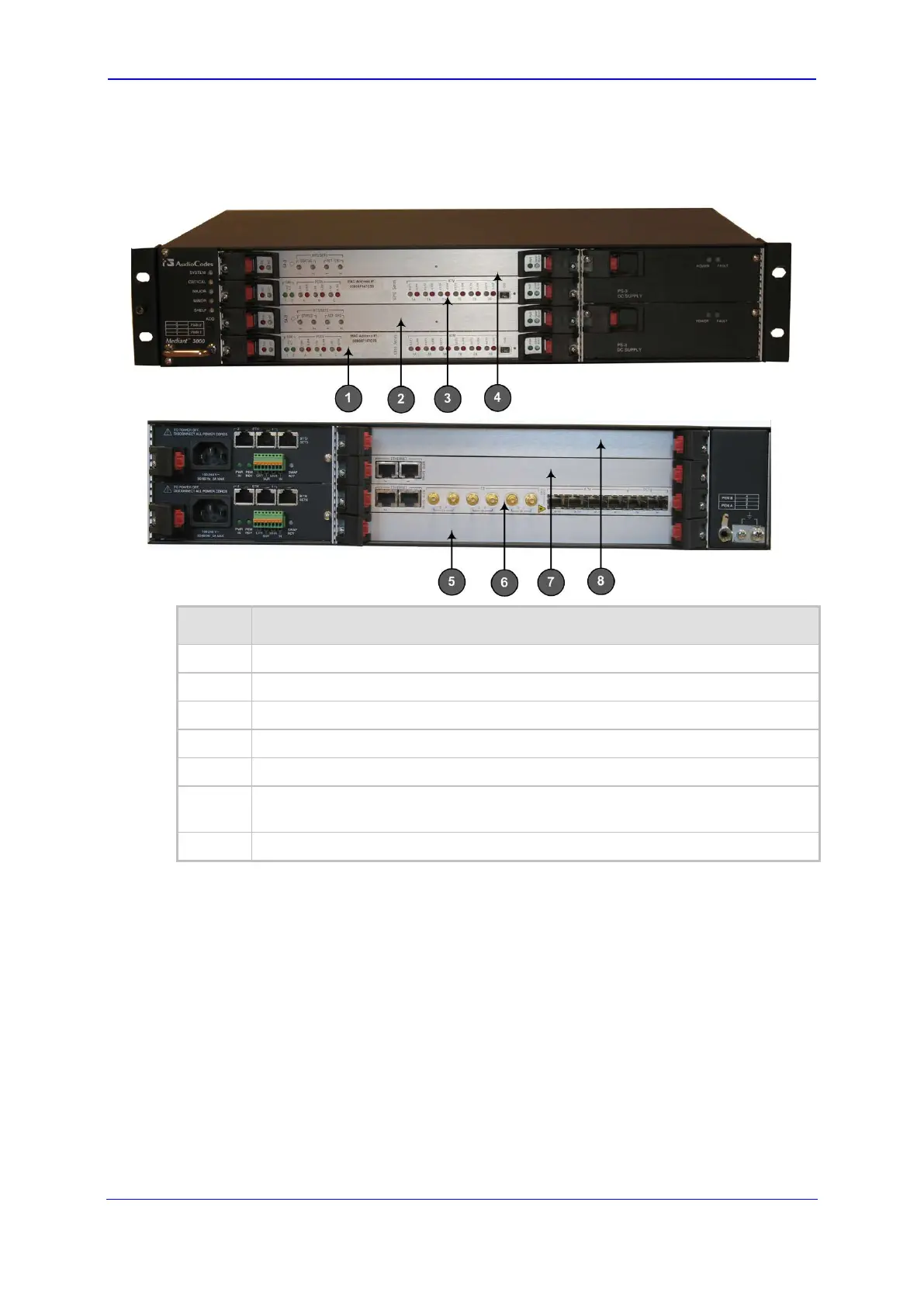

Figure 3-4: Slot Assignment for Mediant 3000 HA with TP-6310 Blades
Item # Description
1
Front panel Slot #1 - Active TP-6310 blade
2
Front panel Slot #2 - Active SA/M3K blade
3
Front panel Slot #3 - Standby (redundant) TP-6310 blade
4
Front panel Slot #4 - Standby (redundant) SA/M3K blade
5, 8
Blank panels covering unoccupied slots
6
Rear panel Slot #2 - RTM-6310 providing STM-1/OC-3 or T3 interfaces, and
dual GbE interfaces
7
Rear panel Slot #3 - RTM-6310 Redundant, providing dual GbE interfaces
